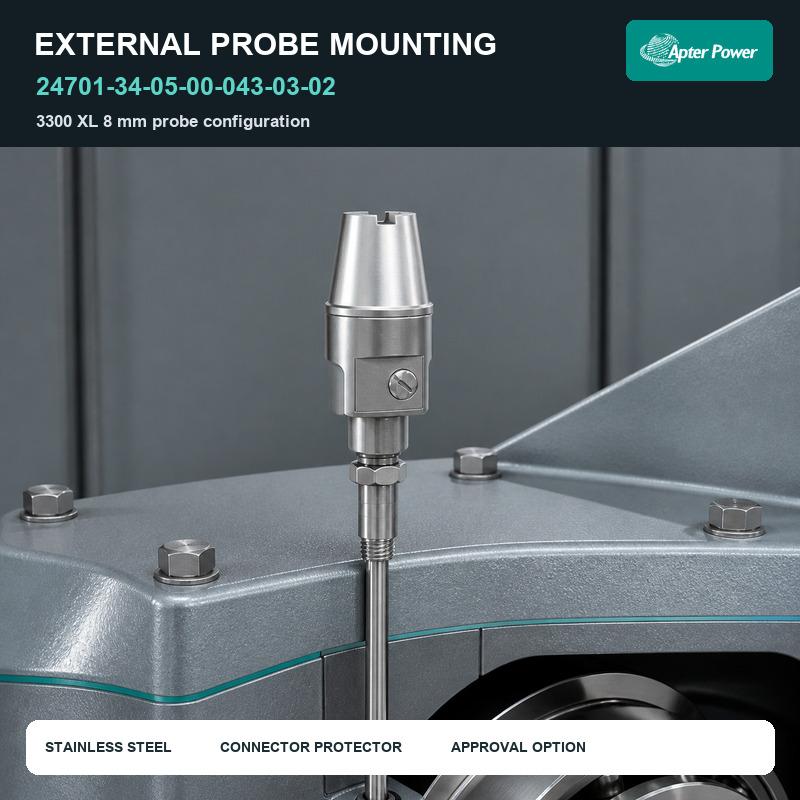

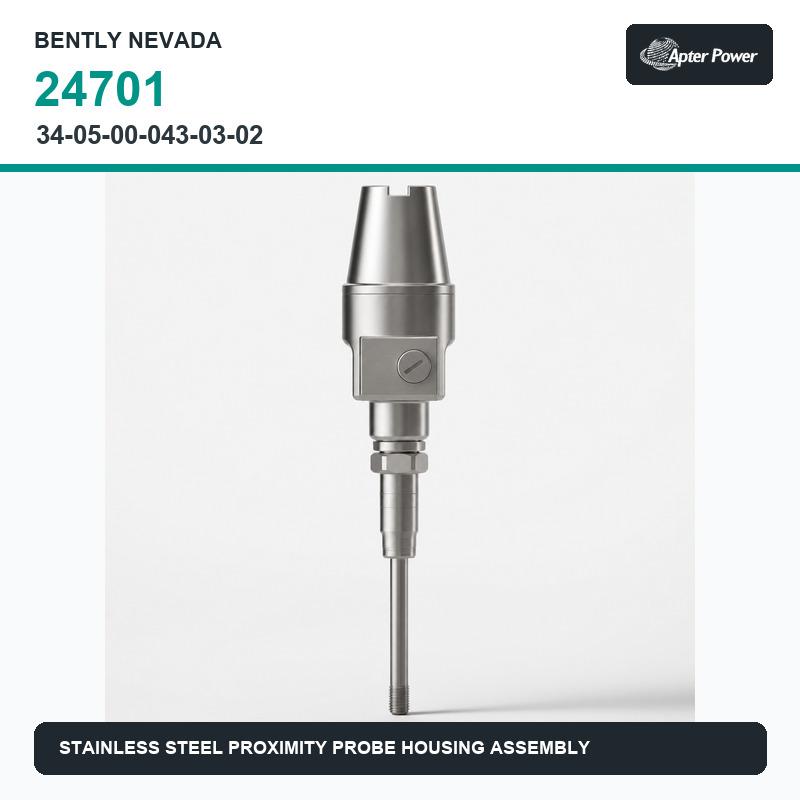

Bently Nevada 24701-34-05-00-043-03-02 is a stainless-steel proximity probe housing assembly configured with a 3300 XL 8 mm reverse-mount probe, connector protector and approval option. This order code specifies a 0.5 m probe cable, no standoff adapter, 4.3 in probe penetration, option 03 fittings, and a 3/4-14 NPT mounting thread.
Availability: In stock | MOQ: 1 | Payment: T/T | Price: Inquiry required
Item NO.:
24701-34-05-00-043-03-02Order(MOQ):
1Goods Stock:
9Payment:
T/TLead Time：
in stockWeight：
1800Weight:
1.8 kg typical, without fittingsDimension:
A 78.2 mm; B 151.9 mm; E 27.9 mm; penetration 4.3 inDescription:
Stainless steel proximity probe housing assemblyPrice:
Inquiry required24701-34-05-00-043-03-02 is a stainless-steel proximity probe housing assembly for external mounting of a reverse-mount proximity probe. Every technical detail below is decoded from the official Baker Hughes / Bently Nevada ordering information.

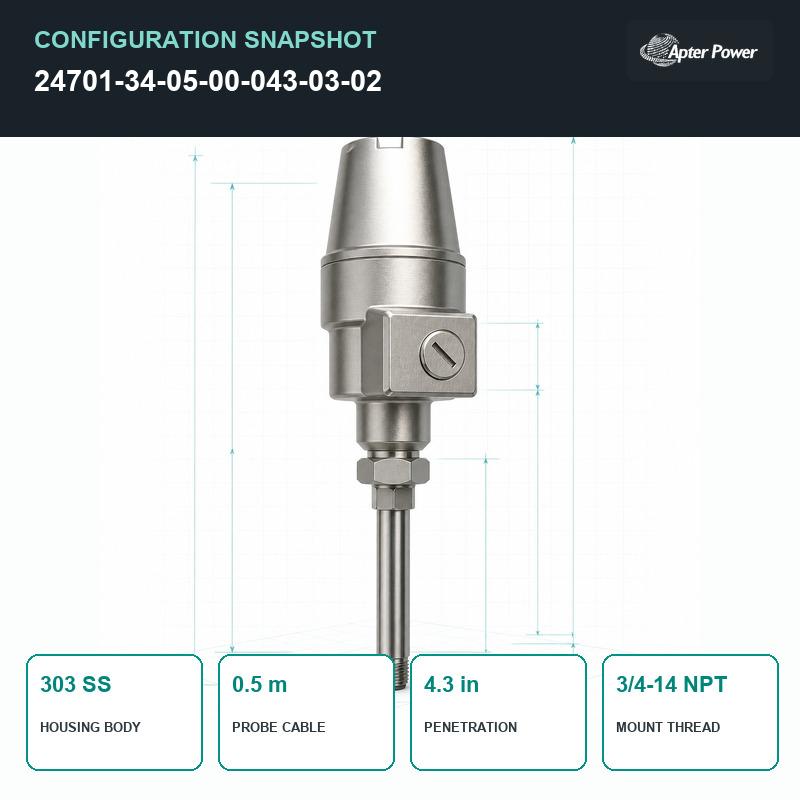

| Segment | Official configuration |
|---|---|
| 24701 | Stainless-steel Proximity Probe Housing Assembly |
| A = 34 | 3300 XL 8 mm probe with connector protector and approval option |
| B = 05 | 0.5 m (20 in) probe cable |
| C = 00 | No standoff adapter |
| D = 043 | 4.3 in (approximately 109 mm) probe penetration |
| E = 03 | 3/4-14 NPT plug, 3/4-14 to 1/2-14 NPT reducer, cable seal grip and three cable-size grommets |
| F = 02 | 3/4-14 NPT mounting thread |
| Housing body | 303 stainless steel |
| Sleeve | 304 stainless steel |
| Typical weight | 1.8 kg (4.1 lb), without fittings |
| Fixed dimensions | A 78.2 mm (3.08 in); B 151.9 mm (5.97 in); E 27.9 mm (1.10 in) |
| Probe temperature range | -51 °C to +177 °C, operating and storage |
| Housing elements | Screw-on dome cover, threaded conduit ports, sleeve, O-rings, reverse-mount probe and thread seal |
A = 34 specifies a 3300 XL 8 mm probe with connector protector and an approval option. System compatibility must still be verified across the probe, extension cable and Proximitor / sensor using the complete ordering and approval codes.
Verify the 0.5 m cable, no-standoff arrangement, 4.3 in penetration, option 03 fittings and 3/4-14 NPT mounting thread. The official fixed body dimensions are A 78.2 mm, B 151.9 mm and E 27.9 mm; confirm the casing/thread interface before ordering.
This code includes an approval option, but a standard 24701 must not automatically be treated as a CA24701 explosion-proof configuration. The official documentation reserves CSA explosion-proof classification for CA24701 configurations with permitted options. Confirm the site approval requirements for the complete installed system.
Technical information is based solely on the official Baker Hughes / Bently Nevada 21000 and 24701 Proximity Probe Housing Assemblies datasheet.
All products are covered by Apter's 1 Year Warranty from the date of shipment, subject to our standard warranty terms. Please contact us with the product model, serial information and issue details for support.
Product names and trademarks are used for identification purposes only. Apter is not an authorized distributor of the manufacturer.
Official Baker Hughes / Bently Nevada technical reference for the 21000 and 24701 Proximity Probe Housing Assemblies:
Open Official 24701 Datasheet (PDF)
