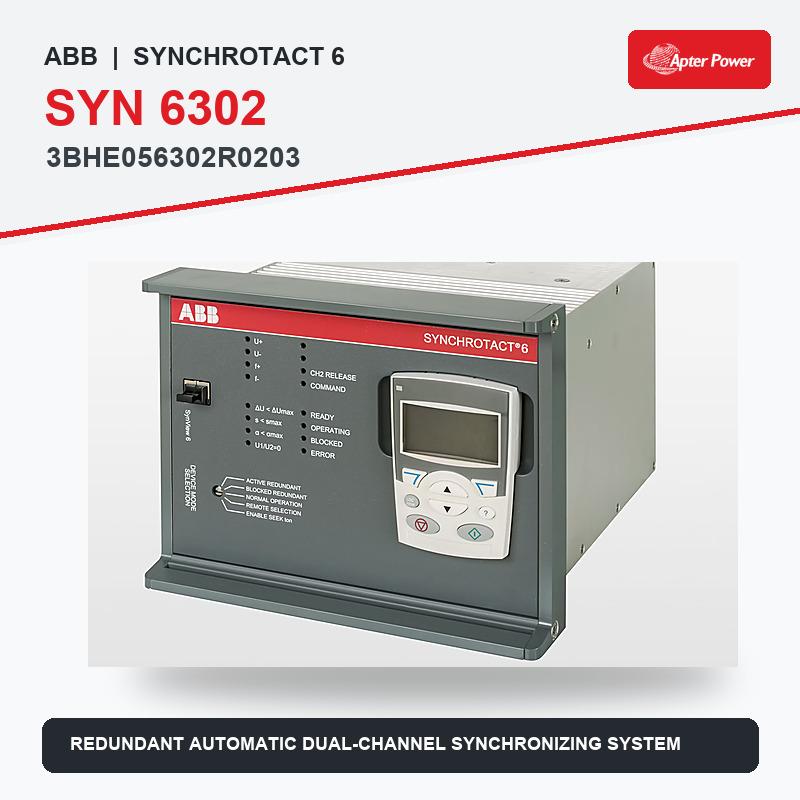

ABB SYN 6302 3BHE056302R0203 is a SYNCHROTACT 6 redundant automatic dual-channel synchronizing system. It combines two independent dual-channel devices in one redundant architecture for secure automatic paralleling.

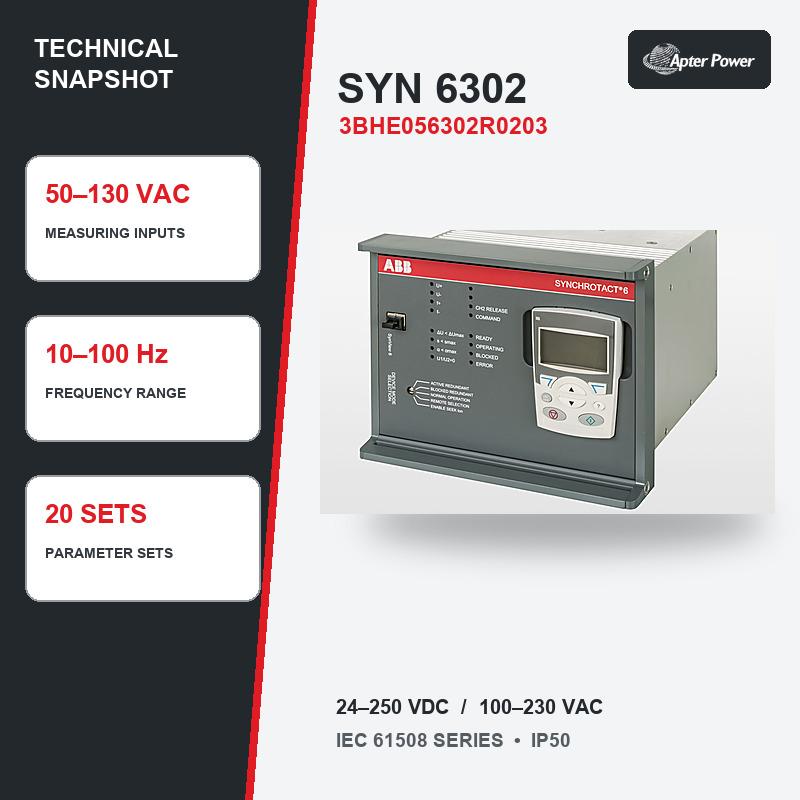

This 0203 configuration provides extended functionality with 20 parameter sets and no operating-interface communication option. Official ABB data lists 50–130 VAC measuring inputs and a 10–100 Hz frequency range.
Availability: In stock | MOQ: 1 | Payment: T/T | Price: Inquiry required
Item NO.:
SYN 6302 3BHE056302R0203Order(MOQ):
1Goods Stock:
14Payment:
T/TLead Time：
in stockWeight：
14000Weight:
14 kg net / 22 kg grossDimension:
Panel cut-out 443 × 155 mmDescription:
Redundant automatic dual-channel synchronizing systemPrice:
Inquiry required|
4-channel series architecture from two dual-channel devices |
20 sets extended parameter-set functionality |
0203 no operating-interface communication; extended function |

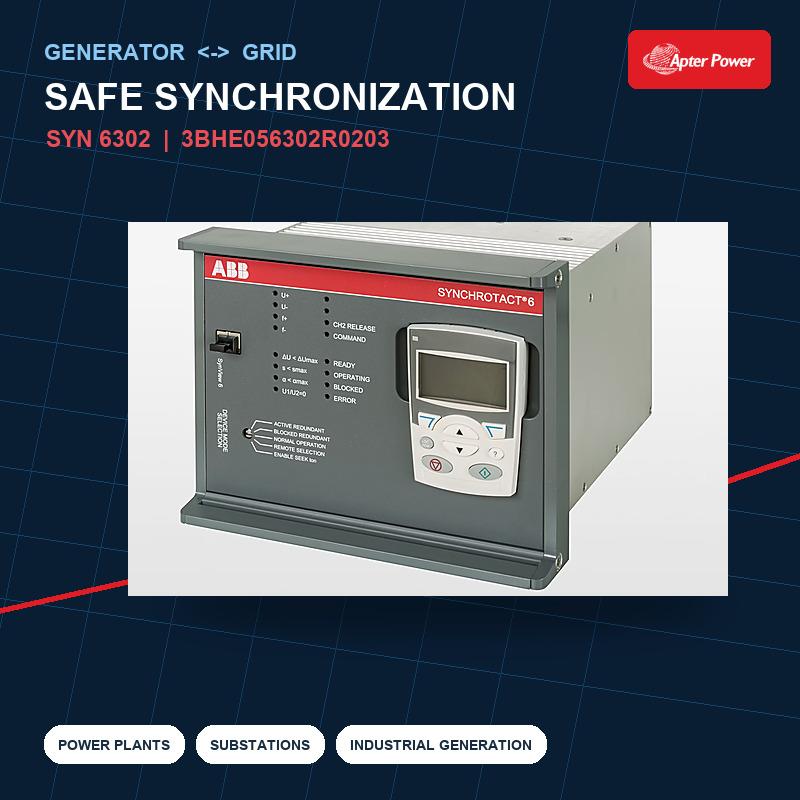

ABB defines SYN 6302 as two SYN 6202 automatic dual-channel devices operating as one redundant system. Their output contacts are normally connected in series. If one device fails, the design allows safe switchover by bypassing the affected unit while automatic paralleling remains available.
| Auxiliary voltage | 24–250 VDC; 100–230 VAC |
| Measuring inputs U1, U2 | 50–130 VAC nominal; 0–130% Un |
| Frequency | 16 2/3, 50, 60 Hz nominal; 10–100 Hz range |
| Power consumption | Ready: 2 × 22 W / 35 VA; Operating: 2 × 24 W / 37 VA |
| Paralleling relay output | 250 VAC / 250 VDC maximum; 10 A continuous |
| Protection / safety | IP50; IEC 61508 series functional safety |
| Weight | 14 kg net / 22 kg gross |
| Panel cut-out | 443 × 155 mm |
Specifications are based solely on ABB official SYNCHROTACT documentation. Confirm the complete type code and site requirements before ordering.
Apter provides a 1-year warranty on every item we sell.
Product names and trademarks are used for identification only. Apter is not an authorized distributor or representative of the manufacturer.
Technical data and configuration details are sourced from ABB official documentation.
