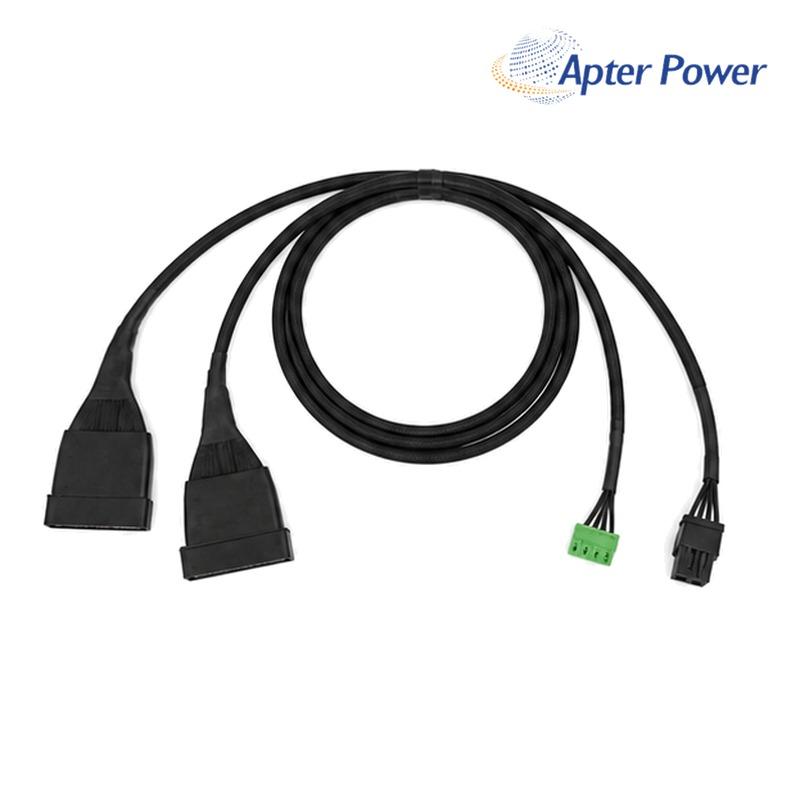

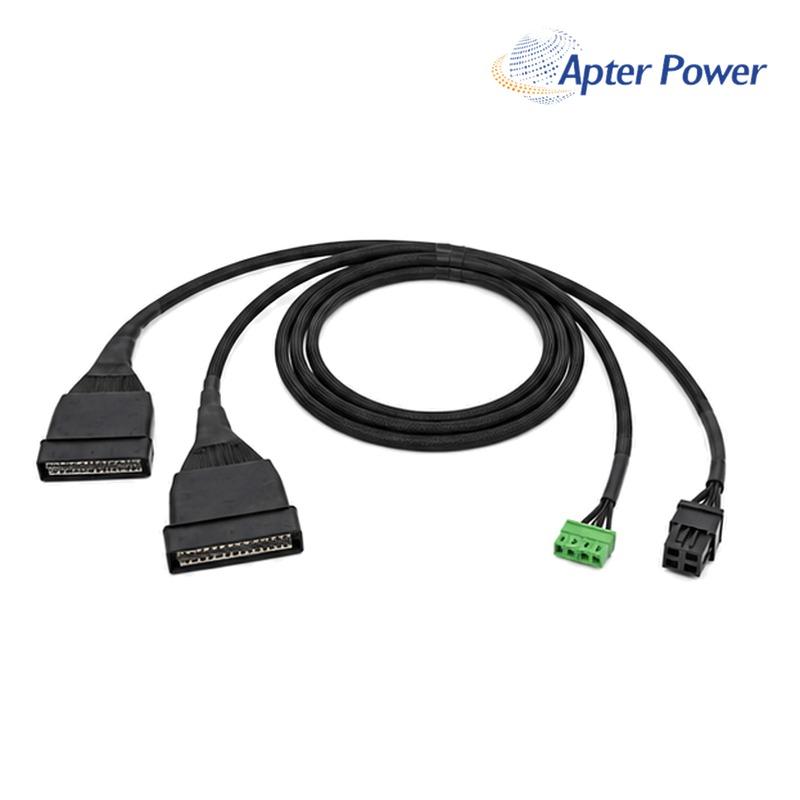

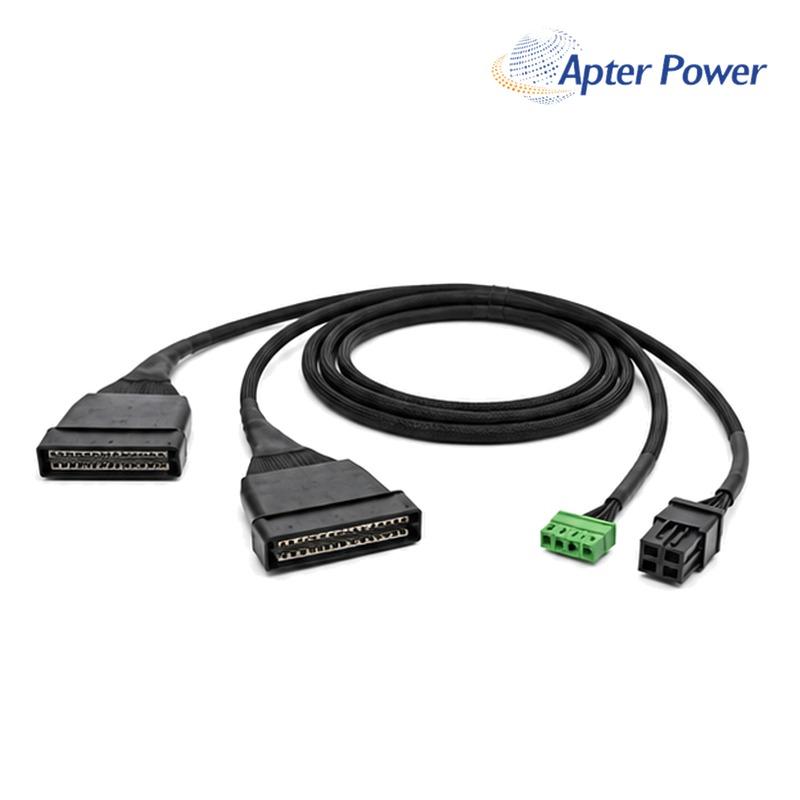

Internal 40-channel output SmartSlot cable family connecting supported Trusted output modules to an internal FTA.
Official configuration: TC-505-01-6M0; 6.0 m requested length; output-to-FTA SmartSlot construction; PVC -01 variant.
Item NO.:
TC-505-01-6M0Order(MOQ):
1Goods Stock:
5Payment:
T/TLead Time：
In stockWeight:
Not specifiedDimension:
6.0 m lengthPrice:
Inquiry requiredInternal 40-channel output SmartSlot cable family connecting supported Trusted output modules to an internal FTA. All technical statements below are limited to the cited manufacturer publication.
|
TYPE C Chassis end |
6.0 m ROUTE Three branches |
TYPE R FTA end |
|
BLZF + AMP Power connections |
| Cable family | Trusted I/O SmartSlot TC-505 |
| Signal direction | Output module to internal FTA |
| Requested length | 6.0 m (6M0 order suffix) |
| Main connectors | 96-way type C to 96-way type R |
| Power connections | 5-way BLZF 3.5 plus 6-way AMP plug |
| Applicable FTAs | T8850 and T8870 listed by Rockwell |
Source: Rockwell Automation Publication ICSTT-RM313Q-EN-P. Verify the complete order configuration against the current manufacturer documentation before installation.
TC-505-01-6M0 is covered by Apter Power’s 12-month warranty from shipment, subject to our standard warranty terms.
|
Length & End Check
Requested code, cable length, connector arrangement and visible condition are checked.
|
Receiving Review
Retain the package and provide label, connector and package photos for any delivery concern.
|
Solution Channel
Our team coordinates verification, return review, replacement discussion or another agreed solution.
|
Coverage note: Damage caused by incorrect installation, wiring, storage, misuse, unauthorized repair, modification or external damage is excluded.
Official document: Rockwell Automation Publication ICSTT-RM313Q-EN-P
