Item NO.:
3301022258100200Order(MOQ):
1Goods Stock:
28Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
1.5x113x1.4cmDescription:
PROXIMITY TRANSDUCERPrice:
Ask
Route and configuration

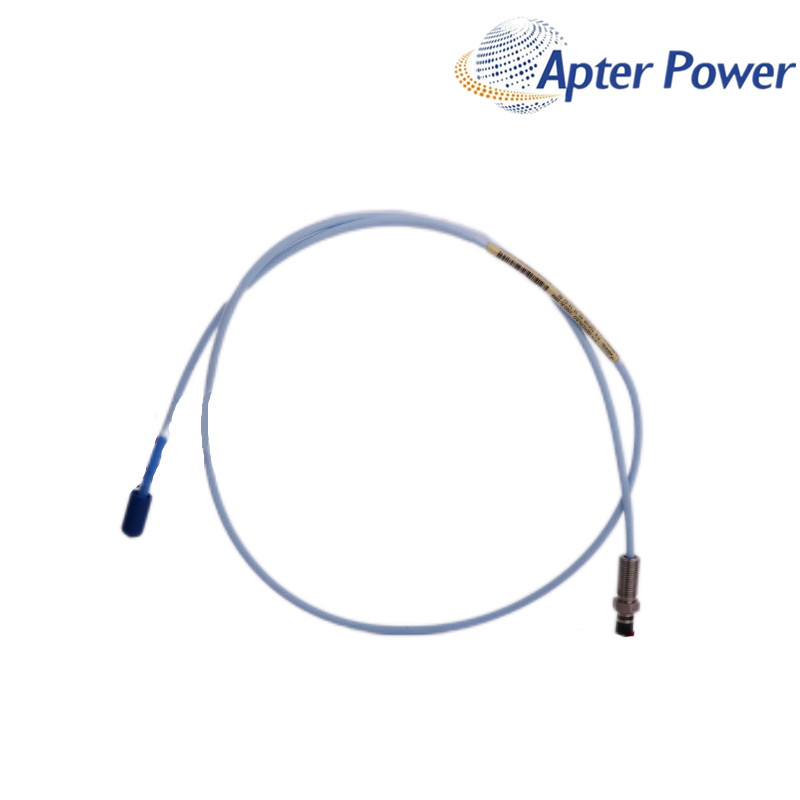

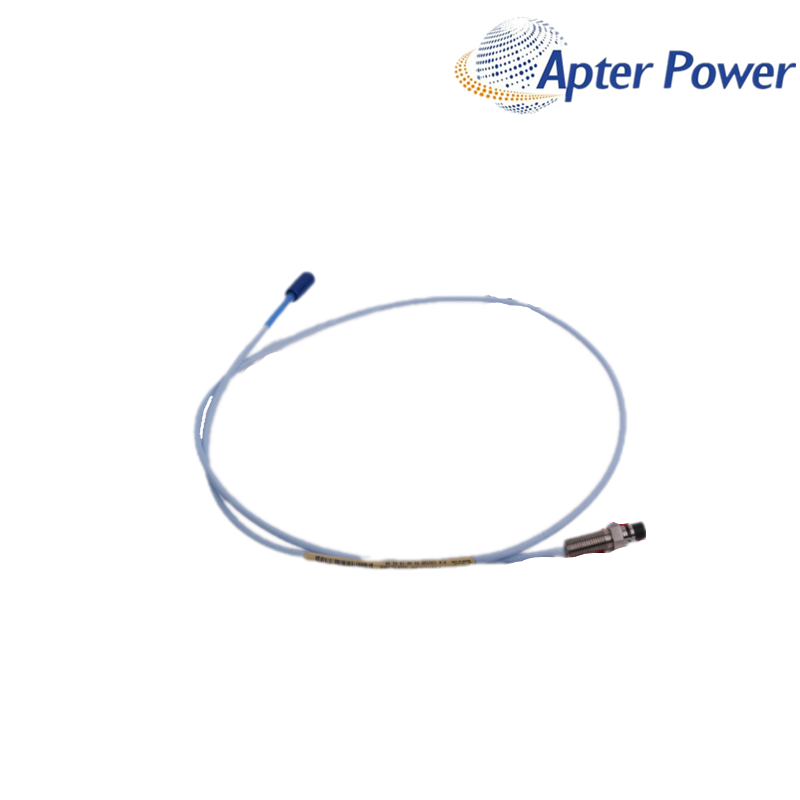

330102-22-58-10-02-00 is a Bently Nevada 3300 XL 8 mm metric proximity probe with an armored cable construction. The product page leads with cable-route and delivered-configuration control because those conditions affect both the installation plan and the purchase request.
For 330102-22-58-10-02-00, the 5.8 in case, 2.2 in unthreaded section and 1.0 m lead should be considered together with the available route and service access. Cable protection reduces exposure but does not remove the need for clearance at bends, connectors or removal points.
330102-22-58-10-02-00 should be quoted from the complete ordering code and the project’s mounting context. Its 1.0 m integral lead is only one component of the completed measurement chain and must be paired with the correct official extension cable and matched Proximitor Sensor.
Installation handoff
Configuration focus
Verified configuration
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm proximity transducer system |
| Product type | 3300 XL 8 mm Proximity Probe |
| Ordering family | 330102 |
| Thread | 3/8-24 UNF |
| Cable armor | Included |
| Unthreaded length | 2.2 in |
| Overall case length | 5.8 in |
| Integral cable length | 1.0 m |
| Connector / cable | 02 — miniature coaxial ClickLoc / standard cable |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194 Rev. AM. Dimensions and options reflect the manufacturer’s published ordering-code definitions.
Technical note
For 330102-22-58-10-02-00, armor protects the cable route but does not eliminate bend, pinch-point or connector-access limits. Preserve the protected path and service clearance together; stop when the installed route forces loading or trapping of the cable.
Buyer and engineer support
No. Armor helps with mechanical protection, but the route still needs adequate clearance, support, bend control and protection from crushing and pull load.
Compare the 2.2 in unthreaded section and 5.8 in case against the actual bracket, locknut stack, target location and rear space. Do not decide from thread diameter alone.
Support the cable so the armored lead and connector are not pulled, pinched or forced around a tight path. Keep the connection accessible for inspection after service.
Choose the official extension cable that gives the complete five- or nine-metre system required by the matching Proximitor Sensor. Never add general-purpose coaxial cable to the measurement chain.
A disturbed connector, changed total electrical length, probe gap or target can alter the channel. Inspect those conditions first so a routing fault is not mistaken for a calibration issue.
Send the full nameplate, bracket drawing, existing probe and Proximitor labels, route photograph, total system-length requirement, quantity and destination.
