Installation context

Product Description

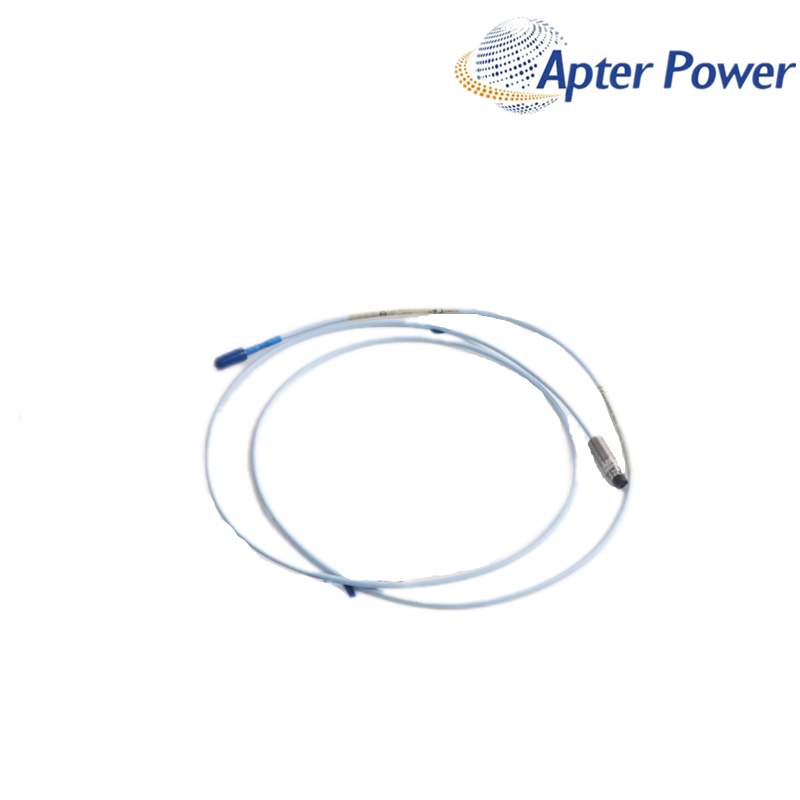

330101-30-63-10-02-CN is a Bently Nevada 3300 XL 8 mm proximity probe selected where the physical mounting stack governs the replacement decision. Its 3.0 in unthreaded section and 6.3 in case need to be evaluated as part of the installed bracket, rather than as isolated catalogue values.

Before a planned shutdown, 330101-30-63-10-02-CN should be assessed for reach, locknut adjustment, target position and rear removal space. The 3/8-24 UNF mounting thread is only one part of that mechanical decision; the full body geometry determines whether installation and later service remain practical.

Once the mechanical fit is accepted, 330101-30-63-10-02-CN is completed as a defined 3300 XL transducer system. Its 1.0 m integral lead is only one component of the completed measurement chain and must be paired with the correct official extension cable and matched Proximitor Sensor.

Fit path

Make the mechanical decision first.

01 · DRAWING REVIEWCompare the body geometry with reach, engagement and target position.

02 · SERVICE ACCESSKeep adjustment, cable exit and rear removal space available.

03 · SYSTEM HANDOFFComplete the electrical chain after the mechanical fit is accepted.

Configuration focus

Key Features

Mechanical stackCompare the full body geometry with the installed bracket and target reach.

Service accessRetain adjustment and future removal room before the outage.

System completionSelect the measurement chain only after mechanical fit is accepted.

Verified configuration

Technical Specifications

Manufacturer	Bently Nevada, a Baker Hughes business
Product family	3300 XL 8 mm proximity transducer system
Product type	3300 XL 8 mm Proximity Probe
Ordering family	330101
Thread	3/8-24 UNF
Cable armor	Not included
Unthreaded length	3.0 in
Overall case length	6.3 in
Integral cable length	1.0 m
Connector / cable	02 — miniature coaxial ClickLoc / standard cable
Place of shipment	Xiamen, China
Delivery Time	1-3 days
Quantity	100% New Original
Minimum Order Quantity	1pc

Source: Baker Hughes Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194 Rev. AM. Dimensions and options reflect the manufacturer’s published ordering-code definitions.

Technical note

Fit before shutdown.

Engineering checkpoint

The primary risk for 330101-30-63-10-02-CN is mechanical fit: the 3.0 in unthreaded section and 6.3 in case determine the usable mounting stack, adjustment range and future removal space. Stop before installation if the drawing cannot support all three conditions; changing monitor settings cannot resolve a geometry conflict.

Buyer and engineer support

Frequently Asked Questions

A maintenance bracket has a recessed mounting face. How can an engineer verify 330101-30-63-10-02-CN before shutdown?

Measure from the mounting face through the recess, bracket and locknut stack to the target. The 3.0 in unthreaded section and 6.3 in body must still leave usable adjustment and rear clearance.

Can 330101-30-63-10-02-CN replace a shorter 3/8-24 probe if the sensing tip can reach the target?

Only after the complete mechanical stack is compared. A longer body can change locknut position, rear clearance and cable routing even when the target distance appears unchanged.

The one-metre lead on 330101-30-63-10-02-CN does not reach the existing Proximitor Sensor. What should the installer do?

Use only a manufacturer extension length that combines with the 1.0 m lead to make the total required by the selected five- or nine-metre Proximitor Sensor. Do not splice the probe cable.

Why can a channel shift after 330101-30-63-10-02-CN is fitted during maintenance?

A changed total cable length, incompletely seated ClickLoc connector or disturbed probe gap can alter the chain. Correct those conditions before changing monitor scaling or calibration.

How should a project team verify whether 330101-30-63-10-02-CN meets its site approval requirement?

Compare the delivered nameplate and manufacturer installation requirements with the project classification before release. Do not make that decision from the model suffix or the family name alone.

What should purchasing send to obtain an exact quotation for 330101-30-63-10-02-CN?

Provide a clear full-nameplate photo, mounting drawing with recess and clearance dimensions, required system length, Proximitor label, quantity, destination and condition requirement.

Supply support

Installation-Ready Sourcing

We support quality-focused sourcing for current, discontinued and difficult-to-find industrial automation parts. For an exact-match review, provide the complete model, clear nameplate photograph, mounting drawing, required system length, quantity and destination.

Search references

Alternative Names

3300 XL 8 mm 3/8-24 UNF proximity probe
6.3 in case / 1.0 m lead 330101 configuration
