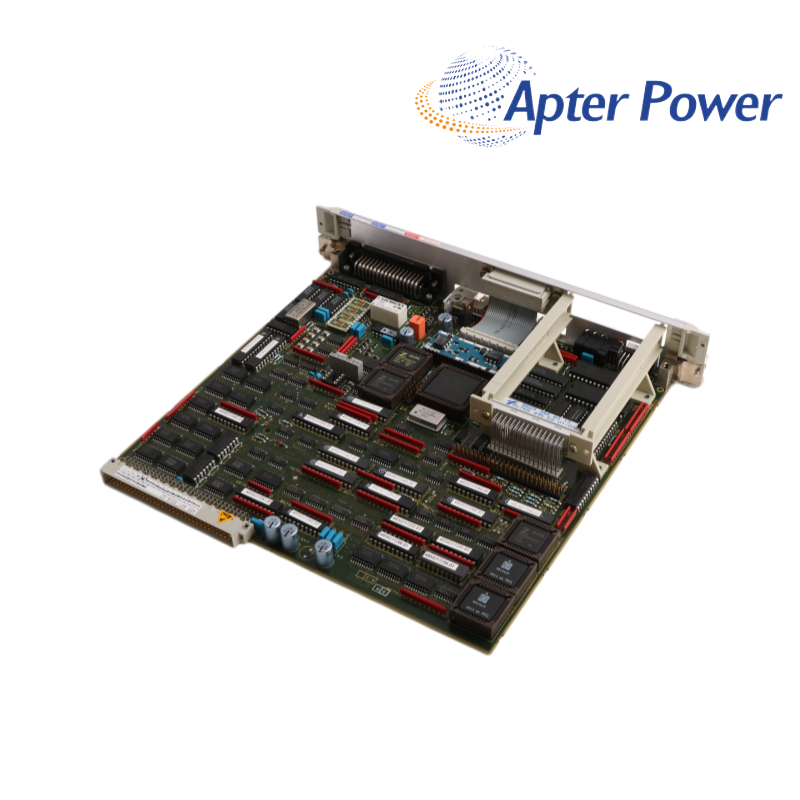

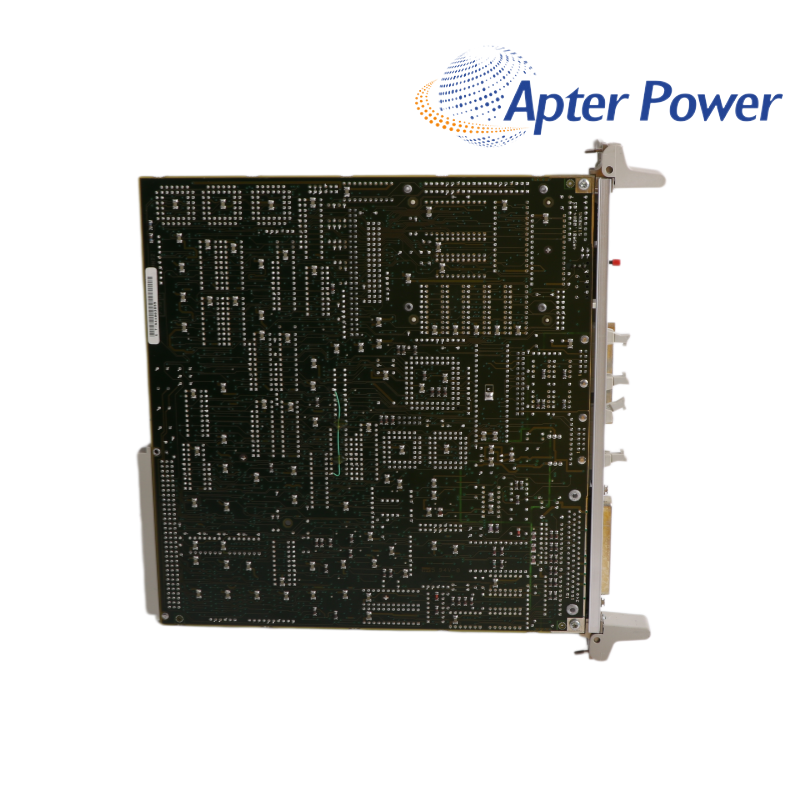

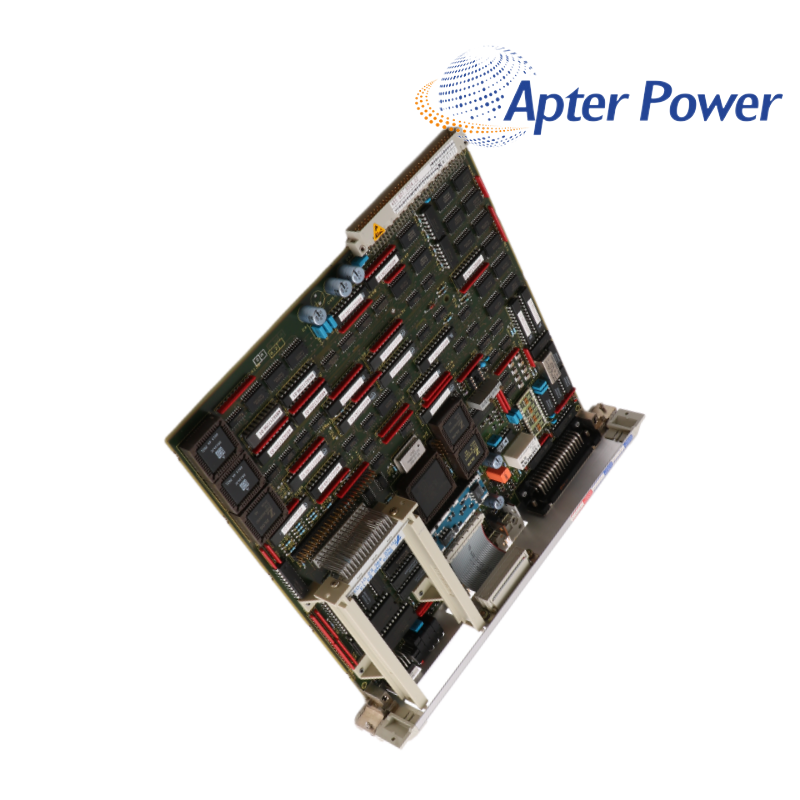

Siemens 6DD1601-0AH0 Expansion Module

⭐Specifications

The Siemens 6DD1601-0AH0 ITDC expansion module integrates auto-reversing, current control, and a 400 Hz gating unit for line-commutated 6-pulse drive converters, serving as a direct replacement for the PG16. It connects to SITOR power sections via a dedicated interface and mounts onto a PM5 or PM6 CPU module. The unit supports both 5V (RS485/push-pull) and 15V (HTL) incremental encoders with zero-pulse detection up to 1 MHz, selectable via DIL switch S1. With two analog outputs, four binary inputs, and four binary outputs, it reduces cabinet space and external components.

⭐Get Quotation

⭐Why Choose Us

Apter Power is a global supplier of industrial automation components, specializing in new, used, and discontinued parts. The company was established to meet the growing demand for obsolete components after many manufacturers phased out legacy systems. With a strong focus on PLC, DCS, CNC, and drive technologies, we provide reliable solutions for maintenance and system continuity. Serving customers in over 80 countries, we are committed to fast delivery and high-quality products.

⭐Question you may ask

Q1: When’s the soonest you can ship the order?

A: We will make delivery once received your payment.

Q2: Do you have any overseas offices?

A: No, but we sell to all over the world.

Q3: Are you a manufacturer or a middleman?

A: Trading company.

Q4: Do you provide technical assistance?

A: No, we sell hardware, not include the technical support.

Q5: Can you send me the datasheets or technical literature beforehand?

A: The datasheet will be shipped together with the goods.
