Identify the upgrade path
Separate a 3300 rack upgrade from a complete 3500 ENCORE rack; the available channel count is different.

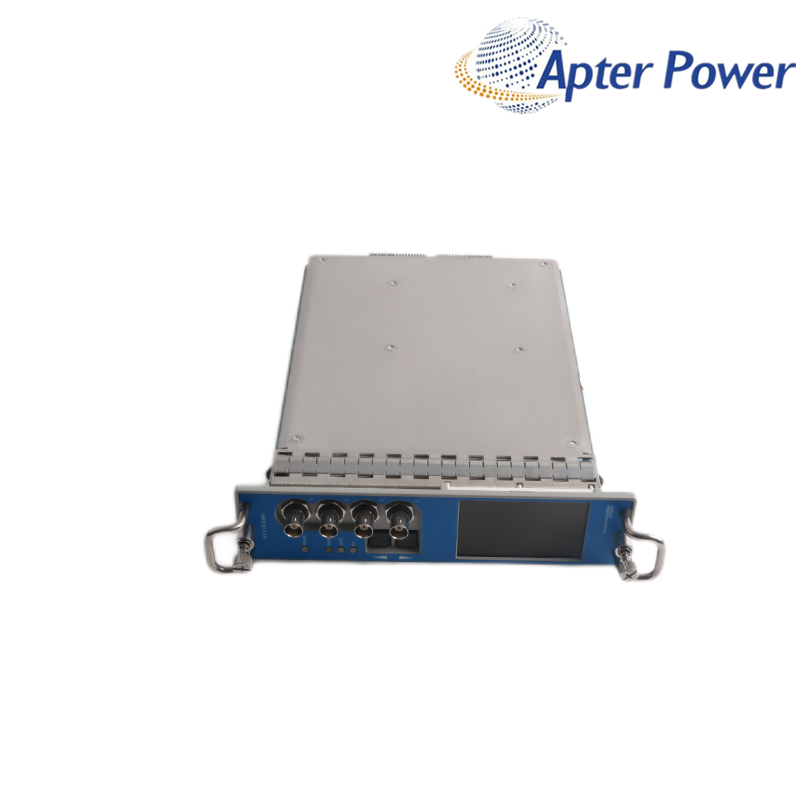

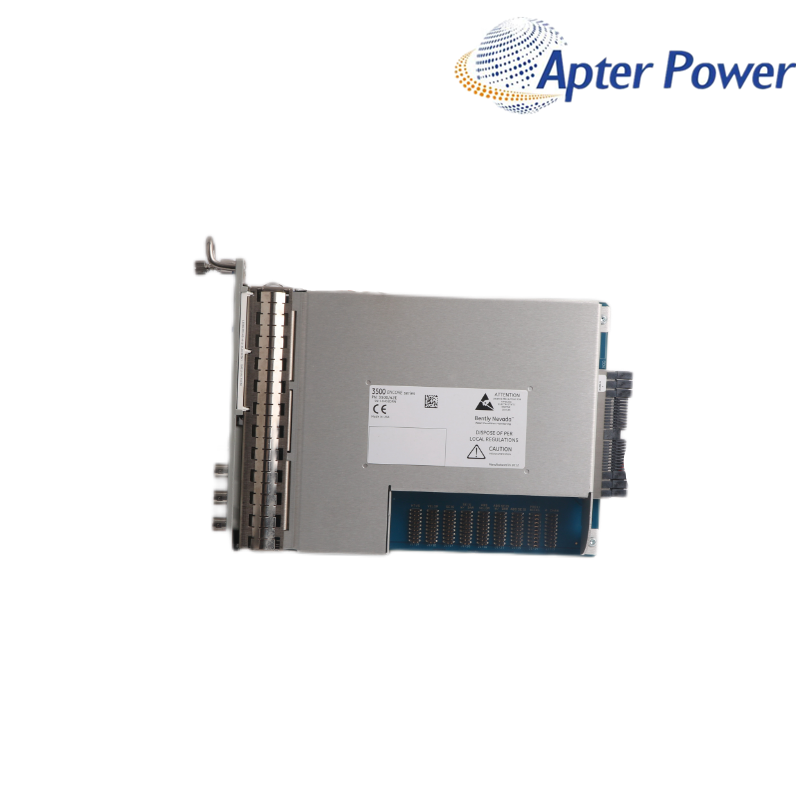

Item NO.:
3500/42EOrder(MOQ):
1Goods Stock:
35Payment:
T/TLead Time：
In stockWeight:
1.26KGDimension:
5.5x29x23cmDescription:
MONITOR MODULEPrice:
AskRetaining an existing 3300 installation changes how this monitor can be used. In a documented rack-upgrade arrangement, 3500/42E works with the installed 3300 chassis, I/O and relays, but only two measurement channels are available.
A complete 3500 ENCORE rack makes all four channels available. Channels are configured in pairs, allowing the project to assign supported vibration or position functions according to the connected proximity, velocity or acceleration transducers.
Before ordering or commissioning, identify the actual rack arrangement, I/O module, transducer type, paired channel functions and alarm logic. Similar front-panel appearance does not prove that the existing 3300 wiring can be retained.
controls or reliability engineer planning a 3300-to-3500 ENCORE upgrade
Separate a 3300 rack upgrade from a complete 3500 ENCORE rack; the available channel count is different.
Assign one supported monitoring function to channels 1-2 and another, or the same, to channels 3-4 when all four channels are available.
Confirm which I/O and relays drive Alert and Danger actions before transferring configuration.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3500 ENCORE machinery protection system |
| Module role | Vibration and position monitoring |
| Inputs | Proximity, velocity or acceleration transducer signals |
| ENCORE system channels | Four channels, configured in pairs |
| 3300 rack-upgrade channels | Two channels using the existing supported 3300 I/O and relays |
| Configuration tool | 3500 Rack Configuration Software |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Rack-upgrade use depends on the installed 3300 chassis, I/O and relay arrangement; a full ENCORE rack uses its own supported I/O modules.
Record channel-pair functions, transducer types, full-scale ranges and alarm setpoints before replacing or reconfiguring the monitor.
Do not transfer a four-channel configuration into a two-channel rack-upgrade arrangement. Stop startup if the installed I/O, relay path or transducer type cannot be reconciled with the approved configuration.
Within a supported 3500 ENCORE architecture, the monitor can be configured for tasks such as radial vibration, thrust position, differential expansion, shaft absolute vibration, eccentricity, acceleration or velocity measurement.
Only in the documented 3500 ENCORE rack-upgrade arrangement. Confirm the existing 3300 I/O and relay hardware; this arrangement limits the monitor to two channels.
Configure channels 1-2 as one pair and channels 3-4 as the second pair. Match each pair's function and range to its actual transducers and approved alarm strategy.
Check the imported channel function, transducer type, full-scale range, wiring, probe gap and Alert/Danger setpoints before treating the module as faulty.
Confirm the supported input type for each channel pair, the correct I/O module, polarity, shielding and field termination against the approved drawing.
Stop when the rack configuration, I/O identity, channel pair, transducer signal or relay destination is unclear. Resolve those items before enabling alarms.
Provide rack and I/O photographs, module labels, existing channel functions, transducer types, relay use, software revision, quantity and destination.
