Selection
- Confirm the site needs NSv side-view performance and the 70 mm case geometry.
- Use the complete model including the final agency code 00.
Item NO.:
330910-00-07-05-02-00Order(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
2.0KGDimension:
21.5x23x3.5cmDescription:
PROXIMITY PROBESPrice:

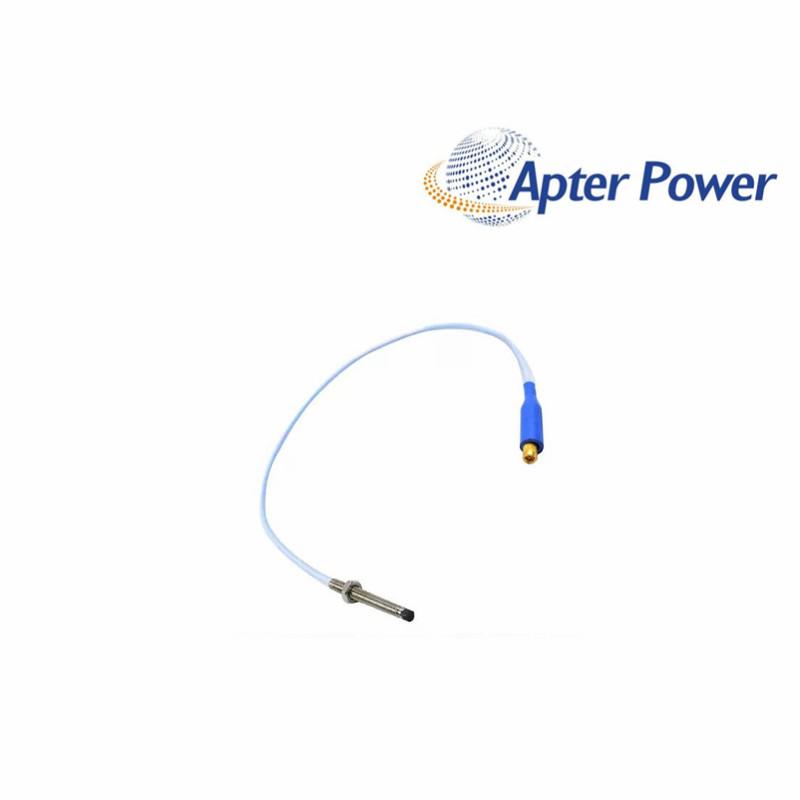

AskThe current complete page model adds agency code 00: an armored M10 × 1 NSv probe with a 70 mm case and 0.5 m standard lead.
Constrained machine locations can make side-view clearance and target size more important than probe-tip diameter alone. The NSv geometry of 330910-00-07-05-02-00 is intended for those tighter installations, using an M10 × 1 body with a 70 mm case.
A short 0.5 m lead keeps the local cable run compact. On 330910-00-07-05-02-00, the standard miniature ClickLoc connection is supplied without a protector, while the final 00 suffix identifies the no-approval option that completes the official probe format.
NSv components form their own matched signal chain. To retain the intended response, 330910-00-07-05-02-00 should be paired with the corresponding NSv extension cable and Proximitor Sensor rather than mixed with a standard 3300 XL 8 mm system.
The NSv family is intended for tighter side-view and small-target applications. Compare the official NSv clearances with the actual bracket before assuming the probe alone will correct the installation.
Check target size, alignment, surface condition and static gap first. A small or off-center target can reduce the usable field even when the M10 × 1 probe is firmly mounted.
Use it with the matching NSv extension cable and NSv Proximitor Sensor. A standard 8 mm chain has different system characteristics and should not be accepted on connector fit alone.
Choose the NSv extension cable so the complete chain matches the required system length, then support the armored lead without tight bends or side-loading at the probe.
Compare gap and target alignment under the same machine condition, then review surrounding metal, cable route and channel scale. NSv measurements are sensitive to the installed geometry around a small target.
The last field is the agency option; code 00 means approval is not required. Omitting it leaves the ordering string incomplete and can create ambiguity during receiving.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to review the 3300 XL NSv probe ordering code, armored construction, 0.5 m lead, connector option, system specifications and relevant dimensional drawings.
Download the 330910-00-07-05-02-00 filtered official datasheet|
