Selection
- Confirm the channel needs the 11 mm range and 5 m DIN-mount configuration.
- Use the CN suffix exactly and verify actual unit markings.
Item NO.:
330780-51-CNOrder(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
7.8x3x6.2cmDescription:
PROXIMITOR SENSORPrice:

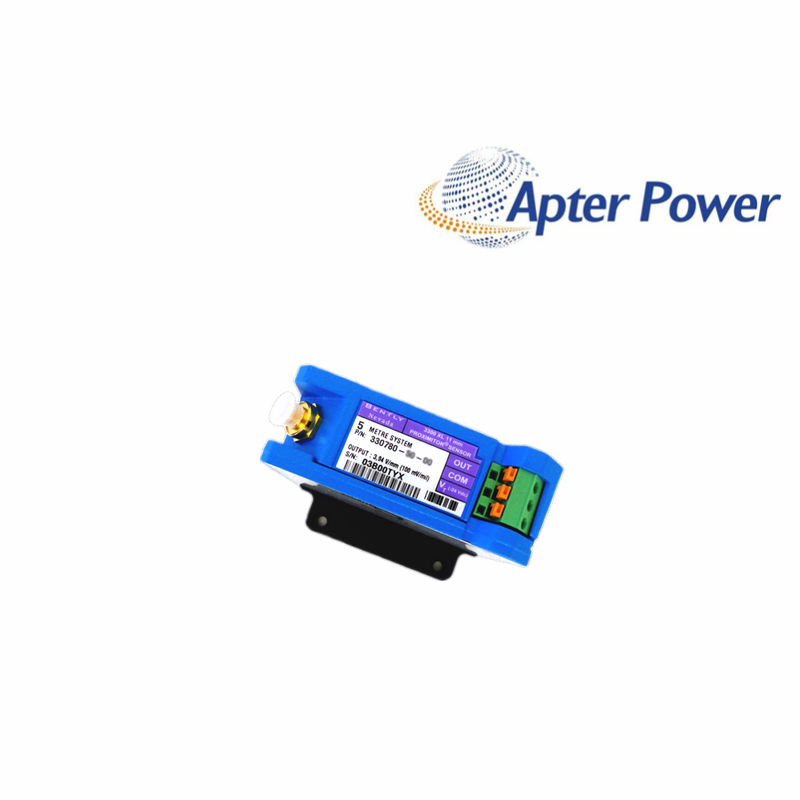

AskA 5.0 m DIN-mount 11 mm Proximitor Sensor with the supplied CN suffix retained without unsupported decoding.
Wider-range measurements such as axial position, ramp differential expansion and rod position use the 3300 XL 11 mm architecture rather than the standard 8 mm chain. In that system, 330780-51-CN converts the probe signal into the conditioned PROX OUT used by the monitoring channel.
Code 51 configures 330780-51-CN for a 5.0 m system and DIN-rail mounting, making it suitable for a panel or enclosure away from the machine probe. The matched 11 mm probe and 330730 extension cable must add up to that same 5.0 m electrical length.
The CN suffix is retained exactly because the family datasheet does not independently decode it as approval code 05. Receiving inspection for 330780-51-CN should therefore rely on the supplied-unit markings and project requirement while preserving the documented 4 mm range and 3.94 V/mm scale.
Use the 11 mm system where wider range is needed for axial position, ramp differential expansion, rod position or drop, or an engineered speed or Keyphasor task. Confirm the monitor channel supports the intended scale and range.
Mount it on DIN rail in a suitable enclosure, separate field wiring from noise sources and verify supply, common and PROX OUT polarity before energizing. The documented supply is -17.5 to -26 Vdc without barriers.
Use a 3300 XL 11 mm probe and 330730 extension cable whose lengths add to 5.0 m, such as a 1.0 m probe plus a 4.0 m cable. Do not mix in 8 mm components.
Record the exact sensor suffix and markings, probe and cable models, total length, supply voltage, static PROX OUT, channel scale and response at a known machine condition.
Check -24 Vdc supply, common, field polarity, probe and cable continuity, connector seating and probe gap. These tests separate a field-chain fault from a sensor fault.
Retain CN exactly in the purchase description and verify the supplied-unit markings against the project requirement. Do not treat CN as equivalent to approval code 05 without official evidence.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to review the 3300 XL 11 mm Proximitor Sensor mounting and 5 m system options, electrical specifications, matching requirements and dimensional drawings. The CN suffix is not interpreted beyond the official evidence.
