Selection
- Confirm that the M16 x 1.5, 50 mm case reaches the target with safe adjustment travel.
- Use the 11 mm system when the required range and target geometry support it; match all chain components.
Item NO.:
330709-00-050-10-02-Order(MOQ):
1Goods Stock:
8Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
0.11x16x9cmDescription:
PROXIMITY PROBESPrice:
AskAn M16 x 1.5 unarmored 11 mm probe with 0 mm unthreaded length, 50 mm case, 1.0 m lead and standard ClickLoc connector.

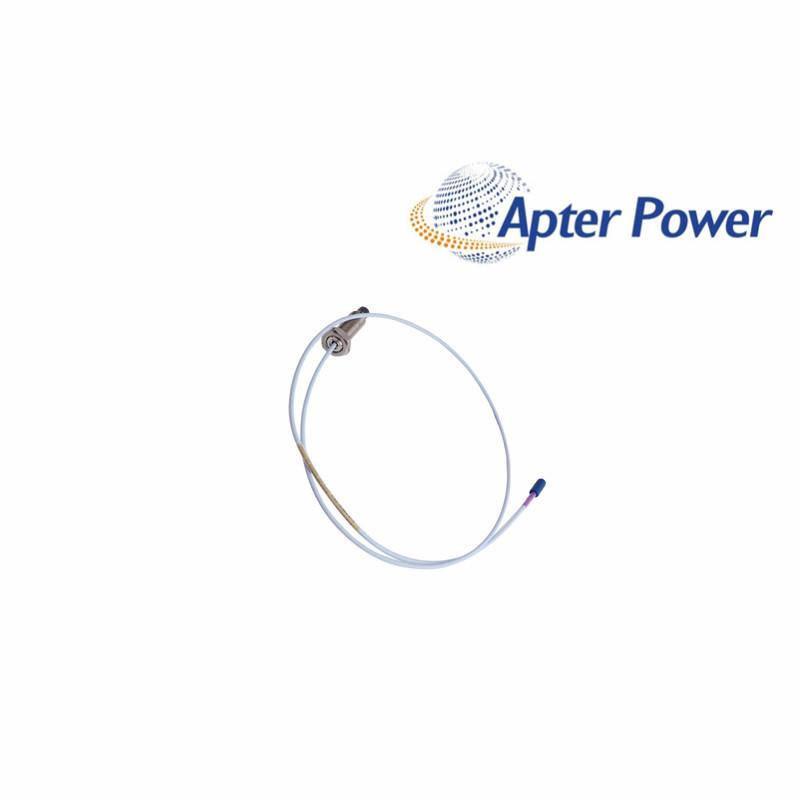

Bently Nevada 330709-000-050-10-02-00 is an unarmored M16 x 1.5 probe in the 3300 XL 11 mm system, intended for non-contact axial position, differential expansion, rod position and other measurements that need a longer linear range.
The exact configuration combines 0 mm unthreaded length, a 50 mm case, 1.0 m lead and standard ClickLoc connector without protector. In a matched system, 330709-000-050-10-02-00 provides a 4.0 mm linear range with a nominal 3.94 V/mm scale factor.
Before ordering 330709-000-050-10-02-00, confirm the M16 mounting depth, target diameter, required movement range and the 11 mm extension-cable/Proximitor selection. The probe must not be mixed with 8 mm or legacy 7200 components.
It is intended for measurements that benefit from the 3300 XL 11 mm system’s longer 4.0 mm linear range, including axial position, differential expansion and rod-position work. Target size and available mounting space must also suit the larger probe system.
It has an unarmored M16 x 1.5 case with zero unthreaded length, a 50 mm overall case and a 1.0 m integral lead. The standard miniature ClickLoc connector is supplied without a connector protector.
Not on thread size alone. This model belongs to the 3300 XL 11 mm measurement system and must be matched with the correct extension cable and Proximitor Sensor; an 8 mm or legacy 7200 component changes the calibrated system response.
The published matched-system values include a 4.0 mm linear range, a nominal 3.94 V/mm scale factor and frequency response from 0 to 8 kHz. These values apply to the complete 11 mm chain rather than the probe by itself.
The published recommendations call for a minimum 30.5 mm diameter flat target and a minimum 152 mm shaft diameter for the stated performance. The mechanical design should also provide the required 2.5 mm nominal gap and movement travel.
The probe, extension cable and Proximitor Sensor are calibrated as one system, so mixing families or total lengths can change sensitivity and usable range. Keeping every chain part in the 11 mm configuration protects the intended scale and linearity.
