8 mm extension cable
Item NO.:
330130-045-02-00Order(MOQ):
1Goods Stock:
20Payment:
T/TLead Time：
In stockWeight:
0.32KGDimension:
113x1.8x1.5 cmDescription:
3300 XL 8 MM EXTENSION CABLEPrice:
Ask

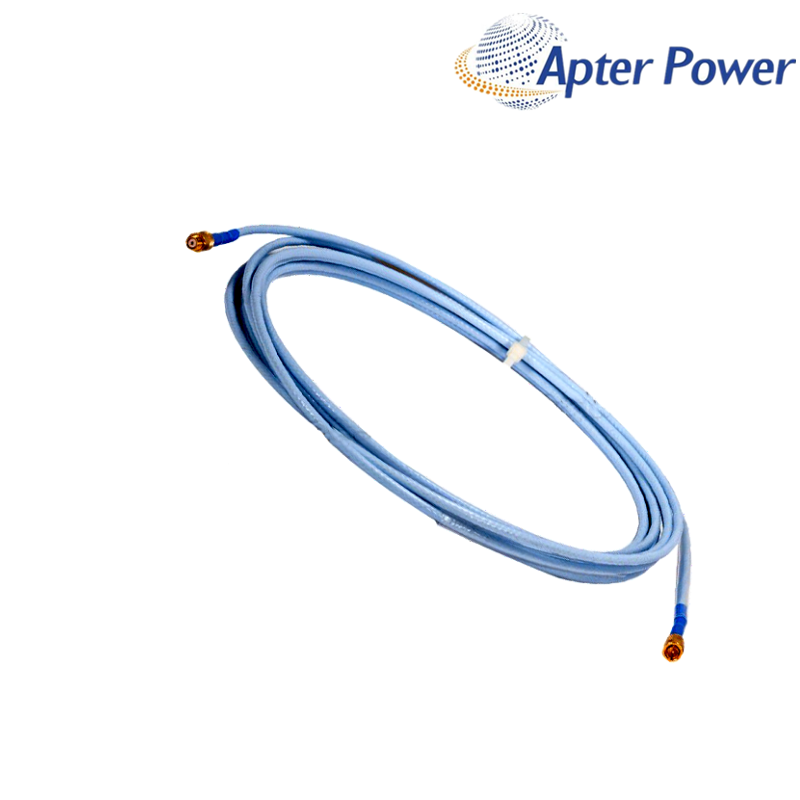

Completes a matched probe-to-Proximitor signal path while adding protection at the cable connection.
Bently Nevada 330130-045-02-00 belongs to the 3300 XL 8 mm Proximity Transducer System. Completes a matched probe-to-Proximitor signal path while adding protection at the cable connection.
8 mm extension cable
4.5 m length
Standard + protector
Approval not required
| Cable length | 4.5 m |
|---|---|
| Cable construction | Standard FEP-insulated cable |
| Connector protection | Connector protector included |
| Approval option | 00 — not required |
| Matched family | 3300 XL 8 mm |
| Minimum bend radius | 25.4 mm |
| Cable operating temperature | -51 to +177 °C |
| System rule | Probe lead + extension cable = Proximitor length |
| Current backend stock | 20 |
| Current backend weight | 0.32KG |
| Current backend dimensions | 113x1.8x1.5 cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Capture the installed identity and mechanical context before disconnection.
Compare the exact family, length, mounting and connector details.
Review the receiving system, scale and commissioning response.
Include every order-code segment, manufacturer nameplate and approval marking.
Show the connected probe, cable, sensor, transmitter, rack module and receiving input as applicable.
Current backend stock, packed weight and dimensions remain unchanged until new warehouse evidence is supplied.
Add the installed probe lead length to this 4.5 m extension cable and match the result to the 3300 XL 8 mm Proximitor Sensor length marking.
Use it to shield the ClickLoc junction in exposed routing. Confirm there is enough installation space and keep the connector clean before closing the protector.
No. Maintain at least the 25.4 mm bend radius and avoid sharp bends or crushing that can stress the cable and connector.
Check the matched 8 mm family, total electrical length, connector cleanliness and seating, cable route and the channel baseline before changing calibration settings.
The 00 option is listed as approval not required. Confirm the project classification still permits that option before ordering.
Complete-label comparison before quotation.
Support for maintenance and project spares.
Quotation, delivery and after-sales communication.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the product label and complete order reference.
Add connector or terminal photos and associated signal-chain labels.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 8 mm Datasheet 141194 provides the family specifications, ordering table and installation context used for this review.
Exact-version note: 4.5 m cable · standard construction · connector protector · agency approval not required
Open Official DatasheetAsk a Product QuestionRelated Tags :
