Selection
- Confirm the 140 mm reach and code 01 protector are required.
- Check approval code 05 against the supplied-unit label and site design.
Item NO.:
330104-00-14-10-01-05Order(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
1KGDimension:
7.8x3x6.2cmDescription:
PROXIMITY PROBESPrice:

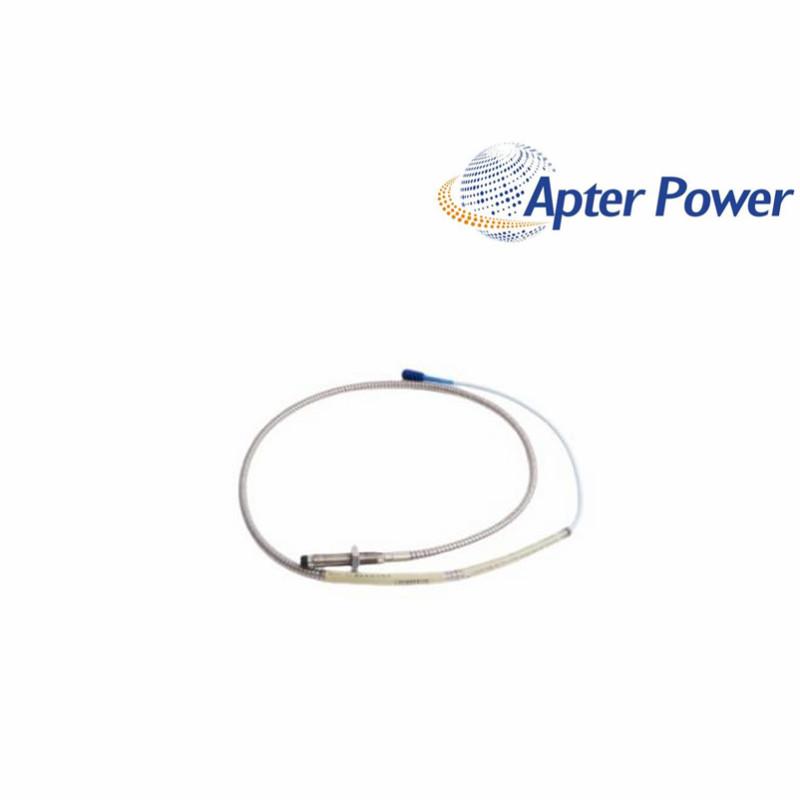

AskAn armored M10 × 1 probe with a 140 mm case, protected ClickLoc connector and multiple approvals.
A 140 mm M10 × 1 case gives 330104-00-14-10-01-05 the reach for deeper metric mounting points while keeping the probe within the familiar 3300 XL 8 mm measurement chain. It is aimed at shaft-vibration or position locations where both reach and cable protection matter.
The combination of an armored lead and connector protector distinguishes 330104-00-14-10-01-05 from standard-cable versions. Together they provide a more robust route through demanding machine areas, while proper support keeps armor movement from loading the probe body.
Approval code 05 adds the CSA, ATEX and IECEx configuration available for this family. For an approved loop, the value of 330104-00-14-10-01-05 comes from matching its full suffix and supplied-unit markings to the existing barriers, wiring practice and site classification.
It suits a 140 mm M10 × 1 reach where the cable route needs armor, the ClickLoc joint needs a protector and the project requires approval code 05. All three needs should be verified from the existing design.
Confirm insertion depth and target clearance before locking the probe, then support the armor so it cannot side-load the body. Keep the protected joint accessible for inspection.
No. It improves connector protection, but clean assembly, correct sealing practice, routing and inspection remain necessary. Verify the supplied-unit approval marks as part of the complete loop.
Record the full suffix, approval marks, insertion depth, final gap voltage, connector condition, cable route, sensor model and dynamic baseline at a known machine state.
Recheck gap, target state, mechanical position, protector assembly, cable continuity and sensor supply before changing alarm setpoints. Compare readings at the same speed and load as the former baseline.
Confirm the 140 mm case, code 01 connector protector, approval code 05, intact armor, undamaged tip and matching nameplate before the unit is released to an approved loop.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to review the 3300 XL 8 mm armored metric probe geometry, 140 mm case, connector protector, approval option, matched-system specifications and installation drawings.
