Item NO.:
330101-00-28-05-02-00Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
0.04KGDimension:
58.5x1.5x1.5cmDescription:
SENSOR PROBEPrice:
Ask3300 XL 8 mm proximity transducer system · 3/8-24 UNF · 0.5 m lead
Manager JimPei · Nameplate, mounting and system-length review for maintenance and project purchases.

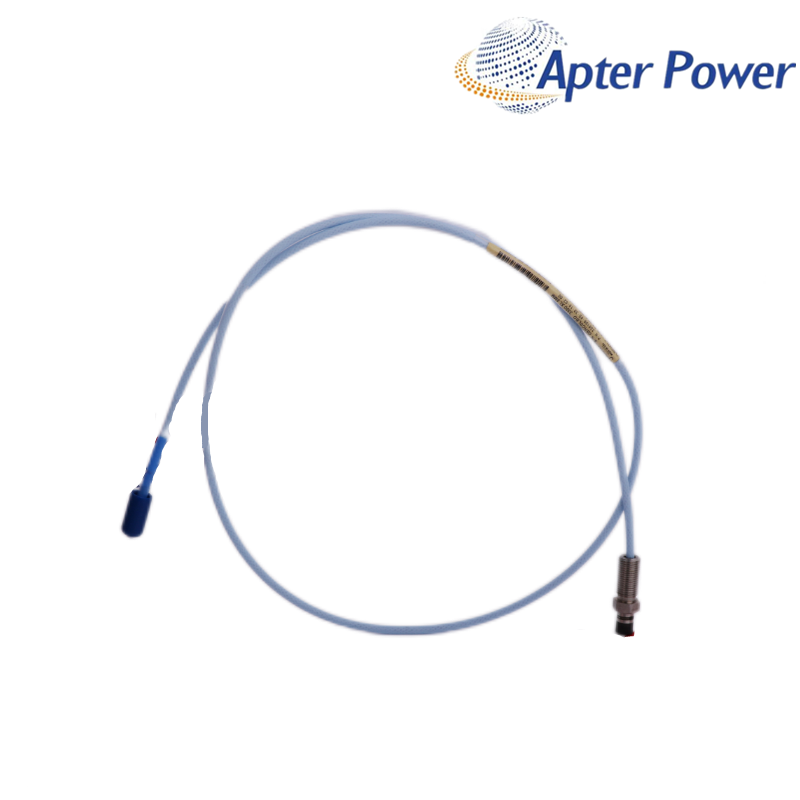

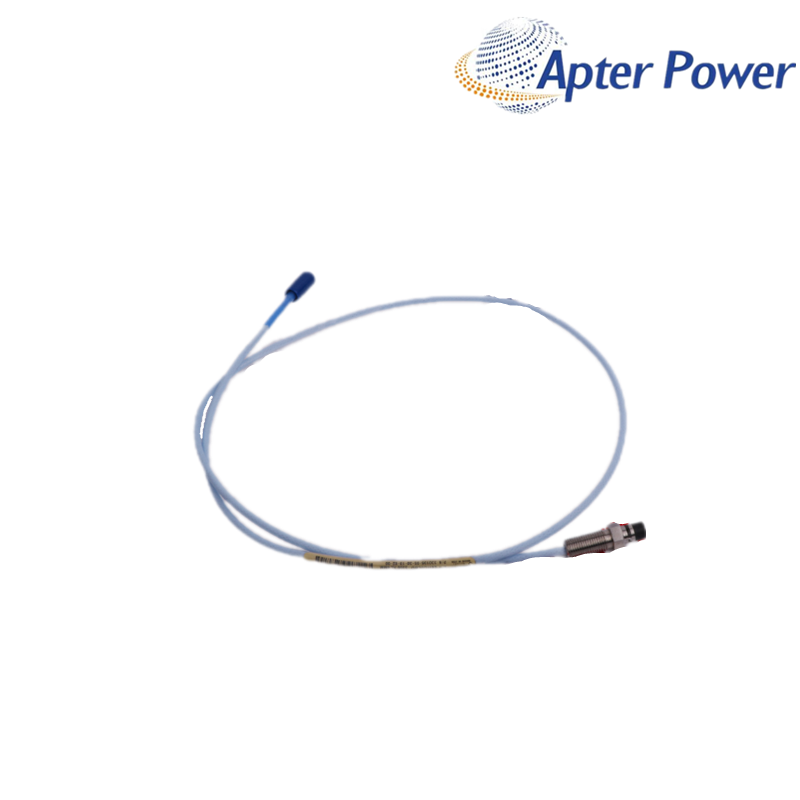

330101-00-28-05-02-00 is a standard-temperature 3300 XL 8 mm forward-mount probe with a 3/8-24 UNF thread, zero unthreaded length, a 2.8 in overall case and a 0.5 m integral lead. Its option 02 connection is a miniature coaxial ClickLoc on standard cable without armor.
330101-00-28-05-02-00 gives more threaded reach than the compact 0.8 in and 2.0 in case versions while keeping the shortest common integral lead. Selection should therefore start with the machine drawing and the extension-cable length needed to complete the matched five- or nine-metre transducer chain.
Provides defined reach with no separate unthreaded section.
Leaves most of the electrical length to the selected extension cable.
Uses the standard ClickLoc cable option and requires protected routing where exposed.
The 2.8 in body, mounting stack and required probe gap determine the usable position. Compare the drawing from the mounting face to the target and include the locknuts; do not order from overall case length alone.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm |
| Product type | Forward-mount proximity probe |
| Thread | 3/8-24 UNF |
| Cable armor | Not included |
| Unthreaded length | 0.0 in |
| Overall case length | 2.8 in |
| Integral cable length | 0.5 m |
| Connector / cable | Miniature coaxial ClickLoc / standard cable |
| Connector protector | Not selected |
| Agency option | 00 — not required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Commercial packed weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Confirm bracket thickness, thread engagement, rear clearance and adjustment travel before installation. The zero-unthreaded option keeps the full case threaded but does not remove engagement limits.
Pair the 0.5 m lead with a 4.5 m or 8.5 m manufacturer extension cable when building a common five- or nine-metre chain. Match the resulting total to the Proximitor label.
Use the machine drawing to compare mounting-face-to-target distance, bracket thickness, locknut stack and required gap. If the adjustment range is not clear, request a dimensional review before ordering.
Use the official length that completes the selected system: 4.5 m for a 5 m chain or 8.5 m for a 9 m chain. Confirm the Proximitor label and do not add a general-purpose cable.
Only if the route itself supplies equivalent mechanical protection and the project does not require the armored ordering option. This model is unarmored; stop if the cable would remain exposed to crushing or service movement.
Check total chain length, ClickLoc seating, probe gap, target material and cable damage before recalibration. Correcting those installation changes usually provides the next valid diagnostic step.
This code uses approval option 00. Do not assume family-level certification applies; select the manufacturer configuration whose full suffix and marking meet the project requirement.
Provide the full label string, mounting drawing, required five- or nine-metre chain, extension-cable and Proximitor labels, route protection, quantity, condition and destination.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts, including new and discontinued products, and purchases these products through independent channels. Apter is not an authorized distributor, dealer or representative of the manufacturers shown on this site. Product names, images, trademarks, brands and logos belong to their respective owners and are used only for identification; their use does not imply affiliation or authorization.
3300 XL 8 mm Proximity Transducer System — 141194 Rev. AM
Need the correct revision or configuration document? Send the complete model and installed-system details to Manager JimPei.
