Item NO.:
330101-00-08-20-02-05Order(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
20x18x2cmDescription:
EXTENSION CABLEPrice:
Ask3300 XL 8 mm proximity transducer system · 3/8-24 UNF · standard cable
Manager JimPei · Nameplate, mounting and system-length review for maintenance and project purchases.

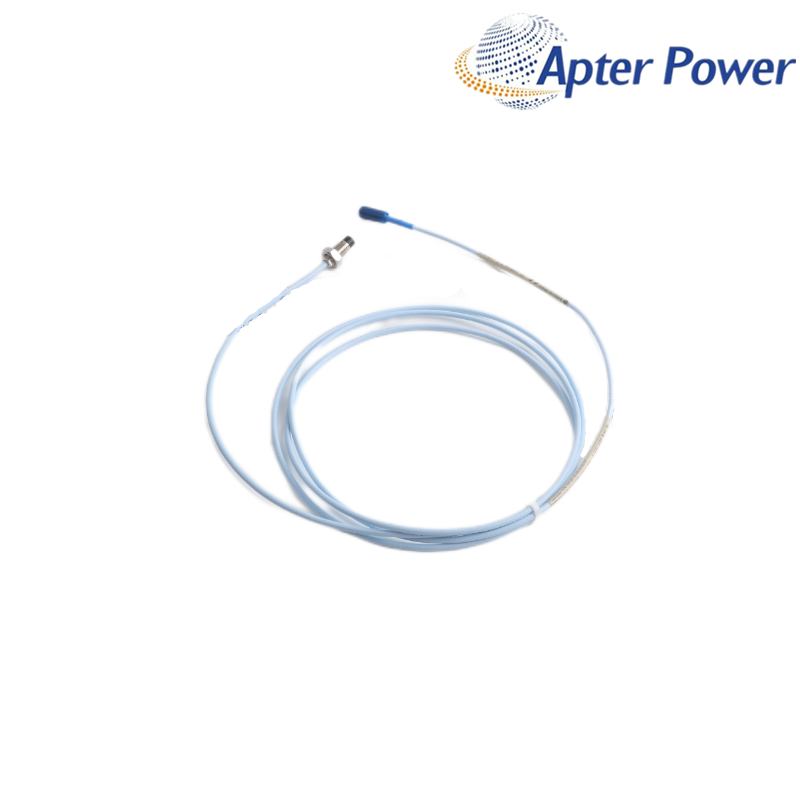

330101-00-08-20-02-05 is a 3300 XL 8 mm forward-mount proximity probe with a 3/8-24 UNF threaded case, zero unthreaded length, a 0.8 in overall case and a 2.0 m standard integral cable. Its ClickLoc connector is supplied without the separate connector protector selection.
330101-00-08-20-02-05 combines the shortest standard 330101 case geometry with a comparatively long integral lead and the CSA, ATEX and IECEx ordering option. It is one part of a five- or nine-metre transducer chain, so mounting reach, route protection, approvals and the remaining extension-cable length must all be confirmed together.
The zero-unthreaded, 0.8 in body is the shortest standard 330101 threaded geometry.
A 2.0 m probe cable changes the extension-cable length needed to complete the system.
The ordering suffix selects CSA, ATEX and IECEx approvals subject to the marked installation conditions.
The 0.8 in case leaves little tolerance for a thick bracket, locknuts or an incorrect counterbore. Compare the turbine drawing and actual mounting stack before ordering; stop if the required engagement or probe gap cannot be achieved without binding.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 8 mm |
| Product type | Forward-mount proximity probe |
| Thread | 3/8-24 UNF |
| Cable armor | Not included |
| Unthreaded length | 0.0 in |
| Overall case length | 0.8 in |
| Integral cable length | 2.0 m |
| Connector / cable | Miniature coaxial ClickLoc / standard cable |
| Connector protector | Not selected |
| Agency option | 05 — CSA, ATEX and IECEx |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Commercial packed weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Observe the 3/8-24 thread, the documented maximum engagement and the 25.4 mm minimum cable bend radius. Protect the unarmored two-metre lead from clamp pressure and service movement.
Option 05 does not replace a site hazardous-area review. Match the nameplate marking, temperature classification, wiring method, enclosure and the manufacturer installation drawing before energizing.
Check the complete mounting stack against the 0.8 in case before ordering. If the bracket and locknuts leave inadequate adjustment or exceed the documented engagement limit, stop and select an approved longer-case configuration.
Choose a manufacturer extension cable that makes the probe plus extension exactly 5 m or 9 m for the selected Proximitor. Do not splice the lead or use general-purpose coaxial cable.
Only when the approved route protects it from crushing, pulling, sharp edges and bends below 25.4 mm radius. If the site requires metallic armor, select the manufacturer’s armored probe configuration instead of adding an improvised sleeve.
First confirm the total system length and fully seated ClickLoc connection, then restore the probe gap and inspect the target. Correct those physical causes before changing monitor scaling or calibration.
No. Acceptance also depends on the actual nameplate marking, temperature class, wiring method, enclosure and manufacturer installation drawing. Stop installation if the site classification cannot be matched to those conditions.
Send the exact full code, a readable nameplate photograph, mounting drawing, required five- or nine-metre chain, Proximitor number, approval requirement, quantity, condition and destination.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts, including new and discontinued products, and purchases these products through independent channels. Apter is not an authorized distributor, dealer or representative of the manufacturers shown on this site. Product names, images, trademarks, brands and logos belong to their respective owners and are used only for identification; their use does not imply affiliation or authorization.
No verified model-specific English PDF is attached to this page. This avoids linking a document that cannot be audited against the complete ordering code.
Send the complete model, full nameplate photograph and installed-system details so the applicable manufacturer document can be checked before supply.
