Item NO.:
330100-50-00Order(MOQ):
1Goods Stock:
26Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
2.2x12.4x12.6cmDescription:
PROXIMITOR SENSORPrice:
Ask3300 non-XL 5 mm / 8 mm proximity transducer system
Manager JimPei · Nameplate, mounting and system-length review for maintenance and project purchases.

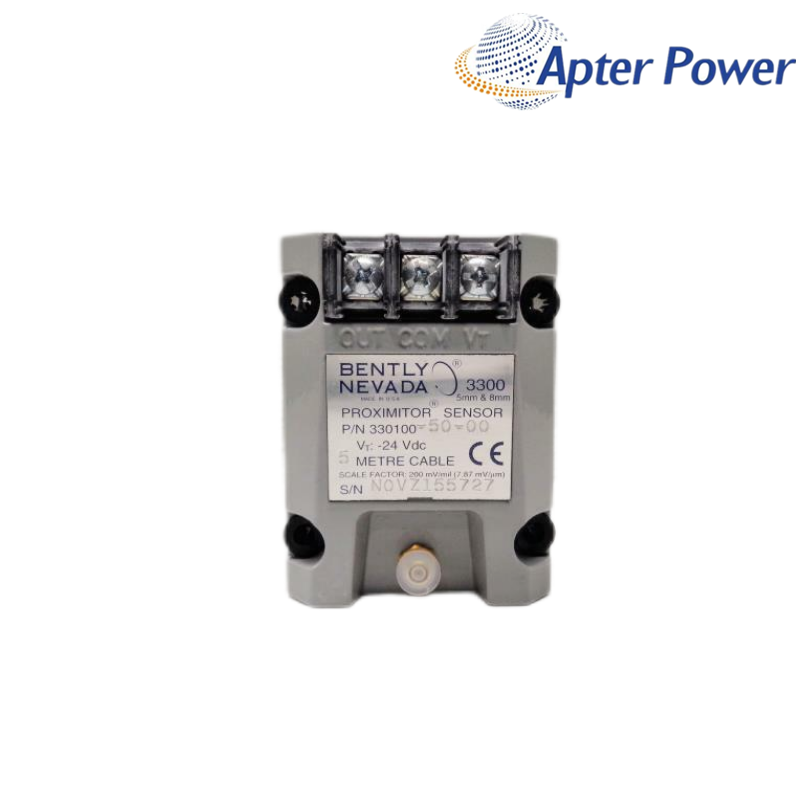

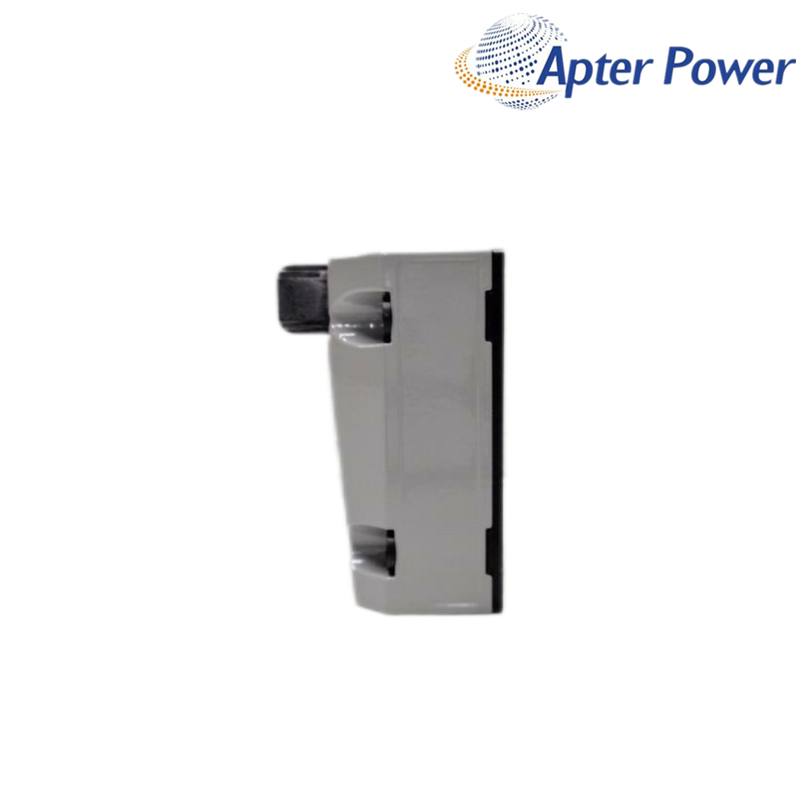

330100-50-00 is the five-metre Proximitor Sensor in a legacy Bently Nevada 3300 non-XL 5 mm or 8 mm proximity transducer chain. The interface works with a correctly matched probe and extension cable to condition the non-contacting proximity signal for the connected monitor.
330100-50-00 should be selected from the complete installed chain rather than from connector appearance. Baker Hughes documents electrical and physical interchangeability between XL and non-XL 3300 5 mm / 8 mm components, but a mixed chain is limited to the non-XL system performance, so the probe family, combined cable length and mounting arrangement must be checked before replacement.
The -50 selection belongs to a transducer chain whose probe and extension-cable lengths total 5 m.
Provides the Proximitor stage between the matched probe system and the monitoring channel.
Manufacturer documentation allows component mixing while limiting system performance to the non-XL specification.
Keep the probe-plus-extension total at the required five metres. If the monitor is farther away, use the manufacturer-defined shielded field wiring after the Proximitor; do not splice the probe lead or substitute a nine-metre chain.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 non-XL 5 mm / 8 mm proximity system |
| Product type | Proximitor Sensor |
| Configured system length | 5.0 m total probe-plus-extension length |
| System role | Probe-signal conditioning interface |
| Connected chain | Matched probe, extension cable and monitor input |
| XL/non-XL relationship | Electrically and physically interchangeable within the documented 3300 5 mm / 8 mm boundary |
| Mixed-chain performance | Limited to non-XL system specifications |
| Selection basis | Complete installed nameplates and total electrical length |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Commercial packed weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Check the probe family, integral lead, extension cable and monitor input together. Connector fit alone does not confirm a five-metre system or the performance boundary of a mixed XL/non-XL chain.
After maintenance, verify total system length, connector seating, probe gap and target condition before changing monitor scaling. A physical-chain error can look like a calibration problem.
Yes, but only a manufacturer extension cable that makes the probe-plus-extension total exactly 5 m should be used. Do not splice the probe lead; if the available lengths cannot form the required total, stop and select a different official system configuration.
The manufacturer documents XL/non-XL electrical and physical interchangeability for the applicable 3300 5 mm and 8 mm components, but the mixed chain is limited to non-XL performance. Confirm all three component labels and total length before reuse.
A wrong five-metre total, a partly seated connector, a changed probe gap or a disturbed target can shift the signal. Restore and test those physical conditions in that order before changing monitor scaling.
No. Keep the calibrated probe and extension-cable chain at 5 m, and extend only the separate shielded field wiring from the Proximitor to the monitor within the manufacturer limit.
Compare the installed probe family, total system length, mounting footprint, approval requirement and monitor configuration. Do not approve a substitution from connector shape or nominal scale factor alone.
Provide the full nameplate, probe and extension-cable numbers, total system length, mounting-base photograph, monitor type, required approvals, quantity, condition requirement and destination.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts, including new and discontinued products, and purchases these products through independent channels. Apter is not an authorized distributor, dealer or representative of the manufacturers shown on this site. Product names, images, trademarks, brands and logos belong to their respective owners and are used only for identification; their use does not imply affiliation or authorization.
No verified model-specific English PDF is attached to this page. This avoids linking a document that cannot be audited against the complete ordering code.
Send the complete model, full nameplate photograph and installed-system details so the applicable manufacturer document can be checked before supply.
