Item NO.:
21747-080-00Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
0.24KGDimension:
19x19x2cmDescription:
EXTENSION CABLEPrice:
Ask7200 Series 5 mm / 8 mm Proximity Transducer System · Exact-model review for engineering and procurement decisions.
|
Confirm the installed configuration before ordering
Manager JimPei · Model, nameplate and technical-document review
|
Email: sales1@apterpower.com WhatsApp: +8618020776782 |

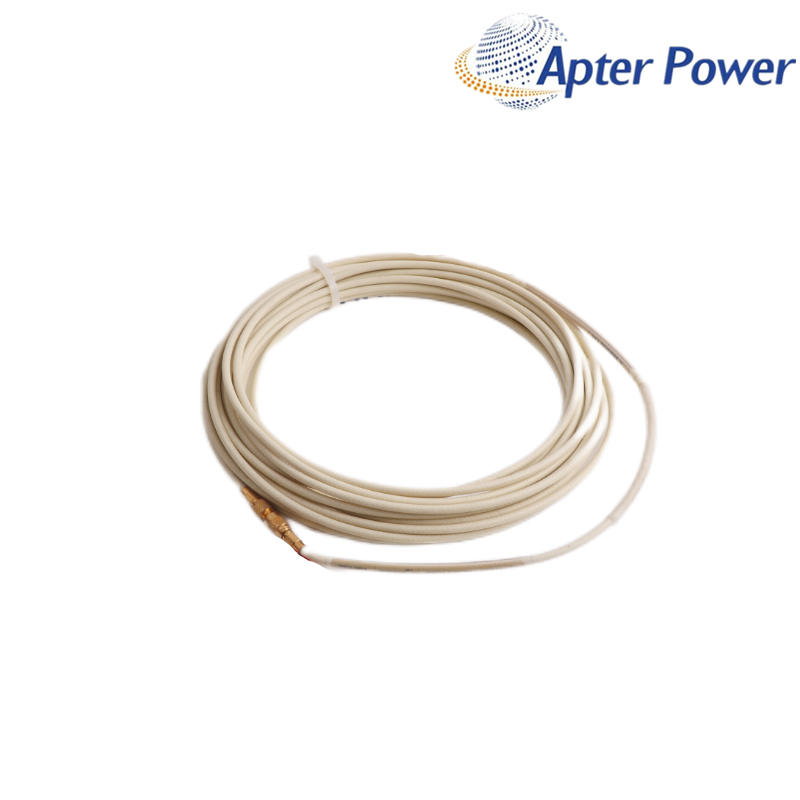

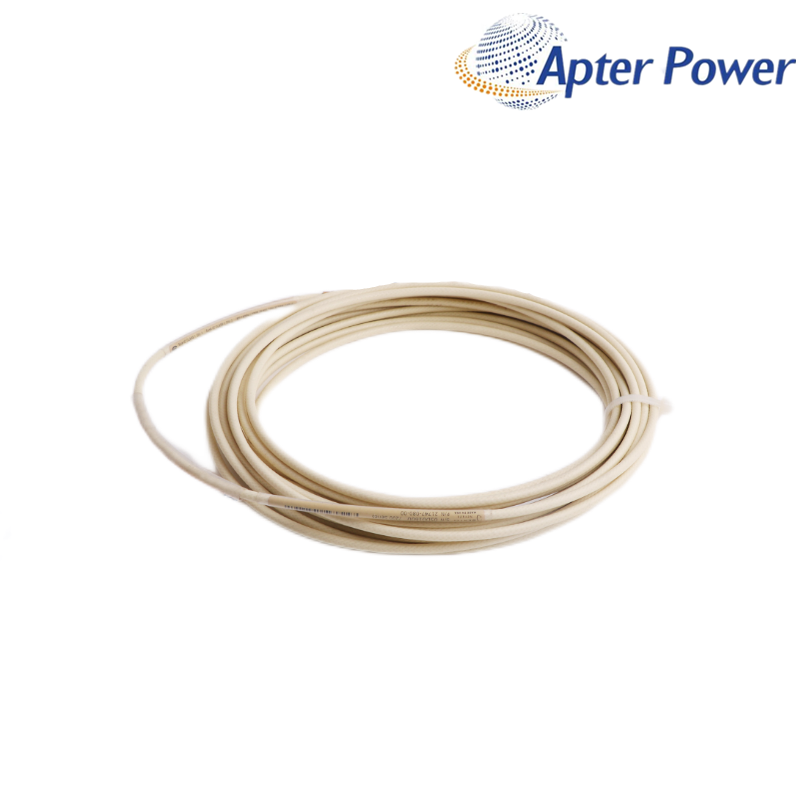

21747-080-00 is the configured Bently Nevada 7200 Series extension cable with an 8.00 m length and no armor. It is commonly used with a 1 m probe lead and the 9 m Proximitor selection so the probe and extension cable form the required nine-metre electrical system.
21747-080-00 is a calibrated-chain component rather than general signal cable. Its length and armor code affect selection, routing and compatibility, so it must not be shortened, spliced or substituted without rechecking the entire probe, cable and Proximitor combination.
Exact 8.00 m extensionThe 080 ordering choice defines an eight-metre cable length. |
Unarmored constructionThe 00 suffix identifies the without-armor option for protected routing conditions. |
Nine-metre chain rolePairs with an appropriate 1 m probe lead and 9 m Proximitor to form the documented system length. |
Changing this eight-metre cable changes the intended electrical system length and can shift the measurement response. Route the full cable and use an official length/armor configuration when the installation requirement differs.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 21747 Extension Cable |
| System context | 7200 Series 5 mm / 8 mm proximity transducer system |
| Ordering structure | 21747-A-B |
| Cable length | 080 = 8.00 m (315 in) |
| Armor option | 00 = without armor |
| System-length rule | Probe plus extension cable designed for a 5 m or 9 m total system |
| Typical matching context | 1 m probe lead plus 8 m cable for a 9 m system |
| Related Proximitor selection | 18745-04 for the documented 9 m system |
Commercial packing weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Installation & Cable ProtectionBecause this is the no-armor option, route it inside suitable protection where crushing, pull, abrasion or maintenance traffic is possible. Select the manufacturer’s armored option when the site design requires mechanical armor. |
Compatibility & System LengthAdd the probe integral lead and this 8 m extension, then match the result to the Proximitor system-length designation. Connector fit alone does not establish a valid calibrated chain. |
Probe-chain verification: Send the probe part number and lead length, extension-cable label, Proximitor code, armor need, route conditions and photographs of the installed connectors.
Yes, when the probe belongs to the documented 7200 family and the chain is paired with the 9 m Proximitor selection. Confirm the probe, extension-cable and Proximitor labels before installation.
This 00 option is unarmored. Use the approved protected route or select the manufacturer’s armored configuration; do not add a covering that forces tight bends, blocks connector access or changes the installation drawing.
A wrong total system length, loose connector, cable damage or disturbed probe gap can change the response. Confirm the one-metre probe plus eight-metre extension, inspect both connectors and restore the gap before changing monitor scaling.
No. This cable connects the probe to the matching Proximitor, which conditions the signal for the monitor. Replace or verify the Proximitor and identify all three component labels before reconnecting the channel.
No. That combination creates a 9 m probe system and requires the 9 m Proximitor option. Stop the installation if the interface label identifies a 5 m system.
Provide the exact cable and probe labels, probe-lead length, Proximitor code, required armor, route conditions, connector photographs, quantity and destination.
Product identity and technical statements were checked against Bently Nevada 7200 Series 5 mm and 8 mm Proximity Transducer System technical and ordering information. Verify the complete installed nameplate, revision, companion components and project drawing before commissioning.
