Item NO.:
21000-28-10-00-217-04-02Order(MOQ):
1Goods Stock:
29Payment:
T/TLead Time：
In stockWeight:
1.34KGDimension:
8.5x8.5x75.5cmDescription:
PROXIMITY PROBE HOUSING ASSEMBLIESPrice:
Ask21000 Proximity Probe Housing Assembly · Exact-model review for engineering and procurement decisions.
|
Confirm the installed configuration before ordering
Manager JimPei · Model, nameplate and technical-document review
|
Email: sales1@apterpower.com WhatsApp: +8618020776782 |

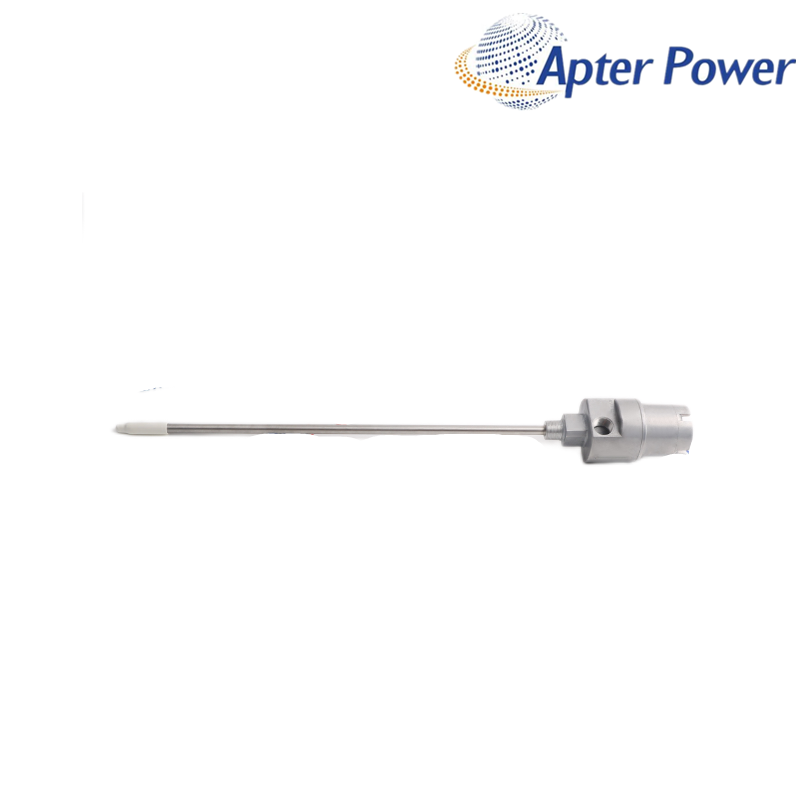

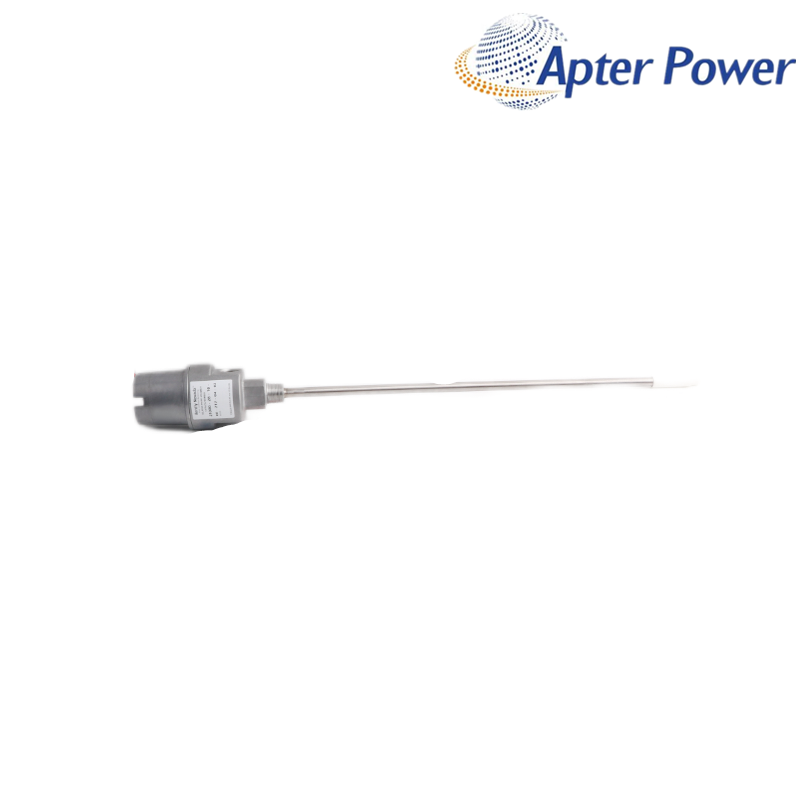

21000-28-10-00-217-04-02 identifies a long-sleeve Bently Nevada 21000 proximity probe housing assembly for a 3300 XL 8 mm probe. The documented configuration uses a 1 m probe cable, no standoff adapter, a 21.7 in case-penetration selection, one 3/4-14 NPT plug and a 3/4-14 NPT mounting thread.
21000-28-10-00-217-04-02 is intended to position and protect the probe through a substantially longer machine-case path. Because the sleeve length exceeds the manufacturer’s support threshold, the mounting drawing must include support near the probe end to control vibration and resonance risk.
21.7 in penetration choiceThe 217 selection defines the long case penetration for this housing configuration. |
Support-dependent installationThe manufacturer requires added sleeve support when standoff plus penetration exceeds 12 in. |
No-standoff 8 mm probe contextCombines the 3300 XL 8 mm probe choice with a no-standoff housing arrangement. |
This configuration exceeds the manufacturer’s 12 in combined-length threshold and requires support near the probe end. An unsupported long sleeve can resonate and disturb the measurement. Stop installation until the support design is shown on the approved drawing.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 21000 Probe Housing Assembly |
| Housing configuration | 3300 XL 8 mm probe, 1 m cable, no standoff and 21.7 in penetration |
| Probe selection | 3300 XL 8 mm probe with selectable approvals |
| Probe-cable option | 10 = 1.0 m cable |
| Standoff option | 00 = none |
| Case penetration | 217 = 21.7 in |
| Sleeve-support rule | Support near the probe when standoff plus penetration exceeds 12 in |
| Fitting option | 04 = one 3/4-14 NPT plug only |
| Port-thread option | 02 = 3/4-14 NPT |
| Body material | Aluminum |
| Sleeve material | 304 stainless steel |
Commercial packing weight and packed dimensions remain in the page logistics fields unless the manufacturer publishes model-specific packing data.
Installation & Mechanical SupportProvide a support close to the probe end and verify its position, rigidity, clearance and service access. The support must stabilize the long sleeve without forcing the probe away from the target. |
Configuration & Cable RoutingThe documented 1 m probe lead must remain longer than the sleeve while leaving routing and connector allowance. Confirm the complete cable path before the housing is mounted. |
Long-sleeve drawing review: Send the full label, machine penetration drawing, support location and detail, probe-system information, cable route, port and fitting requirements, approvals and site photographs.
No. Its 21.7 in no-standoff penetration exceeds the manufacturer’s 12 in support threshold. Stop the installation until support near the probe end is defined on the approved drawing and its clearance and rigidity are verified.
Compare the complete housing label, 21.7 in penetration, no-standoff arrangement, 3/4-14 NPT thread, supplied plug, probe lead and support drawing with the purchase requirement. Hold the item if any selection or support detail is missing.
Use only the matching manufacturer extension cable and Proximitor required for the selected total transducer-system length. Do not splice or shorten the probe lead; identify the complete probe, extension and Proximitor chain before choosing the added cable.
No. The 04 option provides one 3/4-14 NPT plug only. Select any hazardous-area fittings separately under the site classification and verify the completed installation against the required approval conditions.
No. The penetration selection determines probe reach through the machine case. Any shorter configuration requires an approved mechanical redesign; do not change length simply to remove the support.
Provide the complete nameplate code, probe-system labels, machine drawing, 21.7 in penetration requirement, support detail, conduit and fitting needs, site approvals, quantity and destination.
Product identity and technical statements were checked against 21000 and 24701 Proximity Probe Housing Assemblies Datasheet, document 141600 Rev. AC. Verify the complete installed nameplate, revision, companion components and project drawing before commissioning.
