Selection
- Measure the required insertion depth and confirm that the 80/160 mm geometry matches the existing probe.
- Match the 1.0 m armored probe to the documented extension cable and Proximitor Sensor.
Item NO.:
330104-08-16-10-02-00Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
24.3x4.6x15.5cmDescription:
PROXIMITY PROBESPrice:

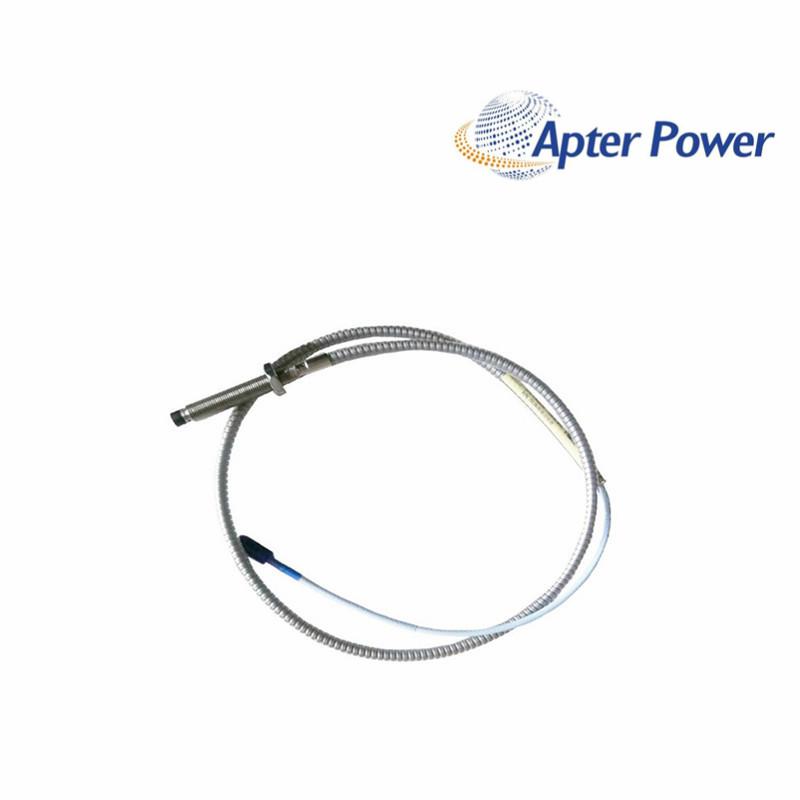

AskAn armored M10 × 1 probe with an 80 mm unthreaded section, 160 mm case and 1.0 m standard lead for deeper mounting reach.
Long-reach brackets and housings often need more than a matching thread. With an 80 mm unthreaded section and a 160 mm overall case, 330104-08-16-10-02-00 is intended for metric 3300 XL 8 mm installations where the probe must pass through a deeper mounting arrangement.
The armored construction of 330104-08-16-10-02-00 helps protect the 1.0 m lead along exposed routes, while its standard ClickLoc connection is supplied without a connector protector. Cable support and joint protection therefore remain part of the site installation.
Before the locknuts are tightened, compare the available insertion depth with the machine drawing or the removed probe. Although 330104-08-16-10-02-00 may enter the same M10 × 1 mount, an incorrect reach can leave the tip too far from the target or outside the useful adjustment range.
Measure the required insertion depth and compare it with the 80 mm unthreaded section and 160 mm case. If the adjustment range cannot place the tip at the working gap with secure thread engagement, select a different geometry.
Add support so the armor weight and machine vibration are carried by the route rather than the probe body. Then reset the gap and confirm that the baseline remains stable after the cable is moved gently.
Check tip position and mechanical loading first because the long armored body can sit differently from the removed probe. If the gap is stable, continue with connector seating, target condition and channel configuration.
Use it only when the existing cable and 1 m probe lead equal the system length required by the installed Proximitor Sensor. Confirm the full chain rather than relying on connector appearance.
Confirm insertion depth, target clearance, thread engagement and available adjustment. This prevents the 160 mm case from bottoming out while the tip still appears to be in the correct area.
Movement-sensitive output points toward connector, cable or mechanical support issues. Stabilize the armor and test continuity before replacing the Proximitor Sensor or changing monitor settings.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
