Mount the probe
The universal holder accommodates probe diameters from 5 mm to 19 mm.
Item NO.:
TK3-2EOrder(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
4.0KGDimension:
2.5x25.8x12cmDescription:
CALIBRATION INSTRUMENTPrice:
Ask

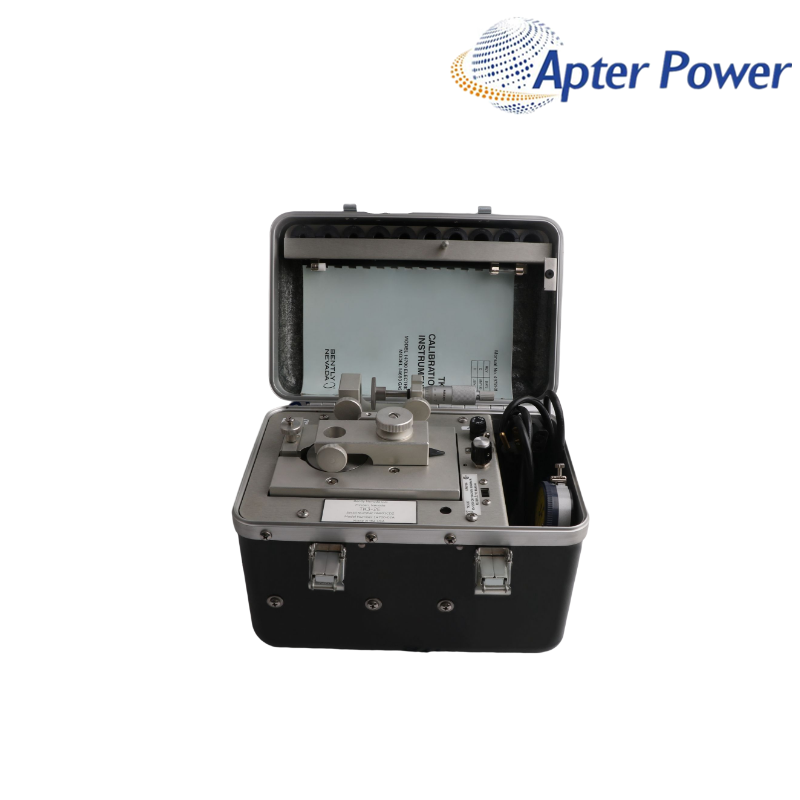

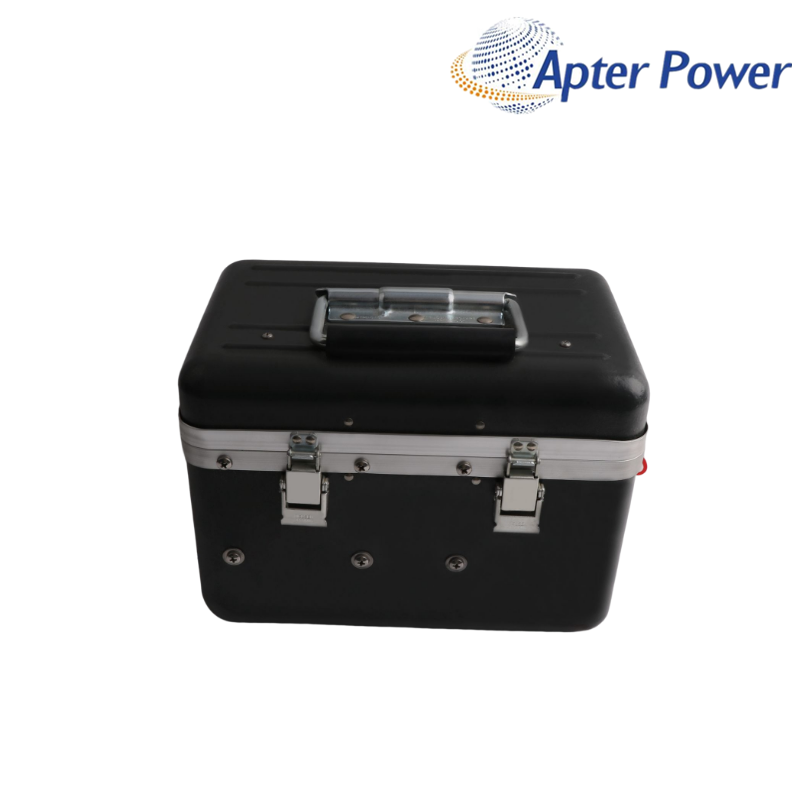

Bently Nevada TK3-2E is an electric proximity-system test kit used to simulate shaft position and vibration. It gives reliability teams a known mechanical reference for checking the response of a proximity transducer system and the corresponding monitor indication.
The removable spindle micrometer supports static position checks, while the motor-driven wobble plate creates a repeatable vibration input. A universal probe mount accepts probe diameters from 5 mm to 19 mm, making the kit useful across several Bently Nevada proximity families.
The universal holder accommodates probe diameters from 5 mm to 19 mm.
The micrometer or electric wobble plate produces a repeatable position or vibration reference.
Technicians compare the probe output and monitor reading with the known mechanical input.
Supports both static position checks and simulated vibration response.
The universal fixture reduces the need for separate holders across common proximity probe sizes.
A known input helps teams evaluate the measurement chain before returning equipment to service.
| Test function | Simulates shaft position and vibration |
|---|---|
| Probe diameter range | 5 mm to 19 mm |
| Vibration amplitude range | 50-254 µm peak-to-peak (2-10 mils) |
| Maximum wobble speed | 0-5000 cpm ±1000 cpm |
| Micrometer range | 0-25.4 mm (0-1000 mils) |
| Target material | AISI 4140 alloy steel |
| Current family size | 195 × 299 × 248 mm |
| Current family weight | 5.22 kg |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Used by reliability teams, service workshops and training groups to check proximity probes, Proximitor sensors and vibration-monitor indications during planned maintenance, troubleshooting and instrument training.
Yes. The removable micrometer provides a known static displacement, while the electric wobble plate supplies a repeatable vibration input for comparison.
Yes. Applying a known mechanical input gives technicians a practical reference for comparing probe-system output with the monitor indication.
The universal mount covers probe diameters from 5 mm to 19 mm, reducing the need for a dedicated fixture for each common probe size.
Yes. The published procedure allows a basic comparison using the probe scale factor and a multimeter; more detailed waveform work may still use suitable diagnostic equipment.
No. It is a portable test kit for bench, field and training checks, not a permanent part of the operating measurement loop.
Send the label, scale units, supply voltage, power-cord requirement and probe families to be tested, together with quantity and delivery country.
Complete order codes and application details support a clear, accurate quotation.
Commercial terms and available traceability are confirmed with the offer.
Stock position and shipping options are coordinated around your maintenance schedule.
