Item NO.:
991-06-70-01-00Order(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
24.3x4.6x15.5cmDescription:

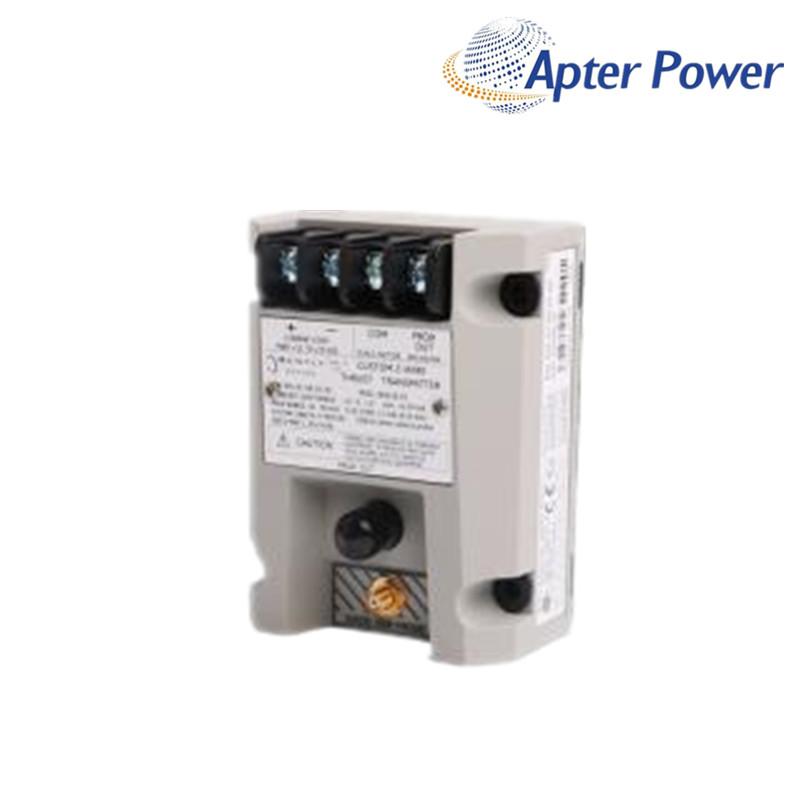

THRUST TRANSMITTERPrice:
Ask991-06-70-01-00 is a two-wire, loop-powered transmitter for axial-position measurement on compatible rotating machinery. The 06 option defines a 0.6–0–0.6 mm full-scale range and the output is proportional to shaft axial position rather than mechanical thrust force.
991-06-70-01-00 accepts a matched 3300 NSv probe and extension-cable chain with a 7.0 m total system length, then provides a 4–20 mA signal to the connected control system. It should not be mixed with 3300 XL probe families by connector appearance alone.
991-06-70-01-00 uses 35 mm DIN-rail clips and the 00 No Approvals option. The 991 provides a simple transmitter interface, but Baker Hughes states that it does not replace the functions of a complete continuous machinery-protection system.
No. It measures shaft axial position and outputs a proportional 4–20 mA signal; any thrust interpretation belongs to the machinery protection and control strategy.
It specifies a 7.0 m matched system length. The 3300 NSv probe and extension-cable lengths must add to that total.
No automatic substitution should be made. The 991 is documented for a matched 3300 NSv proximity probe and extension cable.
Option 01 specifies 35 mm DIN-rail clips. Confirm rail space, wiring bend radius and service access in the panel.
No. The final 00 is the Not Required option; classified applications need an appropriately approved configuration and verified delivered markings.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
