Selection
- Provide the full custom identity and nameplate photo; do not shorten the XX, CN or MOD portions.
- Confirm that the control channel is scaled for a 0-5 mil peak-to-peak 990 output.
Item NO.:
990-05-XX-03-CN 104M6732-01Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.46KGDimension:
9.8x7.3x6cmDescription:
990 Vibration TransmitterPrice:
AskA listed 990 two-wire vibration transmitter identity using a 0-5 mil peak-to-peak range and combined DIN-clip/screw mounting arrangement.

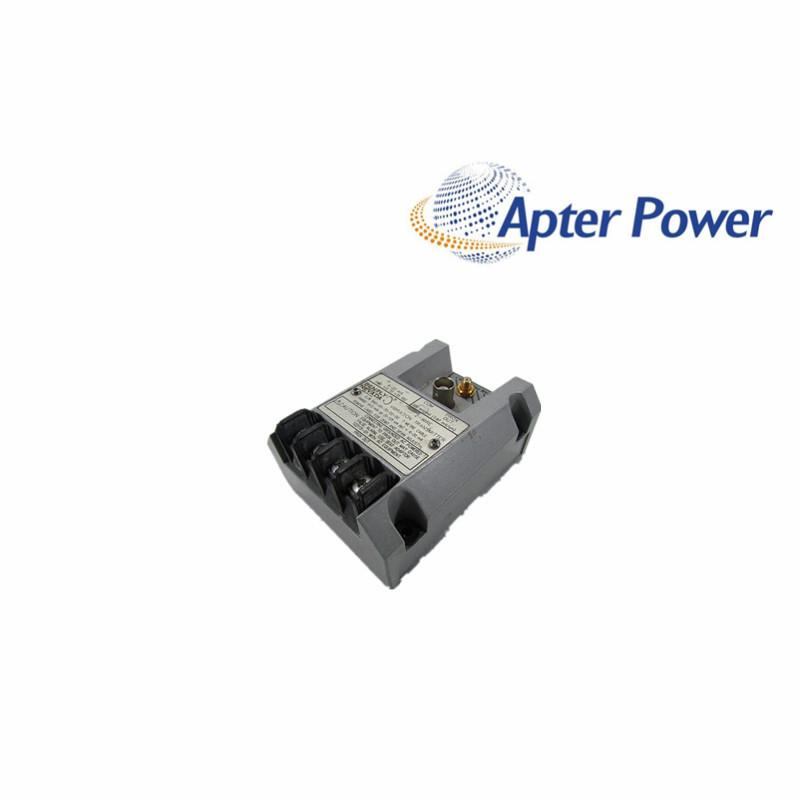

Bently Nevada 990-05-XX-03-CN 104M6732-01 is a two-wire vibration transmitter that converts a matched proximity-probe signal into a 4-20 mA overall-vibration input for PLC, DCS and machinery-monitoring channels.
The confirmed 05 range provides 0-5 mil peak-to-peak measurement, while option 03 supplies DIN clips and mounting screws. 990-05-XX-03-CN 104M6732-01 also provides a buffered PROX OUT connection for signal-path checks without interrupting the control loop.
Before ordering 990-05-XX-03-CN 104M6732-01, purchasing teams should match the complete custom identifier, installed probe chain, loop scale and cabinet mounting. The XX, CN and 104M6732-01 portions must remain on the quotation and receiving record rather than being replaced by a standard 990 selection.
It is suitable when the control system needs a two-wire 4-20 mA overall-vibration signal from a matched 3300 NSv proximity chain. The selected 0-5 mil peak-to-peak span must also match the engineering range configured in the receiving analog channel.
The approved loop sheet should map 4 mA to the lower end and 20 mA to 5 mil peak-to-peak. A commissioning comparison at zero, an intermediate value and span gives the buyer a usable acceptance record for both the transmitter and the DCS scaling.
No. Its input is intended for a matched 3300 NSv probe and extension-cable chain, so a mechanically similar probe does not establish electrical compatibility. The probe, extension cable and transmitter must be treated as one calibrated measurement path.
The transmitter requires 12 to 35 Vdc at its terminals and permits a maximum loop resistance of 1,000 ohms at 35 Vdc. The cable burden and analog-input resistance therefore need to fit within the available supply headroom at full-scale current.
PROX OUT provides a buffered view of the proximity signal and is useful for separating a sensing-chain issue from a 4-20 mA loop or DCS-scaling issue. A credible buffered signal with an incorrect control-system value directs attention toward the analog loop rather than the probe chain.
The confirmed range and mounting codes do not define every custom character or the 104M6732-01 identifier. Keeping the entire identity on the quotation and receiving record reduces the risk of substituting a standard 990 that shares only the visible family and range.
Products supplied by ApterPLC are covered for 12 months under the applicable sales terms. Keep the complete unit nameplate, packing record and transaction details so the exact product can be identified during support.
The selected document contains the official product description, configuration data and engineering information relevant to 990-05-XX-03-CN 104M6732-01. Unrelated catalog pages have been removed where filtering was needed.
|
