Selection
- Match 5 mil full scale, the 5 m NSv chain and the DIN-rail cabinet layout.
- Verify the code 05 approvals against the actual site classification and unit markings.
Item NO.:
990-05-50-01-05Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.55KGDimension:
7.8x3x6.2cmDescription:
TRANSMITTERPrice:

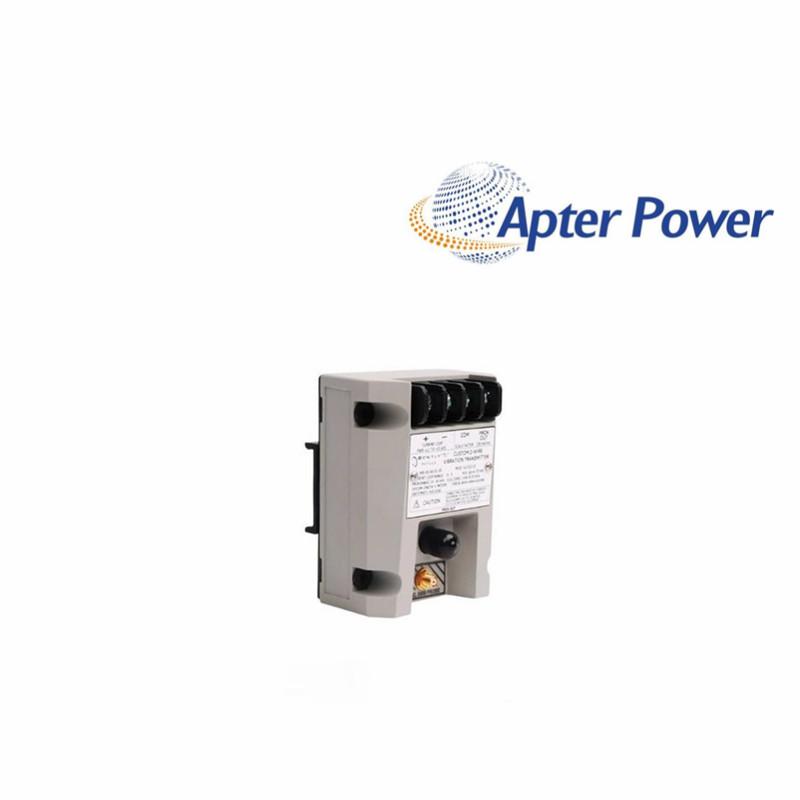

AskA 5.0 mil full-scale, 5.0 m DIN-rail vibration transmitter with multi-agency approvals and a 4–20 mA output.
This compact transmitter brings shaft-relative vibration from a 3300 NSv proximity probe into a standard two-wire 4–20 mA control-system loop. It is well suited to smaller compressors, pumps, motors and fans where operators need a practical trend or protection signal without installing a full rack.
The suffix defines a 0–5 mil peak-to-peak full scale, a matched 5.0 m probe-and-cable system, DIN-rail clips and the multi-approval option. Those choices affect channel scaling, cabinet installation and the exact field wiring, so they should be compared with the existing transmitter label rather than chosen by family name alone.
A front Prox Out connection supports detailed checking, while the loop current remains the signal sent to the control system. Because Prox Out is non-isolated, grounded AC test equipment should only be connected through the manufacturer-recommended isolation method.
It fits a DIN-rail control enclosure serving a small compressor, pump, motor or fan that needs a 5 mil vibration range and a 5 m NSv signal chain.
Map 4 mA to zero vibration and 20 mA to 5 mil peak-to-peak, then confirm that the engineering units and alarm values match the machinery strategy.
The transmitter uses that range to indicate Not OK. Check supply voltage at the unit, loop continuity, probe gap, connector condition and the matched NSv components.
Verify the supplied-unit markings, barriers, wiring method and area-classification drawing; approval of the transmitter does not replace a compliant installation.
Use it to check waveform, bias and probe behavior, but follow the isolation guidance because the output is non-isolated.
Record loop current, Prox Out bias, machine speed and load, final probe gap and control-system scaling while the machine is in a known healthy state.
Products supplied by ApterPLC are covered for 12 months under the applicable sales terms. The complete nameplate and transaction record help our team identify the exact unit when support is needed.
This Bently Nevada document covers operation, electrical specifications, wiring and ordering information for 990-05-50-01-05. It provides a practical reference for model selection, installation planning and maintenance.
|
