3300 NSv probe
Measures shaft motion in compact machinery clearances.
Item NO.:
990-04-70-01-00Order(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
0.5KGDimension:
7.6x10.2x6.3cmDescription:
VIBRATION TRANSMITTERPrice:
Ask

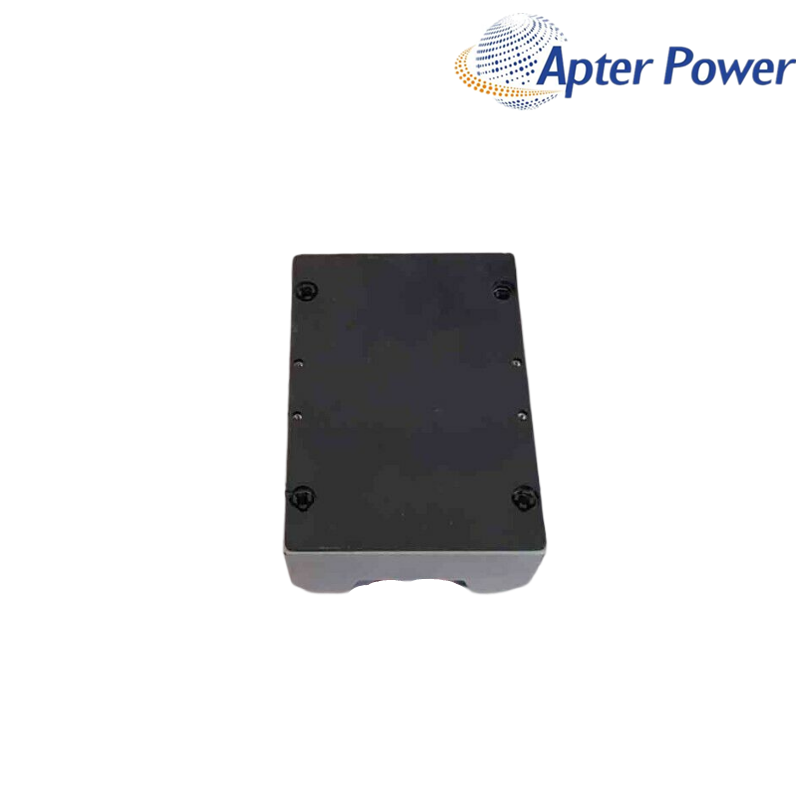

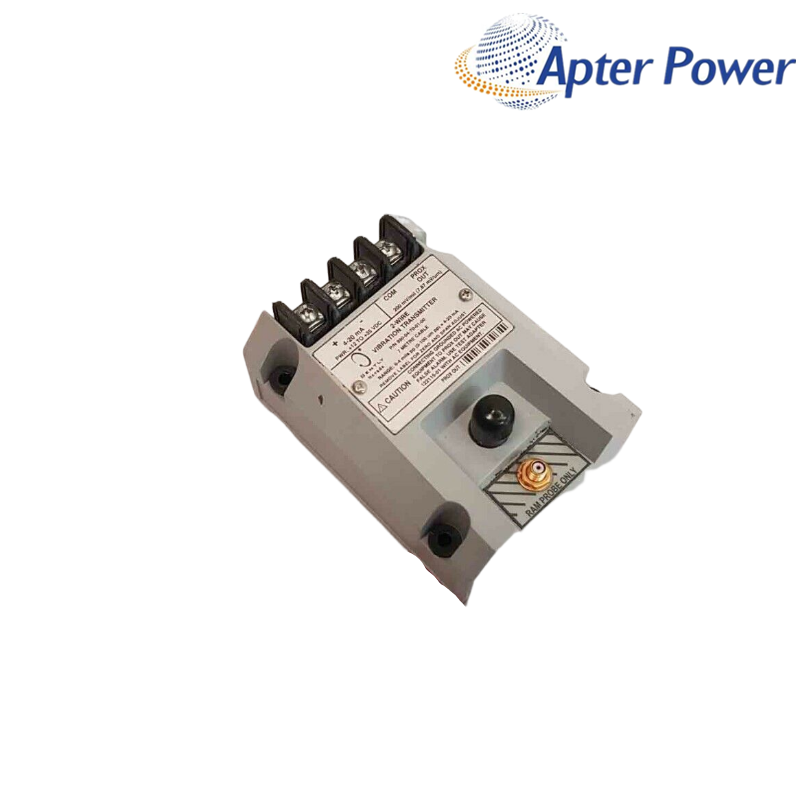

Bently Nevada 990-04-70-01-00 is a two-wire vibration transmitter designed for small compressors, pumps, motors and fans. It accepts a matched 3300 NSv proximity probe and extension cable, then provides a proportional 4-20 mA peak-to-peak vibration signal to a PLC or other machinery control system.
This exact configuration provides a 0-100 µm peak-to-peak full-scale range, a 7 m system length and 35 mm DIN-rail mounting. It also provides a PROX OUT connection for dynamic vibration and gap-voltage access during maintenance diagnostics.
Measures shaft motion in compact machinery clearances.
Converts the proximity signal into the selected vibration range.
Feeds proportional vibration data to PLC alarm and trend logic.
The integrated Proximitor function reduces separate hardware in tight OEM panels.
A standard 4-20 mA loop fits common PLC and machinery-control inputs.
PROX OUT gives technicians access to dynamic vibration and gap information when required.
| Full-scale range | 0-100 µm peak-to-peak (0-4 mils) |
|---|---|
| System length | 7.0 m (23.0 ft) |
| Mounting | 35 mm DIN-rail clips |
| Main output | Two-wire 4-20 mA proportional vibration signal |
| Input | One 3300 NSv proximity probe and extension cable |
| Power | +12 to +35 Vdc at the transmitter |
| Frequency response | 5 Hz to 6 kHz, +0/-3 dB |
| Operating temperature | -35°C to +85°C |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Designed for overall shaft-vibration trending and control-system alarm input on centrifugal air compressors, small pumps, motors and fans where panel space is limited and a simple 4-20 mA interface is preferred.
Yes. It combines NSv signal conditioning with a two-wire 4-20 mA output for a standard control-system analog input.
Yes, when the installed NSv probe and extension cable form the intended 7 m electrical system and their connectors are in suitable condition.
Yes. PROX OUT provides access to dynamic vibration and gap voltage for suitable diagnostic equipment while the main loop supplies the control signal.
Its Not OK behavior is designed to indicate a transducer-system problem rather than presenting a normal vibration value. The probe, cable and transmitter should then be assessed as one loop.
The 01 option provides 35 mm DIN-rail clips. Panel space, loop supply and the connection to the matched NSv system should be planned together.
Send the transmitter label, NSv probe and cable labels, PLC input details, panel photo, quantity and delivery country.
Complete order codes and application details support a clear, accurate quotation.
Commercial terms and available traceability are confirmed with the offer.
Stock position and shipping options are coordinated around your maintenance schedule.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
This manufacturer document provides the ordering details and technical context used to identify the correct 3300 NSv Vibration Transmitter configuration.
