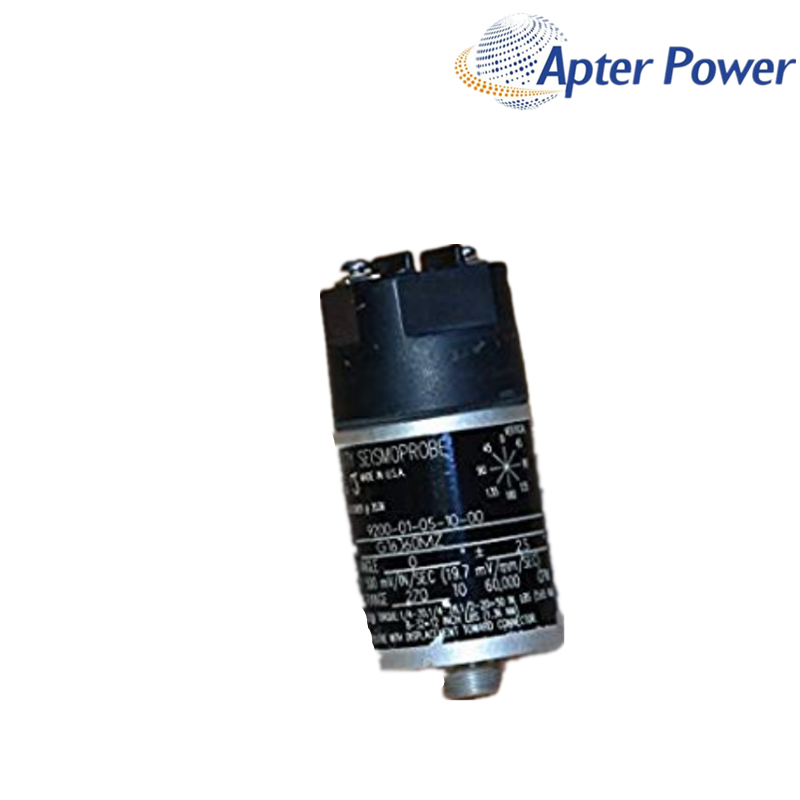

Seismoprobe transducer
Item NO.:
9200-01-05-10-00Order(MOQ):
1Goods Stock:
21Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
2.2x12.4x12.6cmDescription:
SEISMOPROBE TRANSDUCERPrice:
AskA top-terminal velocity transducer with a 0° orientation option, 4.5 Hz minimum operating frequency and an M10 × 1 mounting stud.
0° ±2.5° · 4.5 Hz minimum · top terminal block · circular M10 × 1 stud · no approvals
9200-01-05-10-00 is a 9200 Seismoprobe Velocity Transducer in the 9200 / 74712 Seismoprobe Velocity Transducers. A top-terminal velocity transducer with a 0° orientation option, 4.5 Hz minimum operating frequency and an M10 × 1 mounting stud.
Its documented configuration is 0° ±2.5° · 4.5 Hz minimum · top terminal block · circular M10 × 1 stud · no approvals. These order-code choices define how the component fits the signal path and should be reviewed together rather than by appearance alone.
For maintenance or procurement, 9200-01-05-10-00 should be matched to the installed system role, connection architecture and complete manufacturer label. ApterPLC can review those details before quotation.
The selection identity for 9200-01-05-10-00 is built from the full code and its verified system role.
Seismoprobe transducer
0° ±2.5° / 4.5 Hz
Top terminal block
Circular M10 × 1 stud
No approvals
Mount the transducer in its documented 0° orientation.
Moving-coil motion generates a velocity-proportional signal without external sensor power.
Route the two-wire output to the supported velocity-monitoring channel.
| Measurement principle | Moving-coil velocity transducer |
|---|---|
| Sensitivity | 20 mV/mm/s (500 mV/in/s) ±5% |
| Frequency response | 4.5 to 1000 Hz |
| Dynamic operating range | 2.54 mm peak-to-peak displacement |
| Velocity range | 25 mm/s at 100 Hz |
| Shock resistance | 50 g peak |
| Connection | Top terminal block; no integral cable |
| Mounting | Circular M10 × 1 stud |
| Maximum lead length | 305 m |
| Approval option | 00 — no approvals |
| Payment | T/T |
| Goods Stock | 21 |
| Weight | 0.1KG |
| Dimension | 2.2x12.4x12.6cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The documented response for this option begins at 4.5 Hz, so lower-frequency motion is outside its stated band. Select a sensor only after the expected vibration spectrum is compared with that limit.
It does not; the moving-coil element generates its own two-wire signal. Confirm that the receiving channel expects a velocity-transducer input rather than a powered 4–20 mA transmitter.
This exact option uses a top terminal block and includes no integral cable. Rework the connection only if the enclosure, lead routing and receiving input all support that terminal arrangement.
The base option is a circular M10 × 1 stud and the transducer is ordered for 0° ±2.5° operation. Confirm the machine thread and the final orientation before installation.
The datasheet permits up to 305 m of lead wire, but the route still needs a receiving system suitable for the sensor output. Review the complete field wiring rather than treating distance as the only criterion.
Include the orientation, minimum frequency, top-terminal connection and M10 × 1 mounting requirement. Those choices distinguish this execution from visually similar 9200 variants.
Complete labels are compared with the official order-code structure.
Connected probes, cables, I/O and monitoring roles are reviewed together.
Logistics and project timing are confirmed with the commercial offer.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the full 9200-01-05-10-00 label and order reference.
Add connector, mounting and associated signal-path photos.
Describe the observed symptom and operating context clearly.
Baker Hughes 9200 and 74712 Seismoprobe Velocity Transducers Datasheet 141626 Rev. V is the official family document used to verify this product identity, order-code fields and applicable technical context.
Document access: Request the verified manufacturer datasheet for the exact model offered.
