Confirm the installed transducer uses the compatible two-pin interface.
Item NO.:
84661-34Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.42KGDimension:
110x26x40cmDescription:
CABLEPrice:

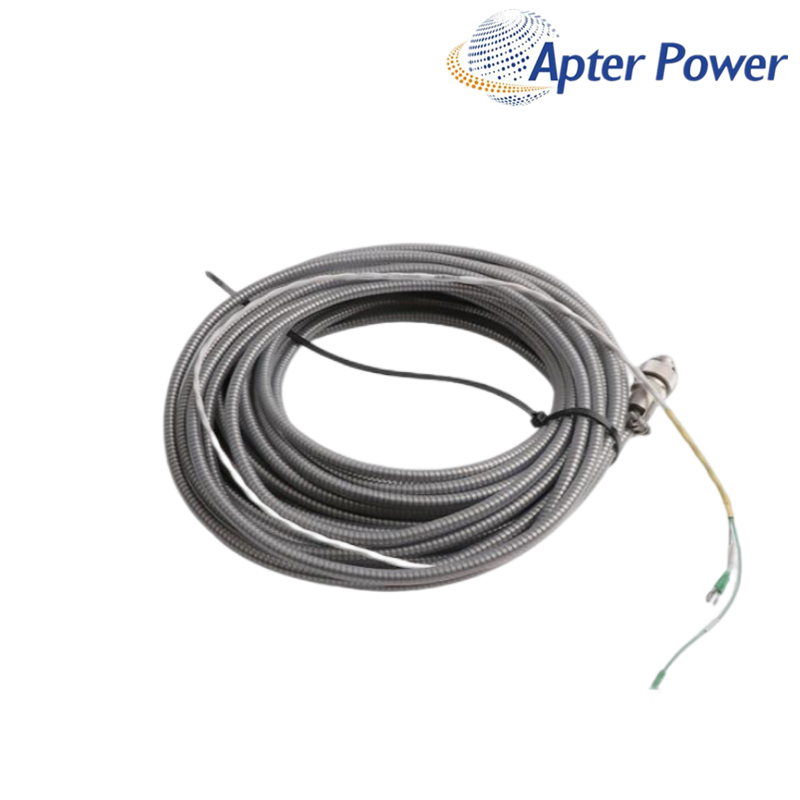

AskA 34 ft armored, shielded two-conductor cable with a moisture-resistant female connector and monitor-end terminal lugs.
34 ft · 22 AWG shielded pair · stainless-steel armor · female connector to terminal lugs84661-34 is a 34 ft armored interconnect cable used between compatible Bently Nevada velocity transducers and monitoring or data-collection inputs. The 34 suffix specifies cable length in feet.
The 84661-34 construction uses a two-conductor twisted, shielded 22 AWG cable with stainless-steel armor, a two-socket moisture-resistant female connector at one end and terminal lugs at the other.
Before installing 84661-34, compare the transducer connector, route length, temperature, grounding and terminal polarity. These details provide a stronger match than external appearance alone.
Armored interconnect cable
34 ft cable length
| VERIFIED TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Component | Armored interconnect cable |
| Cable length | 34 ft (approx. 10.4 m) |
| Conductors | 2-conductor twisted pair |
| Wire size | 22 AWG (0.5 mm²) |
| Shielding | Shielded |
| Armor | Stainless steel |
| Transducer end | 2-socket moisture-resistant female connector |
| Monitor end | Terminal lugs |
| Operating temperature | -50 to +120 °C |
| Documented length range | 3 to 99 ft |
| Primary use | Monitor or vibration data collector connection |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Confirm the installed transducer uses the compatible two-pin interface.
Verify 34 ft reaches the panel without coils, tension or unsupported spans.
Restore shield termination and plant grounding exactly as documented.
Photograph and label the monitor-end lugs before disconnection.
The numeric suffix specifies length in feet. Allow for routing, bend radius, service loops and termination position before ordering.
No. Confirm the transducer connector and the current family document because some housings and test connections use different cables.
Follow the instrument drawing and plant grounding practice. Preserve the original shield termination instead of grounding both ends by assumption.
Armor provides mechanical protection, but it also changes routing space and bend behavior. Use it when the installed environment and BOM require armor.
Check polarity, shield termination, connector seating, routing near power cables and damage to the cable or transducer connection.
Send the transducer label and connector, the full cable label, monitor terminals and the installed route.
Complete labels and order fields are checked before quotation.
Probe, cable, rack and monitoring roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and available remedy follow the written quotation and sales agreement.
Provide the complete 84661-34 label and order reference.
Add mounting, connector, rack and signal-chain photos.
Describe the symptom, operating state and first occurrence.
Include the applicable sales document and shipment date.
Share the complete product label and tell us whether you need a datasheet, user manual, wiring diagram or other technical document. Installed-system details can help us identify the most relevant available manufacturer material.
Our team will review the available documents and help match the closest useful file for 84661-34.
