No onboard relay
Supports installations where relay or alarm switching is provided outside the terminal-board assembly.
Item NO.:
81544-01Order(MOQ):
1Goods Stock:
26Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
5x9.8x22.8cmDescription:
TERMINAL BOARDPrice:
AskShare the complete product label, required quantity and delivery country. Our team will help compare the model with your installed system and purchasing needs.

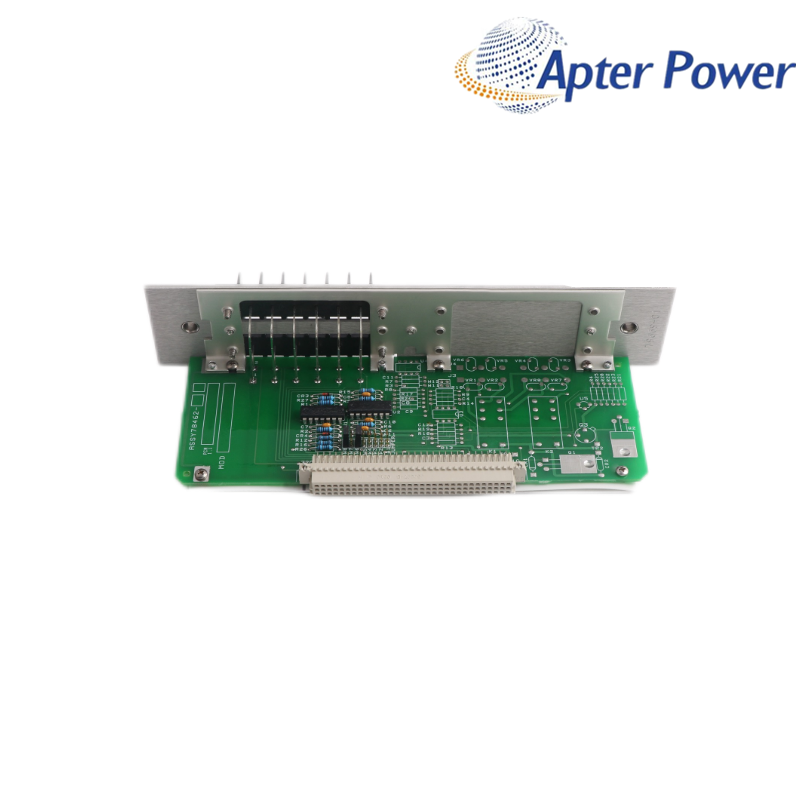

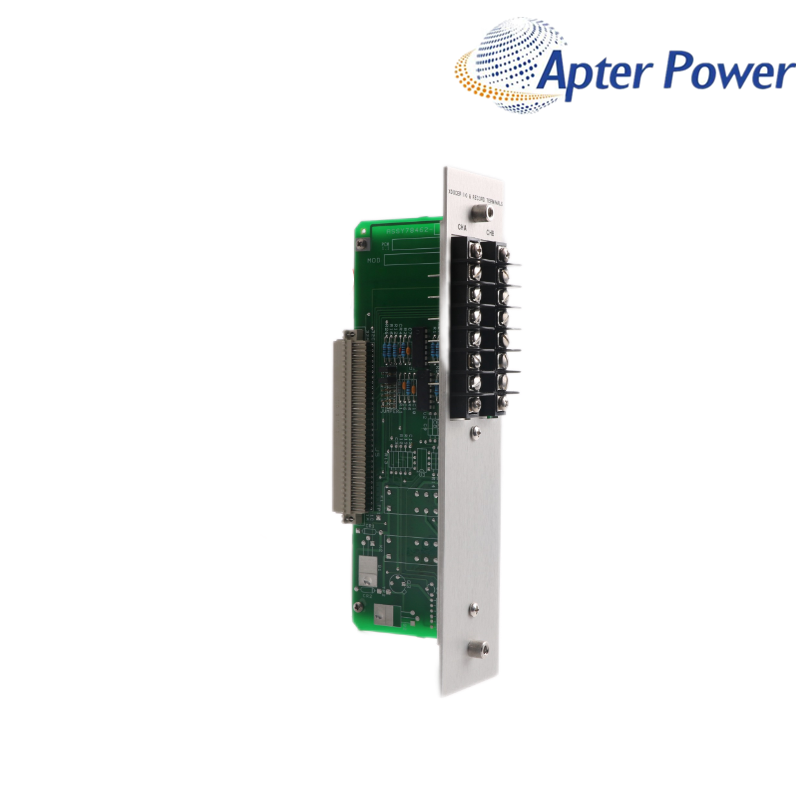

81544-01 is a legacy terminal board for compatible Bently Nevada 3300 monitor arrangements and does not include an onboard relay. It provides the field-termination role required by systems where alarm switching is handled elsewhere.
The no-relay design is the key buying distinction for 81544-01. Matching the parent monitor and terminal arrangement helps buyers avoid confusion with relay-equipped boards and supports a cleaner replacement process.
Supports installations where relay or alarm switching is provided outside the terminal-board assembly.
Provides the terminal interface used by the documented compatible 3300 monitor arrangement.
Its no-relay role distinguishes it from the relay-equipped 81545-01 terminal board.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Part number | 81544-01 |
| Product role | Legacy terminal board |
| Relay configuration | No onboard relay |
| System context | Documented compatible 3300 monitor arrangement |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
For an accurate 81544-01 quotation, please share the board and parent monitor labels, terminal-side photos and any available system drawing. This helps our team match the no-relay board to the installed 3300 arrangement.
Please also include the required quantity, delivery country and whether alarm switching is handled by separate equipment.
Provides field termination for a compatible legacy 3300 monitor where relay action is handled outside the terminal-board assembly.
It is the documented no-relay selection, which suits systems where alarm or output switching is handled elsewhere in the installed arrangement.
The parent monitor label, board orientation, terminal-side photos and any available drawing provide the most useful compatibility context.
Not as a like-for-like change. Adding an onboard relay changes the system role and requires a documented compatibility and wiring review.
Field-wire placement, common and shield handling, jumper positions, terminal condition or the connected sensor path can all affect the restored channel.
The decisive difference is the relay configuration: 81544-01 has no onboard relay, while 81545-01 includes a relay path.
Yes. Photos of the parent monitor, terminal layout, board shape and external alarm arrangement can help our team identify what additional evidence is needed.
Legacy automation partsWe support enquiries for established monitoring, relay and terminal-board products.
Model-matching supportLabels and application details help our team narrow the correct spare.
Order coordinationOur team supports quotation, delivery communication and after-sales follow-up.
No additional official model variant is listed for this page. Please use the Product Model at the top of the page for your enquiry.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names, images, trademarks, brands and logos are the property of their respective owners and are used for identification only; their use does not imply affiliation or authorization.
We carefully match technical documents to the product version you are using. Please send a clear photo of the complete product label, tell us whether you need a datasheet, user manual or wiring diagram, and include any relevant application details.
Our team will review the available manufacturer information and help locate the most relevant PDF for your enquiry.
|
