System length
Retain the five-metre electrical system length.
Item NO.:
76683-50Order(MOQ):
1Goods Stock:
6Payment:
T/TLead Time：
In stockWeight:
0.3KGDimension:
6x5x8cmDescription:
PROXIMITORPrice:

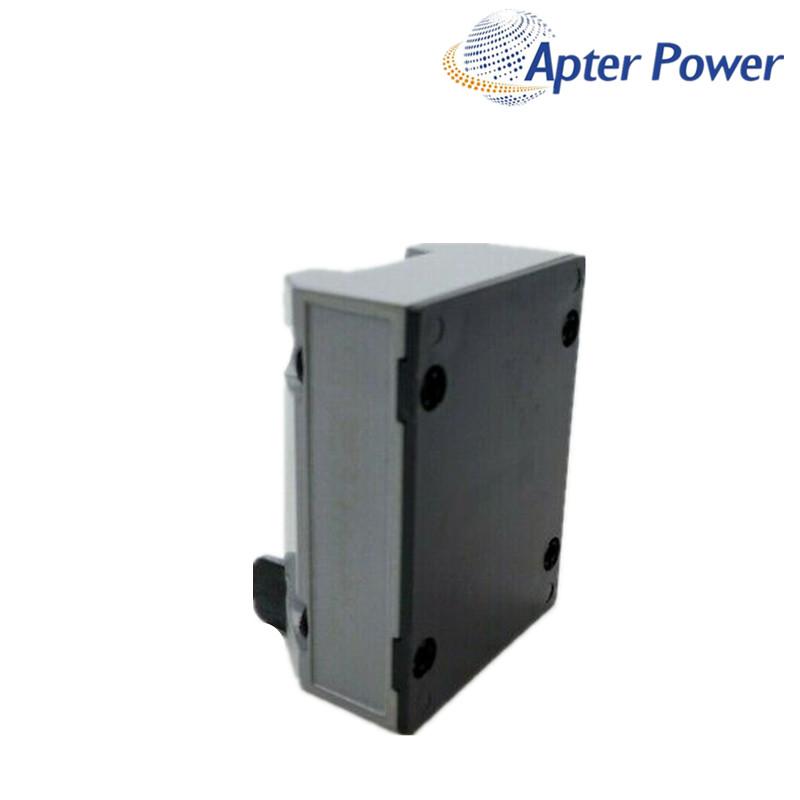

AskA Proximitor Sensor for a 35 mm extended-range proximity system with a combined electrical length of 5 metres.
76683-50 is the five-metre Proximitor Sensor option in the Bently Nevada 35 mm Extended Range Proximity Transducer System.
For 76683-50, the sensor accepts one noncontacting 7200 Series 35 mm probe and extension cable, operates from -18 Vdc to -24 Vdc, and conditions the signal for the monitor channel.
For 76683-50, use the complete probe, cable and sensor identity. A 76683-90 nine-metre sensor is not a like-for-like substitute for a five-metre chain.
Retain the five-metre electrical system length.
Use only the documented 7200 Series 35 mm probe and cable.
Check power polarity, shield termination and monitor-channel wiring.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Proximitor Sensor |
| Product family | 35 mm Extended Range Proximity Transducer System |
| System length option | 50 — combined electrical length of 5 m |
| Sensor input | One 7200 Series 35 mm probe and extension cable |
| Power | -18 Vdc to -24 Vdc at 12 mA maximum |
| Output resistance | 50 Ω |
| System linear range | 12.7 mm (500 mils) |
| Nominal average scale factor | 0.79 V/mm (20 mV/mil) |
| Sensor material | A380 aluminum |
| Operating / storage temperature | -34°C to +100°C (-29°F to +212°F) |
| Field-wiring limit | 305 m (1,000 ft) maximum to monitor |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The two options represent different system lengths, so the complete probe, cable and sensor chain should be reviewed before any change. A nine-metre sensor is not a like-for-like five-metre choice.
Confirm power polarity, shield termination, field-wiring route and the connected 7200 Series 35 mm probe. This protects the signal path from a family or wiring mismatch.
Record supply voltage, initial gap or bias value, monitor response and the complete five-metre component chain for future maintenance comparison.
Begin with sensor power, shield termination, connector condition and the five-metre probe-chain identity before changing monitor settings.
The enclosure is not enough; the -50 system length and the 35 mm probe family are the decision-critical identifiers.
Provide the sensor label, probe label, cable label, terminal wiring and monitor-channel context so the full system can be reviewed.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
Request the model-specific manufacturer document and confirm that its revision matches the delivered hardware.
|
