Rack data
Static values and statuses originate from the configured monitor modules in the 3500 rack.

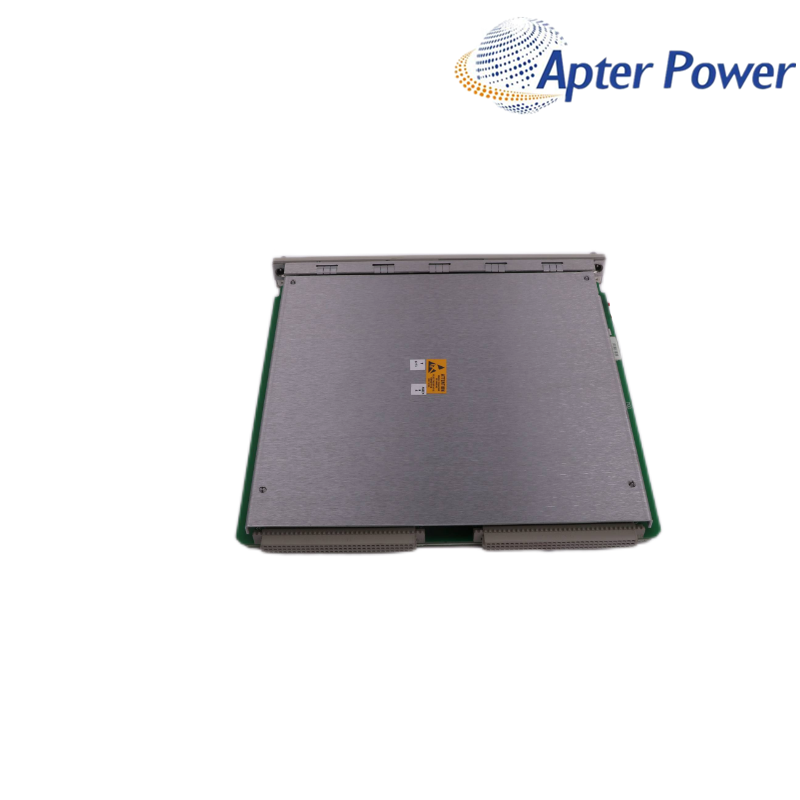

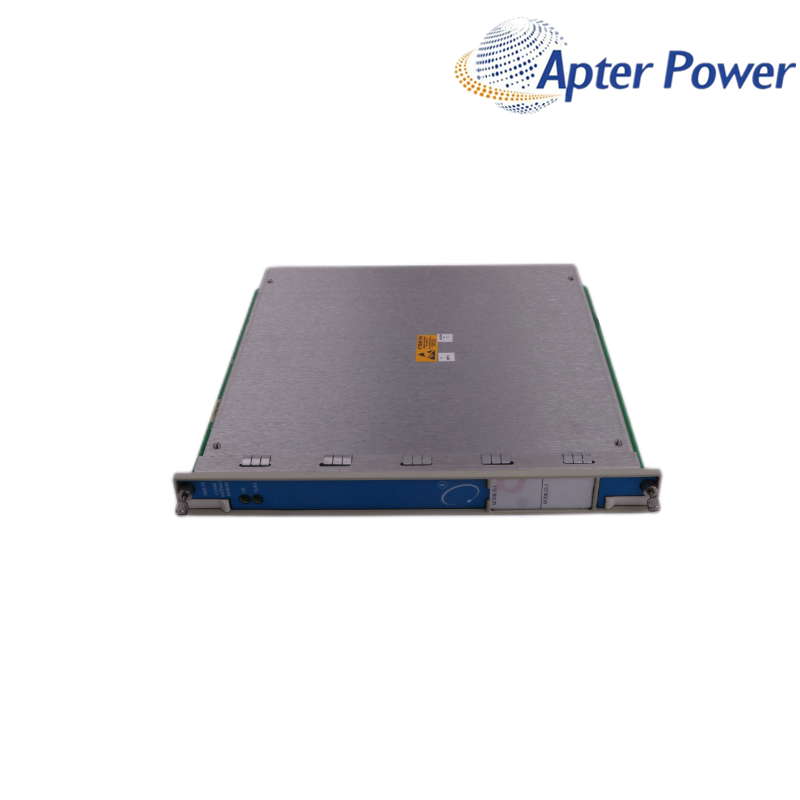

Item NO.:
3500/90Order(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockDescription:
MODULE COMMUNICATION GATEWAY MODEL TYPEPrice:
AskBently Nevada 3500 System
A legacy-gateway page centered on host mapping, communication I/O and careful migration planning rather than generic protocol claims.
A communication-gateway replacement succeeds when the host receives the same useful rack values and status information after the change. The original 3500/90 transfers configured 3500 rack data to a DCS, PLC or plant information system through its installed communication I/O.
Protocol, ports, addressing and register assignments belong to the complete interface project, not the front module alone. For 3500/90, the installed I/O module, cable pinout and host polling configuration are therefore central to replacement planning.
Migration to a later gateway such as 3500/92 should be treated as an interface project rather than an automatic card swap. ApterPLC can use the existing map and communication details to help buyers define the right sourcing path for 3500/90.
The rack value remains useful only when every step from module to host system remains aligned.
Static values and statuses originate from the configured monitor modules in the 3500 rack.
The installed communication I/O, ports, protocol and addressing carry those values outward.
DCS or PLC register assignments determine where the plant system expects each value and status.
The module sends configured static values and status information to plant systems.
Ports and cabling depend on the installed communication I/O module.
Addressing and register assignments connect the gateway output to DCS or PLC tags.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3500 machinery protection system |
| Module role | Original 3500 communication gateway |
| Data function | Transfers rack static values and statuses to a plant information system |
| Host examples | DCS or PLC |
| Configuration basis | Installed protocol I/O, ports, addressing and register map |
| Successor review | 3500/92 requires register-map and interface verification |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A successful replacement keeps protocol, port use, addressing, cable pinout and host polling aligned as one package.
A 3500/92 migration can retain the business purpose while requiring changes to registers, configuration and the physical interface.
3500/90 is a legacy communication gateway, and a later 3500/92 should not be treated as an automatic register-for-register replacement. The host map and installed I/O shape the real migration work. ApterPLC can help buyers organize interface details and identify whether the requirement is a spare or a migration project.
An automatic register-for-register swap should not be assumed. The later gateway can require changes to primary-value registers, configuration and the installed interface.
The I/O hardware determines the available ports, cable connection and physical communication path, so the front module alone does not describe the complete gateway interface.
Gateway and rack status, the active host port, cable path, addressing, protocol settings and requested register map provide a practical diagnostic sequence.
The supported architecture depends on the installed rack and host design. Redundant communication should be planned around separate paths and clear host handling rather than duplicate tags alone.
Representative values, statuses and exception handling should arrive at the correct host tags after the new interface and register map are configured.
Gateway and I/O labels, protocol, port use, cable pinout, addressing, register map, host platform, quantity and destination define the real requirement.
Please share the gateway and I/O labels, active ports, protocol, addressing, cable pinout, register map, host system, rack revision, quantity and destination.
New original supply: sourcing support for current, discontinued and difficult-to-find industrial automation parts.
No additional manufacturer-confirmed model variants are displayed. Please use 3500/90 exactly when requesting a quotation or technical document.
ApterPLC provides a one-year warranty on every item we sell, supporting a dependable industrial automation purchase from quotation through after-sales communication.
ApterPLC can help match available technical information to the product and system you are using. A clear label photo and a short description of the required document give our team the best starting point.
