Sensor family
Supported isolated-tip thermocouples and RTDs require the matching channel configuration.
Item NO.:
3500/65Order(MOQ):
1Goods Stock:
22Payment:
T/TLead Time：
In stockDescription:

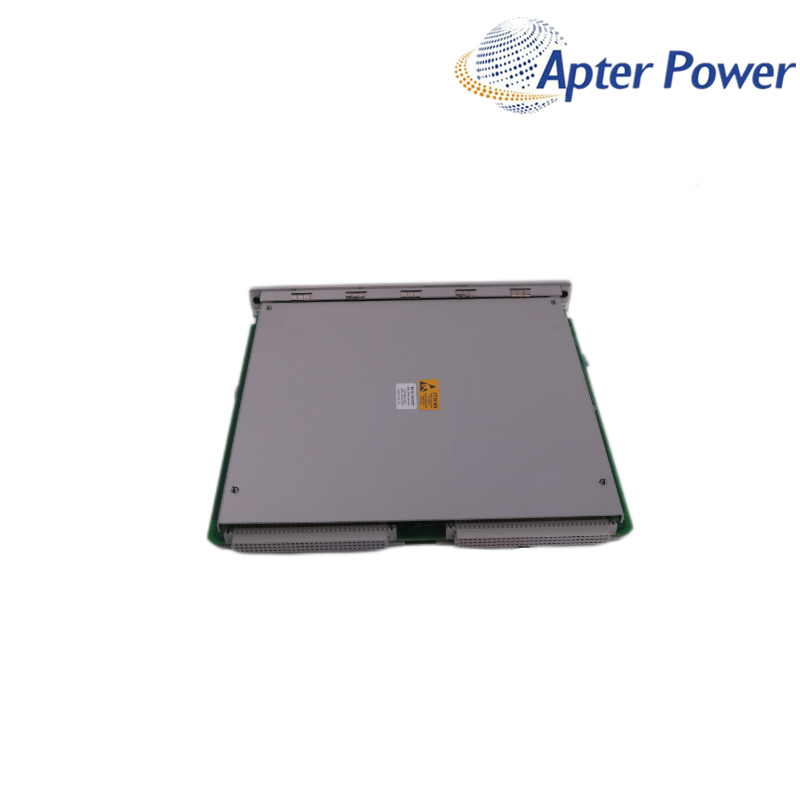

TEMPERATURE MONITOR MODULEPrice:
AskBently Nevada 3500 System
A high-density temperature page that helps buyers match RTD and thermocouple channels without turning the listing into a wiring manual.
Multi-point temperature monitoring becomes easier to manage when the sensor schedule and rack configuration describe the same field installation. 3500/65 provides sixteen channels for supported RTD and isolated-tip thermocouple inputs.
Each channel on 3500/65 can be assigned to the appropriate supported sensor type. The available input families include types E, J, K and T thermocouples together with supported platinum, nickel and copper RTDs, allowing one module to serve a mixed plant temperature program.
For replacement or expansion, buyers can share the sensor schedule, lead arrangement and alarm purpose for each channel group. ApterPLC can use this information to help match 3500/65 with the installed temperature system and prepare the correct quotation.
A clear channel schedule connects each field sensor to the right input definition and alarm purpose.
Supported isolated-tip thermocouples and RTDs require the matching channel configuration.
Thermocouple polarity and RTD lead count shape the installed input behavior.
Each channel range and alarm setting should reflect the temperature decision for that measurement point.
One monitor consolidates a large set of plant temperature points in the 3500 rack.
Supported thermocouple and RTD types can be combined in the configured channel schedule.
Conditioned temperatures are compared with user-programmable alarm setpoints.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3500 machinery protection system |
| Module role | Sixteen-channel temperature monitoring |
| Thermocouple inputs | Supported isolated-tip types E, J, K and T |
| RTD inputs | Supported 100 ohm platinum, 120 ohm nickel and 10 ohm copper types |
| Configuration basis | Channel sensor type, range and alarm setpoints |
| Installation input | Field wiring and sensor schedule required |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A sensor can produce a plausible but incorrect value when the thermocouple type, RTD curve or lead arrangement does not match the channel.
Representative points from each sensor family provide a practical way to compare the installed field schedule with the configured module.
3500/65 can combine supported RTD and isolated-tip thermocouple inputs, but a channel configured for the wrong sensor family may still display a believable temperature. The sensor schedule is therefore a purchasing and commissioning asset, not paperwork alone. ApterPLC can help buyers organize the channel mix for a more accurate quotation.
Yes. The sixteen-channel monitor can use supported isolated-tip thermocouples, supported RTDs or a configured combination of both input families.
A mismatched thermocouple type, RTD curve, lead arrangement or polarity can shift the result without always producing an obvious open-sensor indication.
The official module information includes isolated-tip types E, J, K and T. The installed extension wire and polarity should follow the selected thermocouple family.
The RTD material, nominal resistance and lead arrangement affect the correct channel definition. A sensor schedule gives procurement and engineering a common reference.
Representative inputs from each configured sensor family can be compared with known plant or test temperatures before the full alarm set is relied upon.
The sensor schedule, channel count, thermocouple and RTD types, lead arrangements, rack labels, quantity and destination help our team match the requirement.
Please share the number of active channels, sensor families, thermocouple types or RTD materials, lead arrangements, module and I/O labels, required quantity and destination.
New original supply: sourcing support for current, discontinued and difficult-to-find industrial automation parts.
No additional manufacturer-confirmed model variants are displayed. Please use 3500/65 exactly when requesting a quotation or technical document.
ApterPLC provides a one-year warranty on every item we sell, supporting a dependable industrial automation purchase from quotation through after-sales communication.
ApterPLC can help match available technical information to the product and system you are using. A clear label photo and a short description of the required document give our team the best starting point.
