Pressure input
One to four supported transducer channels provide the source for dynamic-pressure monitoring.
Item NO.:
3500/64MOrder(MOQ):
1Goods Stock:
22Payment:
T/TLead Time：
In stockDescription:
PRESSURE MONITORPrice:

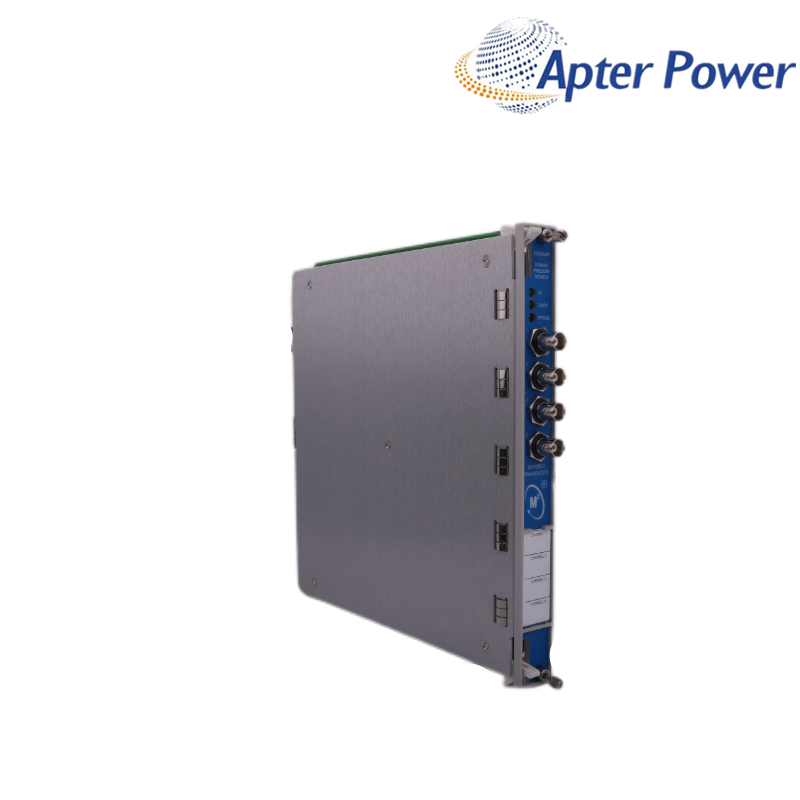

AskBently Nevada 3500 System
A dynamic-pressure page built around four-channel signal conditioning, filter strategy and combustion-monitoring value.
Dynamic pressure becomes useful when the monitored frequency band matches the physical event of interest. 3500/64M accepts up to four supported pressure-transducer signals and produces bandpass dynamic-pressure measurements for rack alarms and condition information.
High-pass, low-pass and optional notch filtering allow 3500/64M to focus on the required pressure behavior. These settings shape what the channel can reveal, so a filter package copied from another unit may hide an instability or emphasize unrelated content.
A replacement enquiry is most effective when it includes the pressure-transducer arrangement, required passband, recorder-output use and current alarm strategy. ApterPLC can use that information to help buyers request the appropriate 3500/64M configuration.
The measurement moves from a supported pressure input through filtering to alarms and external monitoring.
One to four supported transducer channels provide the source for dynamic-pressure monitoring.
High-pass, low-pass and notch selections define which pressure content remains visible.
Rack alarms and recorder signals carry the conditioned result to protection and analysis tasks.
The monitor supports one to four dynamic-pressure inputs in a 3500 rack.
Filter corners focus the measurement on the pressure phenomenon that matters.
A selected narrow-frequency component can be reduced when the approved application calls for it.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3500 machinery protection system |
| Module role | Four-channel dynamic pressure monitoring |
| Input source | Supported high-temperature pressure transducers |
| Measured variable | Bandpass dynamic pressure |
| Signal conditioning | Configurable high-pass, low-pass and notch filtering |
| Configuration tool | 3500 Rack Configuration Software |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The passband is part of the measurement itself, not a cosmetic setting; it changes the events visible to alarms and trends.
Recorder outputs can support an approved monitoring or control-system task while the rack retains alarm and channel-diagnostic functions.
A quiet or stable reading from 3500/64M is meaningful only when the pressure input and configured passband match the intended combustion or pulsation event. Filter settings can suppress real behavior as easily as they can remove unwanted content. ApterPLC can help buyers compare transducer and filter requirements before sourcing.
Electrical fit depends on the supported transducer signal and channel arrangement, not connector appearance alone. The transducer model and its conditioning path should be part of the selection.
The high-pass, low-pass and notch selections define which pressure frequencies reach the measured value. A different passband can reveal a different physical event.
It can reduce a selected narrow-frequency component when that component is not part of the required pressure decision. The setting should follow the approved monitoring objective.
Recorder outputs support external monitoring tasks, while the configured rack channel continues to provide its own alarms and diagnostics. The two roles should remain clearly separated.
A changed transducer range, input arrangement, filter package or channel configuration can shift the measurement even when the process itself has not changed.
The transducer model, channel count, passband, notch setting, recorder use, rack and I/O labels, quantity and destination provide a practical matching basis.
Please include the pressure-transducer model, channel count, required frequency band, notch-filter use, recorder destination, module and I/O labels, quantity and destination.
New original supply: sourcing support for current, discontinued and difficult-to-find industrial automation parts.
No additional manufacturer-confirmed model variants are displayed. Please use 3500/64M exactly when requesting a quotation or technical document.
ApterPLC provides a one-year warranty on every item we sell, supporting a dependable industrial automation purchase from quotation through after-sales communication.
ApterPLC can help match available technical information to the product and system you are using. A clear label photo and a short description of the required document give our team the best starting point.
