Monitor identity
Confirm the front module label 176449-03 and do not substitute another 3500/44M ordering option by faceplate appearance.
Item NO.:
3500/44M 176449-03Order(MOQ):
1Goods Stock:
21Payment:
T/TLead Time：
In stockWeight:
0.82KGDimension:
2.5x25.2x24cmDescription:
Aeroderivative Gas Turbine Vibration MonitorPrice:
AskA 3500 monitoring module configured for aeroderivative gas-turbine vibration protection and used with the matching Aero GT I/O hardware.

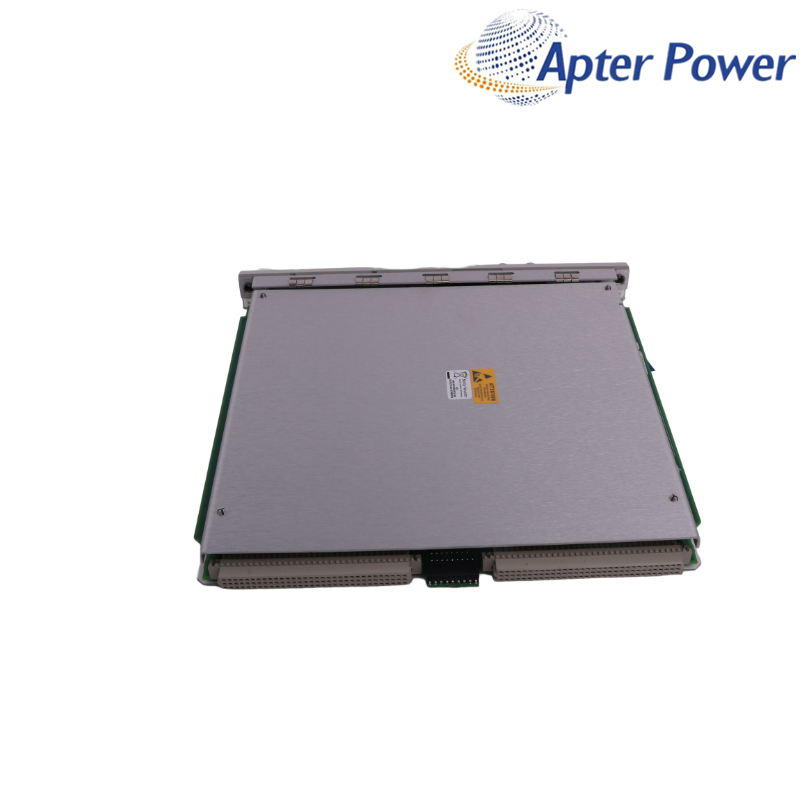

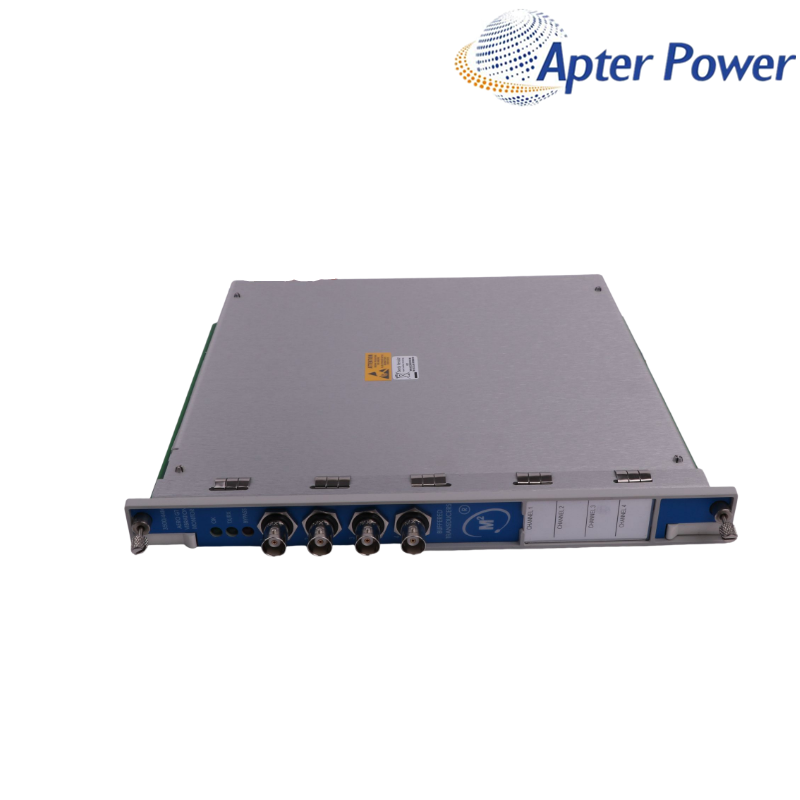

Bently Nevada 3500/44M 176449-03 is an Aeroderivative Gas Turbine Vibration Monitor for the 3500 machinery protection platform. It is intended for measurement arrangements used on aeroderivative gas-turbine applications and works with the matching Aero GT I/O hardware.
A reliable replacement decision requires the exact monitor and I/O part numbers, rack slot, channel configuration and connected transducer types. Preserving the configuration is essential because the module name alone does not describe the complete installed measurement arrangement.
Confirm the front module label 176449-03 and do not substitute another 3500/44M ordering option by faceplate appearance.
Record the rear Aero GT I/O part number and termination style; 126599-01 is the internal-termination module documented for this family.
Capture channel settings, transducer types and rack position before the planned outage.
Back up or record the rack configuration and photograph the monitor, rear I/O and all field terminations.
Follow the site maintenance and electrostatic-discharge procedures and preserve the slot and I/O arrangement.
Confirm module recognition, channel states, configured measurement functions and protection logic with the approved commissioning plan.
| Product platform | Bently Nevada 3500 machinery protection system |
|---|---|
| Monitor model | 3500/44M |
| Monitor part number | 176449-03 |
| Application family | Aeroderivative gas-turbine vibration monitoring |
| Matching I/O reference | Aero GT I/O module selected by termination arrangement |
| Internal-termination I/O reference | 126599-01 |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Used in 3500 racks protecting aeroderivative gas turbines where the installed channels, I/O module and transducers are already configured for the 3500/44M Aero GT monitoring arrangement.
No. Match the monitor part number, rear I/O module, configured measurement functions and connected transducers before replacement.
Record the rack slot, front and rear labels, configuration, channel status, field terminations and connected transducer models.
The monitor and rear I/O module are separate hardware references. Confirm what the quotation includes rather than assuming both are supplied together.
No. The complete channel configuration, transducer type, signal processing and protection logic should be validated under the site commissioning procedure.
Check slot placement, module seating, rear I/O pairing, rack configuration and module status before altering the protection configuration.
Send the front monitor and rear I/O labels, rack and slot photos, configuration reference, quantity, delivery country and required date.
Labels and installed context are compared before quotation.
Commercial terms and available traceability are confirmed with the offer.
Availability and delivery options are coordinated around your shutdown plan.
Coverage begins on the shipment date unless the confirmed quotation states otherwise.
Coverage and available remedy follow the confirmed quotation and sales agreement.
The manufacturer document provides the family ordering information and technical context used to identify this exact version.
