Capture the logic
Back up Alarm Drive Logic and document every channel's normal and alarm state.

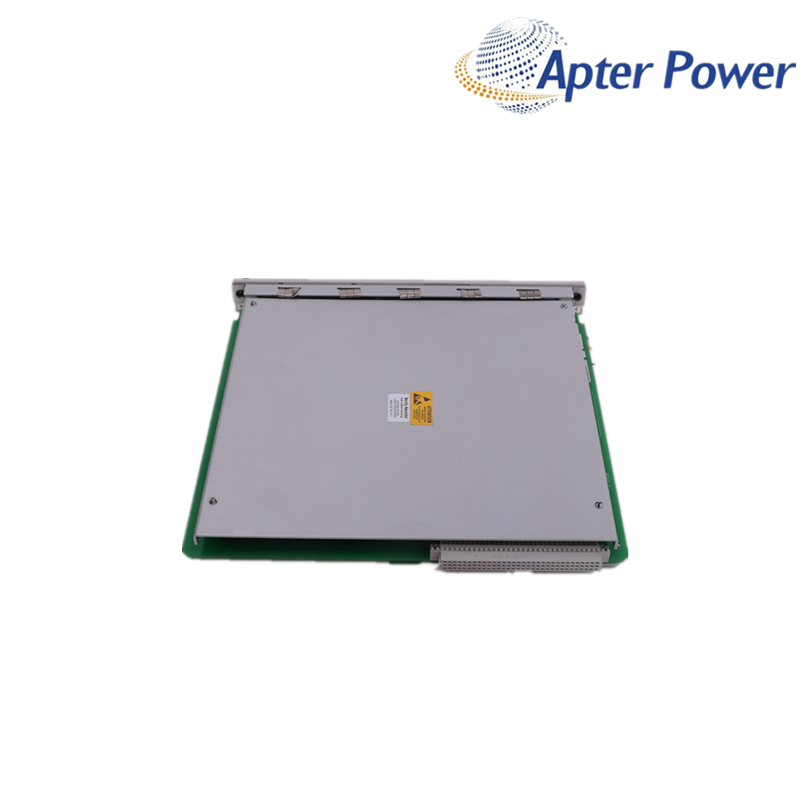

Bently Nevada 3500/32 is a four-channel relay module used to convert 3500 rack alarm logic into field relay outputs.
Item NO.:
3500/32Order(MOQ):
1Goods Stock:
35Payment:
T/TLead Time：
In stockWeight:
0.75KGDimension:
2.6x25.2x24.1cmDescription:
RELAY MODULEPrice:
AskSend the complete nameplate, installed-system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Exact-model decision context
Four relay outputs become useful only after the alarm logic, contact state and field load are understood. 3500/32 is the legacy four-channel relay module used in a 3500 rack.
A replacement must be reviewed with its rear I/O module and saved rack configuration. The later 3500/32M family should not be treated as an automatic drop-in replacement without an official compatibility and migration check.
Before reconnecting trip or annunciation circuits, document each channel's programmed logic, normal energization state and external wiring. Test the intended output path under the site's controlled commissioning procedure.
Checks that move the order forward
Back up Alarm Drive Logic and document every channel's normal and alarm state.
Identify the installed rear relay module and terminal wiring before releasing the front module.
Commission each output through the approved plant procedure before returning trips or annunciation to service.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3500 machinery protection system |
| Module | 4-channel relay module |
| Output purpose | Rack alarm logic to field relay circuits |
| Configuration requirement | Alarm Drive Logic and channel behavior must be restored from the approved rack configuration |
| Installation review | Front module, rear I/O module and field wiring must be checked together |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Two model-relevant engineering themes
Back up and review Alarm Drive Logic, normal energization and channel mapping before moving the module or restoring field outputs.
If an output does not change as expected, check rack event state, channel logic, module seating, rear I/O and field wiring before replacing hardware again.
Stop and release boundary
Do not reconnect protective trips from channel numbers alone. Prove the saved logic, rear terminal mapping, normal contact state and field load under an approved commissioning plan.
Supported task and system role
Provides four programmable relay outputs for supported 3500 rack alarm, annunciation or shutdown interfaces where the existing logic and field circuits have been verified.
Buyer, installer and engineer situations
Only after its exact identity, terminal condition and wiring map are confirmed for the installed front module. Photograph and label every field connection before work.
Back up the rack configuration and record Alarm Drive Logic, channel mapping and normal energization state. Use the approved file to restore and verify the replacement.
Do not assume it is. Review the official migration guidance, rear I/O hardware, firmware or software context and field-circuit requirements before selecting a different relay family.
Confirm the configured logic and normal energization, then test the intended contact path with the field load controlled under the site's commissioning procedure.
Check the initiating rack event, Alarm Drive Logic, channel assignment, module seating, rear I/O connection and external circuit before declaring the relay channel faulty.
Send front and rear module labels, rack position, configuration screenshots, terminal and field-wiring photographs, required quantity and destination.
ApterPLC supply capability
New original supply: Quality-focused sourcing and exact-model review support confident purchase decisions.
Current, discontinued and scarce products: Our supply network covers routine needs and difficult-to-source automation parts.
Responsive after-sales service: We support delivery coordination, receipt questions and post-purchase technical communication.
Search variants for discovery only
Search note: Common spelling, spacing, separator and character-confusion variants are listed for discovery only. Use the exact Product Model above for quotation and ordering.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
