Cabinet fit
Confirm 19-inch EIA rail spacing and rear wiring access.
Item NO.:
3500/05-01-02-00-00-01Order(MOQ):
1Goods Stock:
15Payment:
T/TLead Time：
In stockWeight:
6.3KGDimension:
48.2x27.4x26.6cmDescription:
PLC RACKPrice:
AskA full-size 19-inch 3500 rack with 14 module slots, rack-mount configuration, no agency approval option and CE compliance.

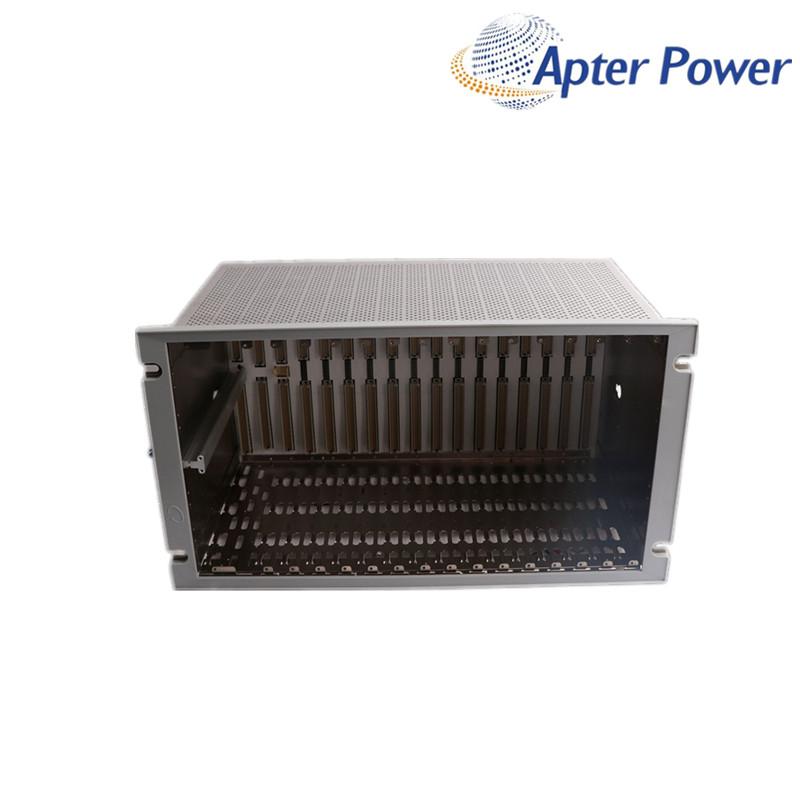

3500/05-01-02-00-00-01 is the full-size Bently Nevada 3500/05 System Rack configuration. Field 01 specifies the 19-inch rack with 14 available module slots, while field 02 specifies the rack-mount format for 19-inch EIA rails.
For 3500/05-01-02-00-00-01, the first 00 selects no agency approval, the second 00 is the required reserved field, and 01 selects CE compliance. The power supplies and Rack Interface Module retain their dedicated left-side positions.
Before installing 3500/05-01-02-00-00-01, verify cabinet rail spacing, rear wiring access, module-slot plan, power-supply arrangement and the complete rack order code rather than treating every 19-inch chassis as equivalent.
Confirm 19-inch EIA rail spacing and rear wiring access.
Reserve the dedicated power-supply and Rack Interface Module positions.
Keep the 00 / 00 / 01 approval and CE fields with the rack record.
| Manufacturer | Bently Nevada |
|---|---|
| Component | 3500/05 System Rack |
| Rack size | 01 — 19-inch full-size rack |
| Available module slots | 14 |
| Mounting option | 02 — rack mount on 19-inch EIA rails |
| Agency approval option | 00 — none |
| Reserved field | 00 — none |
| European compliance option | 01 — CE |
| Full-size rack front width | 482.60 mm (19.000 in) |
| Full-size rack height | 265.94 mm (10.470 in) |

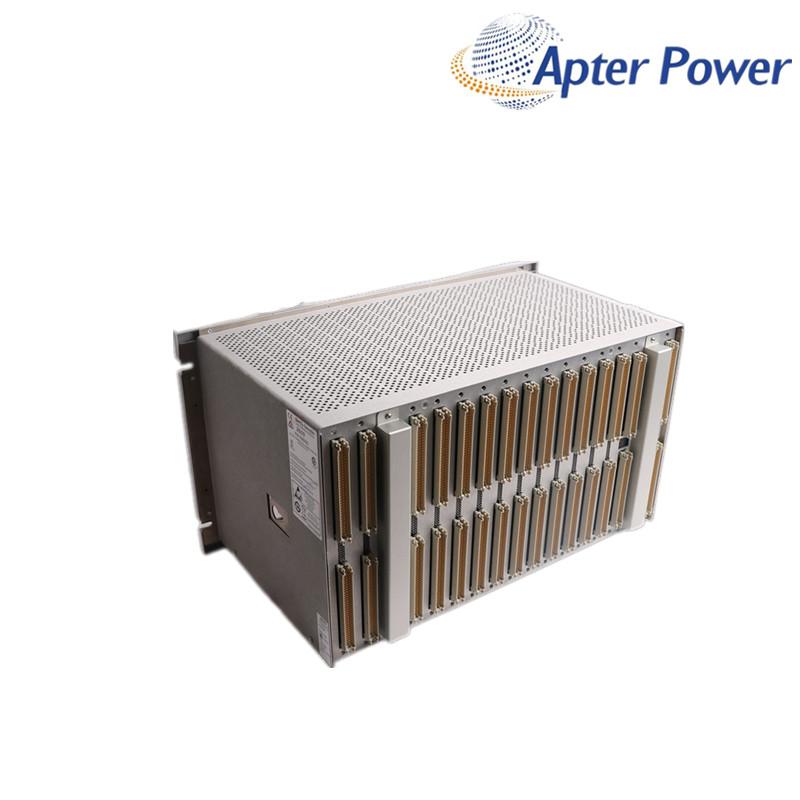

| Access arrangement | Wiring connections and I/O modules accessible from the rear |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The full-size 19-inch rack provides 14 available module slots; the power supplies and Rack Interface Module retain dedicated positions at the left.
Yes. Mounting option 02 is the full-size rack-mount configuration intended for 19-inch EIA rails.
The first 00 selects no agency approval and the second 00 is the required reserved field; they are separate positions in the order code.
Yes. The final 01 is the published European compliance selection for CE.
Confirm rail spacing, front and rear clearance, wiring access, grounding, power-supply plan and module-slot allocation.
Provide the rack label, existing rack front and rear photos, module list, power supplies, interface module and cabinet dimensions.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer document below is hosted by ApterPLC for product selection and technical review.
3500/05 System Rack Datasheet · 141525 Rev. MOpen the English manufacturer datasheet for rack formats, ordering information and technical specifications.Browse 40 recommended industrial automation models and open each exact-model search on ApterPLC.
