Combine the probe lead and 4.5 m extension cable to match the installed NSv sensor length.

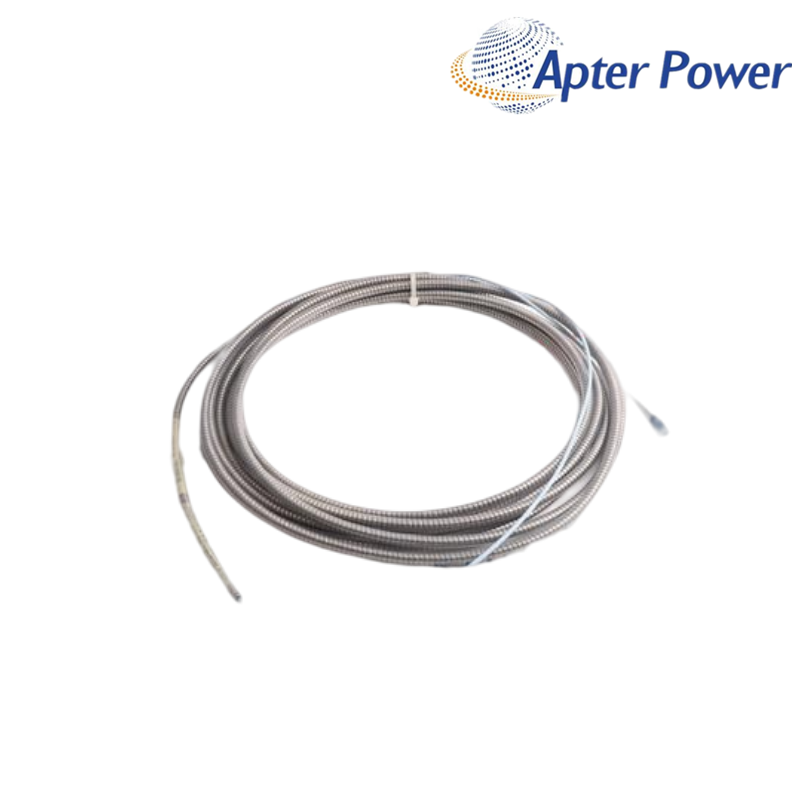

A 4.5 m NSv extension cable with stainless-steel armor, FEP outer jacket and no-approval execution. 4.5 m · armored FEP jacket · 75 ohm coaxial · option 00.
Item NO.:
330930-045-01-00Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
SENSOR CABLEPrice:
AskA 4.5 m NSv extension cable with stainless-steel armor, FEP outer jacket and no-approval execution.
4.5 m · armored FEP jacket · 75 ohm coaxial · option 00Installed NSv measurement chains use 330930-045-01-00 when a 4.5 m extension segment and armored outer construction are required. The flexible stainless-steel armor and FEP jacket protect the routed coaxial cable while preserving its role in the matched transducer system.
Because total electrical length controls the NSv response, 330930-045-01-00 must be combined with the correct probe lead and Proximitor Sensor option. Its 4.5 m length is therefore a system-selection input rather than a general-purpose cable dimension.
The final 00 field is the documented no-approval execution for 330930-045-01-00. A replacement check should focus on the installed total length, armor requirement, connector condition and cable route.
3300 XL NSv extension cable
4.5 m cable length
Stainless-steel armor with FEP outer jacket
Approval not required
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL NSv proximity transducer system |
| Component | Armored extension cable |
| Cable length | 4.5 m |
| Cable impedance | 75 ohm coaxial |
| Cable material | FEP insulated |
| Armor option | Stainless-steel armor with FEP outer jacket |
| Minimum bend radius | 25.4 mm |
| Typical armored cable weight | 64 g/m |
| Agency option | 00 - approval not required |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Combine the probe lead and 4.5 m extension cable to match the installed NSv sensor length.
Allow space for the armored jacket and minimum bend radius through brackets, trays and junction boxes.
Inspect both ends for contamination, strain or damaged locking features before reusing adjacent components.
Support the armored route so vibration and cable mass do not transfer into the probe or sensor connectors.
Use NSv probe and sensor components together; similar connectors do not establish calibration compatibility.
After replacement, compare the measurement with the plant baseline before changing channel scaling.
A 4.5 m cable is often selected to complete a 5.0 m NSv chain with a 0.5 m probe lead. Using the same cable with another probe lead changes the total electrical length and can change system behavior.
Only when the probe lead brings the total to the required sensor length and the installation needs the armored FEP construction.
Changing the cable length changes the calibrated system. A factory-defined length should be selected rather than trimmed as ordinary coax.
Connector contamination, tight bends, cable damage, poor support or a mixed transducer family are useful points to review before replacing electronics.
A supported path with adequate bend radius and separation from rubbing or pinch points protects both the armor and the coaxial core.
The extension-cable label plus the connected probe and Proximitor Sensor labels provide the clearest system-length context.
The final 00 field means approval is not required in the documented ordering structure.
Complete labels and order fields are compared before quotation.
Probe, cable, sensor and transmitter roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and the available remedy follow the written quotation and sales agreement.
Provide the complete 330930-045-01-00 label and order reference.
Add mounting, connector and signal-chain photos.
Describe the symptom, operating state and first occurrence.
The compact PDF keeps the official manufacturer pages that matter most for this model: product identity, order-code structure, system context and the relevant specifications. It omits unrelated catalog pages so the key evidence is easier to find.
