M10 × 1, armored
Item NO.:
330910-00-11-10-02-05Order(MOQ):
1Goods Stock:
17Payment:
T/TLead Time：
In stockWeight:
0.3KGDimension:
20.3x3x5cmDescription:
PROXIMITY PROBESPrice:
Ask3300 XL NSv selection guide for maintenance and procurement.
TRACE THE LOOP · CONFIRM THE CODE

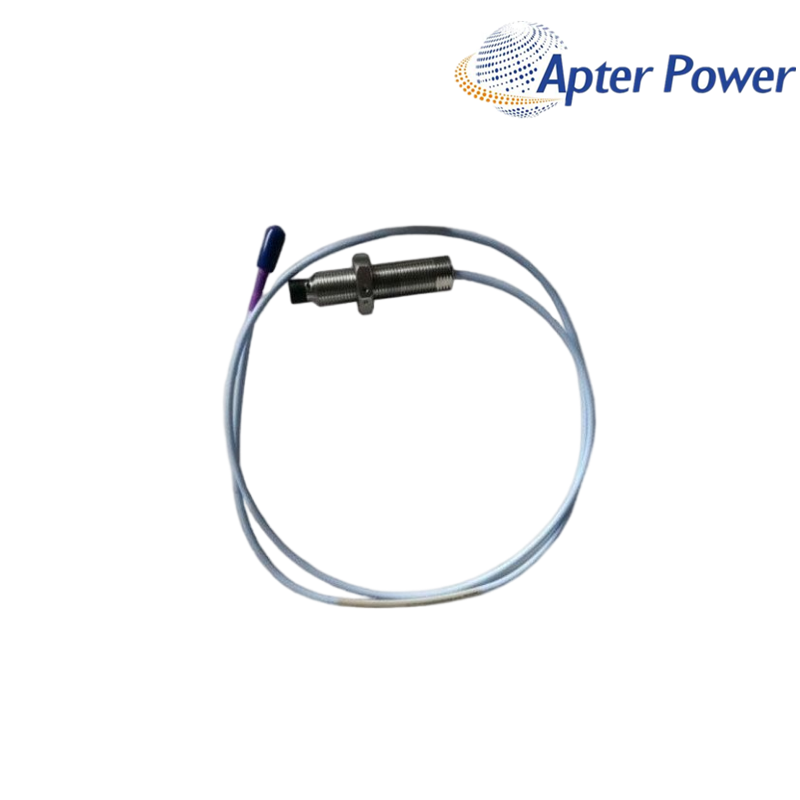

330910-00-11-10-02-05 is configured as the following component: Armored M10 × 1 standard-mount proximity probe. Longer-case armored NSv probe for matched 3300 XL NSv systems in restricted installation spaces.
M10 × 1, armored
0 mm unthreaded
110 mm case
1.0 m lead
Standard cable
Multiple approvals
Identify the installed sensing or input context before disconnecting hardware.
This exact configured component must match the family, geometry, length and connection requirements.
Verify the receiving device, scale and commissioning response after installation.
| Product and technical data | |
|---|---|
| Manufacturer | Bently Nevada |
| Exact model | 330910-00-11-10-02-05 |
| Product type | 3300 NSv Proximity Probe |
| Probe thread | M10 × 1 |
| Armor | Flexible AISI 302 stainless steel |
| Unthreaded length | 0 mm |
| Case length | 110 mm |
| Total lead length | 1.0 m |
| Probe cable | 75 Ω coaxial, FEP insulated |
| Probe tip | PPS |
| Probe case | AISI 304 stainless steel |
| Maximum thread engagement | 15 mm |
| Minimum bend radius | 25.4 mm |
| Connector torque | 0.56 N·m maximum |
| Tensile strength | 220 N maximum |
| Probe temperature | -52 to +177°C |
| Approval option | 05 - Multiple approvals |
| Official datasheet | 3300 XL NSv Datasheet 147385 Rev. R |
| ApterPLC transaction information | |
| Payment | T/T |
| Goods Stock | 17 |
| Weight | 0.3KG |
| Dimension | 20.3x3x5cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Capture every code segment and the manufacturer nameplate; do not shorten the final 00 or 05 option.
Record connected probe, extension cable, Proximitor or transmitter and monitor/control input.
Confirm thread, case and unthreaded lengths, bend radius, routing clearance and mounting access.
Compare the project classification with the certificate set offered for the exact unit.
Photograph labels, connectors, mounting, cable route, probe position and the channel baseline.
Preserve the matched family, total electrical length, connector protection, grounding and mounting geometry.
Verify supply or loop current, probe gap or axial position, output scale and channel response under the plant procedure.
Compare the complete nameplate, 3300 XL NSv family, the listed geometry or length, connector option, associated components and approval requirement.
No. Similar-looking parts can use different system lengths, mounting geometry, cable protection or approval options. The full order code controls selection.
Send the full label, both connector ends, installed mount or probe position, related probe/cable/Proximitor labels and the receiving channel.
Check the matched family and total electrical length, connector cleanliness and tightness, cable routing, probe gap or axial position, wiring and receiving-channel scale.
No. This page describes one configured component. Confirm the probe, extension cable, Proximitor or transmitter, monitor input and any mounting accessories separately.
Provide the exact model, complete-label photo, quantity, delivery country, required date and the related signal-chain labels. This reduces visually similar substitutions.
Complete labels and connected components are compared before quotation.
Commercial terms and available traceability are confirmed with the offer.
Availability and delivery options are coordinated around the project schedule.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Coverage scope and remedy follow the confirmed quotation and sales agreement.
Retain the nameplate, order reference, connector and terminal photos, related signal-chain labels and a clear description of the reported symptom.
Baker Hughes 3300 XL NSv Datasheet 147385 Rev. R is the public family document used to decode this exact configuration. Review the complete order code, installation context and approval package together before replacement.
Configured version: 0 mm unthreaded · 110 mm case · 1.0 m lead · standard ClickLoc cable · multiple approvals
