Prove the reach
Compare the 60 mm smooth section and 140 mm case with bracket thickness, thread engagement and target clearance.

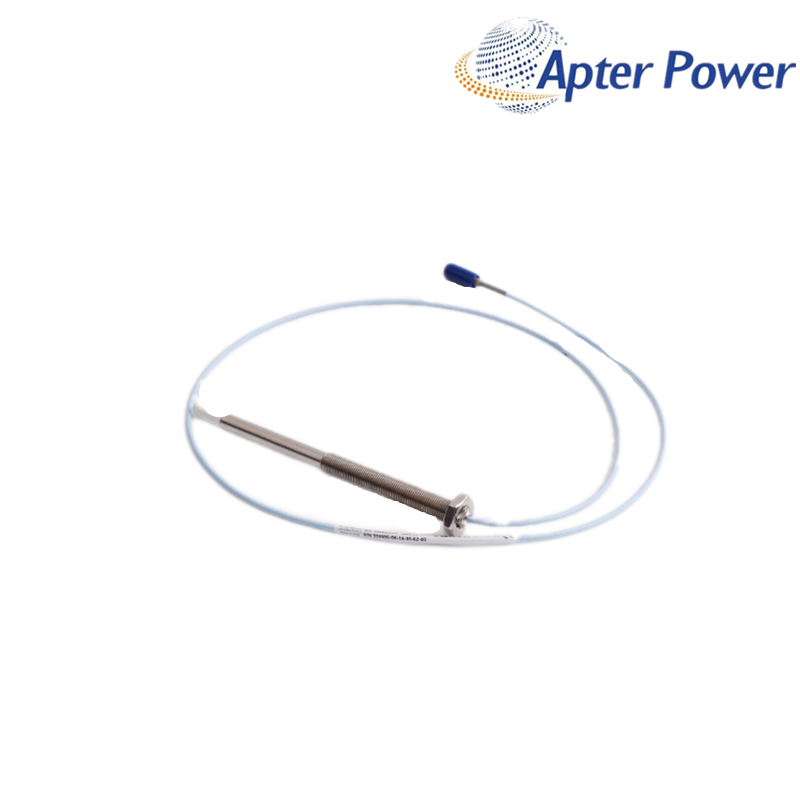

Bently Nevada 330905-06-14-10-02-00 is an M10 x 1 3300 NSv proximity probe with 60 mm unthreaded length, 140 mm case and 1.0 m standard lead.
Item NO.:
330905-06-14-10-02-00Order(MOQ):
1Goods Stock:
33Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
20.3x22x3.5cmDescription:
PROXIMITOR TRANSDUCERPrice:
AskSend the complete nameplate, installed-system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Exact-model decision context
Restricted compressor clearances make mechanical reach as important as electrical compatibility. 330905-06-14-10-02-00 combines an M10 x 1 body with 60 mm unthreaded length and a 140 mm overall case.
Its one-metre standard lead ends in a miniature coaxial ClickLoc connector without a factory-installed protector. A supported four-metre extension completes a five-metre system, while a six-metre extension completes a seven-metre system.
Before ordering, compare the probe geometry with the bracket and target drawing. During installation, protect the unarmored route, keep the connector clean and seated, and verify the selected Proximitor Sensor length.
Checks that move the order forward
Compare the 60 mm smooth section and 140 mm case with bracket thickness, thread engagement and target clearance.
Use a supported 4.0 m or 6.0 m extension cable for the selected five- or seven-metre sensor.
Route the unarmored cable away from abrasion, crushing and connector loading.
Official configuration plus supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL NSv proximity transducer system |
| Probe thread | M10 x 1 |
| Unthreaded length | 06 - 60 mm |
| Overall case length | 14 - 140 mm |
| Total probe length | 10 - 1.0 m (3.3 ft) |
| Connector and cable | 02 - miniature coaxial ClickLoc connector, standard cable, no connector protector |
| Approval selection | 00 - no agency approval option requested |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Two model-relevant engineering themes
Confirm reach, thread engagement and target clearance from the machine drawing before setting probe gap.
After maintenance, inspect gap, target condition, total cable length, ClickLoc seating, cable damage and field wiring before changing monitor settings.
Stop and release boundary
Do not splice the probe lead or use an arbitrary cable to gain reach. Choose the official extension length that makes the complete chain equal the selected Proximitor Sensor length.
Supported task and system role
Used within a matched 3300 XL NSv system for close-clearance vibration or position measurements where the M10 x 1 thread and documented case reach suit the machine installation.
Buyer, installer and engineer situations
Use a supported 4.0 m extension for a five-metre system or a 6.0 m extension for a seven-metre system. Confirm the Proximitor Sensor label before ordering.
Compare the M10 x 1 port, 60 mm unthreaded section, 140 mm case, permitted engagement and final tip position with the machine drawing. Stop if the target clearance is not established.
The standard lead is not armored, so the tray, conduit or enclosure must prevent abrasion, crushing, sharp bends and pull at the connector.
Contamination or incomplete ClickLoc seating, cable damage, changed gap, target movement or a wiring fault can destabilize the chain. Inspect those items in that order before altering configuration.
Stop if the mechanical reach, target material, total chain length, connector condition or component labels do not match the documented arrangement.
Provide the full probe, cable and sensor labels, mounting drawing, target material, required total length, route conditions, quantity and destination.
ApterPLC supply capability
New original supply: Quality-focused sourcing and exact-model review support confident purchase decisions.
Current, discontinued and scarce products: Our supply network covers routine needs and difficult-to-source automation parts.
Responsive after-sales service: We support delivery coordination, receipt questions and post-purchase technical communication.
Search variants for discovery only
Search note: Common spelling, spacing, separator and character-confusion variants are listed for discovery only. Use the exact Product Model above for quotation and ordering.
Apter's 1 Year Warranty
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
