NSv family
Do not substitute a standard 3300 XL 8 mm probe solely from connector appearance.
Item NO.:
330905-00-03-10-02-0Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
3.1x19x12.8cmDescription:
PROBEPrice:

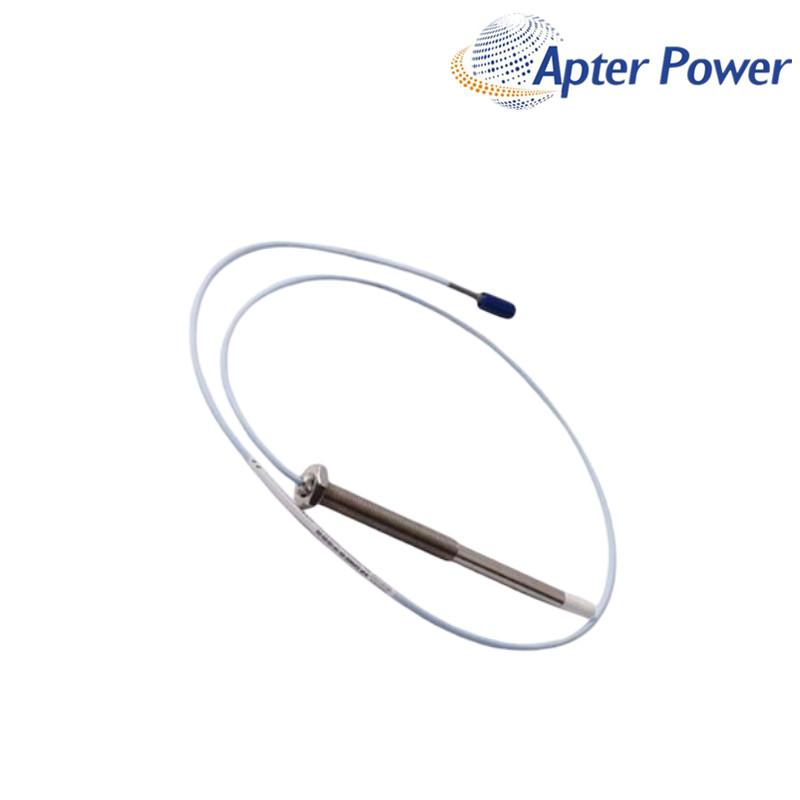

AskA compact-target NSv probe with a 30 mm case, 1.0 m lead and standard ClickLoc cable.
330905-00-03-10-02-00 is a metric 3300 XL NSv proximity probe intended for installations with tight mounting constraints or small targets. It uses the M10 × 1 thread.
The 00 and 03 fields specify 0 mm unthreaded length and a 30 mm overall case. The 10 field gives a 1.0 m lead, while option 02 is standard cable without a connector protector.
The final 00 is the published no-approval-required option. Match the probe with the correct NSv extension cable and Proximitor Sensor.
Do not substitute a standard 3300 XL 8 mm probe solely from connector appearance.
The 30 mm overall case affects mounting depth and withdrawal clearance.
Confirm target size, material and the intended vibration or position measurement.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL NSv proximity transducer system |
| Probe construction | Non-armored metric NSv probe |
| Thread | M10 × 1 |
| Unthreaded length | 0 mm |
| Overall case length | 30 mm |
| Total lead length | 1.0 m |
| Connector / cable option | Standard ClickLoc; no connector protector |
| Approval option | 00 — not required |
| Typical applications | Radial vibration, axial position, tachometer / zero speed and Keyphasor measurements |
| Installation context | Tight mounting constraints and small targets |
| Minimum flat target diameter | 8.9 mm (0.35 in) |
| Recommended flat target diameter | 13 mm (0.5 in) |
| Minimum standard X-Y shaft diameter | 30 mm (1.2 in) |
| Maximum thread engagement | 15 mm for M10 × 1 |
| Linear range | 1.5 mm (60 mils), approximately 0.25 to 1.75 mm gap |
| Recommended gap setting | 1.0 mm (40 mils) |
| Incremental scale factor | 7.87 V/mm (200 mV/mil), +12.5% / -20% |
| Frequency response | 0 to 10 kHz, +0 / -3 dB typical |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Probe cable | 75 Ω coaxial, FEP insulated |
| Connector material | Gold-plated brass |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Probe case-to-lead tensile strength | 220 N (50 lbf), maximum rated |
| Standard probe temperature range | -52°C to +177°C (-62°F to +351°F) |
| Relative humidity | 100% condensing, non-submersible with protected connectors |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Yes. The NSv system is designed for tight installation space and smaller targets, provided the target and shaft dimensions remain within the published limits.
The probe belongs to the NSv system, so the extension cable and Proximitor Sensor should be NSv components rather than selected by connector appearance.
A 25 mm shaft is below the 30 mm standard X-Y minimum; the offset arrangement and cross-talk guidance should be reviewed before use.
The published recommended gap is 1.0 mm, centered within the 1.5 mm linear range.
Option 02 does not include a connector protector, so the connection needs the appropriate protection for the installation environment.
Include the M10 × 1 mounting, 30 mm case, 1.0 m lead, target dimensions and the connected NSv cable and Proximitor Sensor models.
Share the exact nameplate, mounting or route dimensions, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating a similar connector or family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
This model-specific PDF brings together the relevant Baker Hughes ordering-code and technical pages for 330905-00-03-10-02-00. Use it to verify the NSv probe family, 30 mm case, 1.0 m lead, ClickLoc option and approval selection before ordering or replacement.
Open the 330905-00-03-10-02-00 Datasheet (PDF)|
