The current probe uses an M8 × 1 thread and a 60 mm case.
Item NO.:
330903-00-06-05-02-05Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.26KGDimension:
3.1x19x12.8cmDescription:
PROBEPrice:

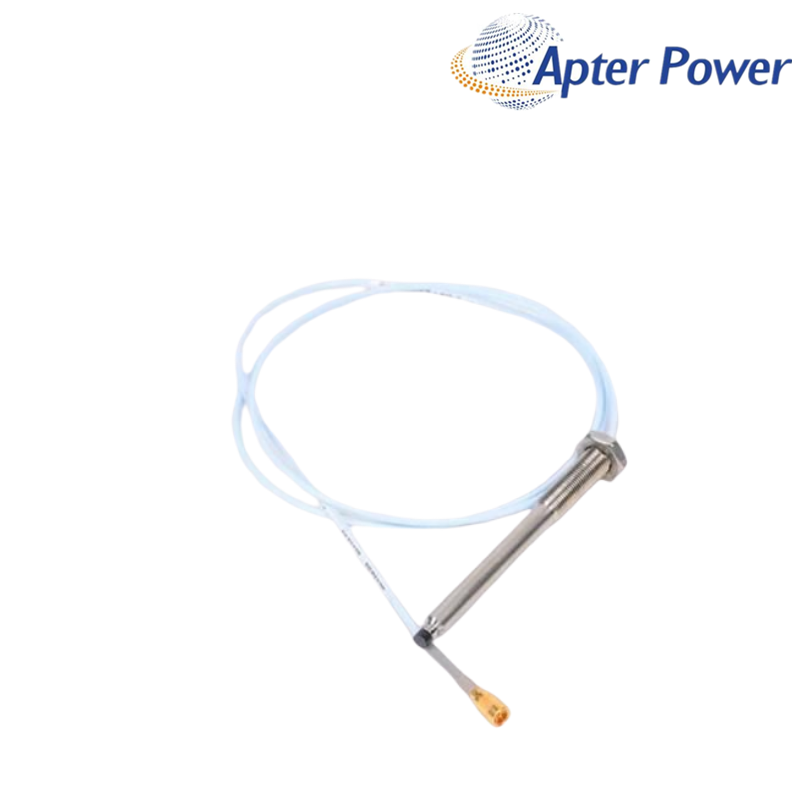

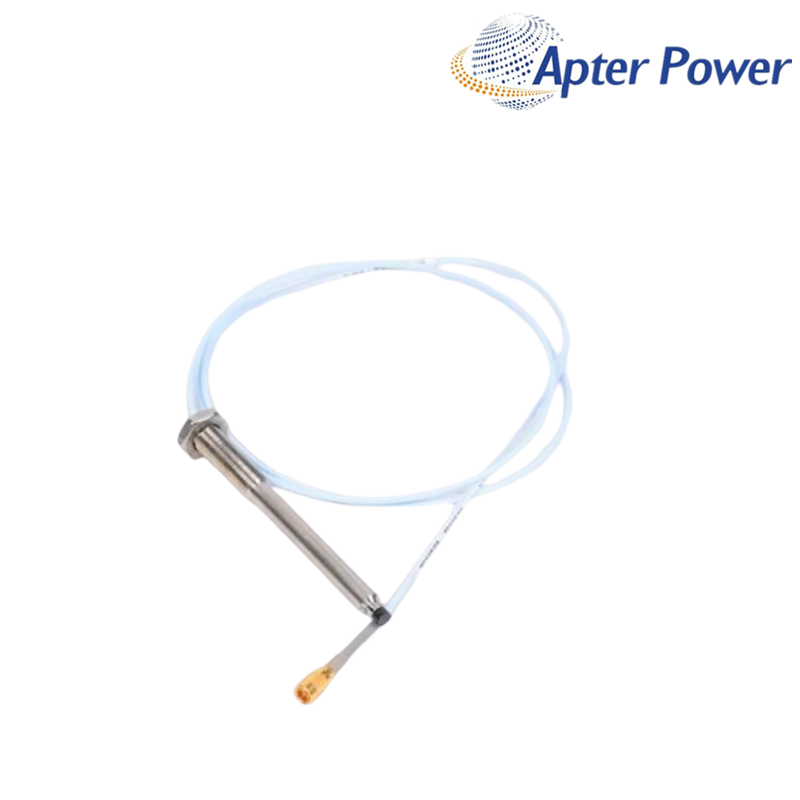

AskAn unarmored M8 x 1 NSv probe with a 60 mm case, 0.5 m lead, standard cable and the multiple-approval option.
330903-00-06-05-02-05 is an M8 x 1 probe for the 3300 XL NSv transducer system. Its 60 mm case has no unthreaded section, giving the installer a compact threaded body for positioning the probe near a small target area.
The 0.5 m unarmored lead on 330903-00-06-05-02-05 uses the standard miniature coaxial ClickLoc connection without a protector. The remaining extension-cable length must complete the NSv system length expected by the connected Proximitor Sensor.
Option 05 identifies the multiple-approval execution of 330903-00-06-05-02-05. The exact supplied certificate set and installed-area requirement should stay with the order code because similar NSv probes can use different approval fields.
The current probe uses an M8 × 1 thread and a 60 mm case.
The 0.5 m lead is unarmored and option 02 does not include a protector.
Option 05 identifies the published multiple-approval configuration.
330903-00-06-05-02-05 belongs to the 3300 XL NSv family, not the standard 3300 XL 8 mm chain. Mixing an NSv probe with another extension cable or Proximitor Sensor family can change system response even when the miniature connector appears compatible.
| MODEL-RELEVANT TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL NSv proximity transducer system |
| Component | Unarmored metric NSv proximity probe |
| Probe thread | M8 x 1 |
| Unthreaded length | 0 mm |
| Overall case length | 60 mm |
| Total lead length | 0.5 m |
| Connector / cable | Miniature coaxial ClickLoc; standard cable |
| Family linear range | 1.5 mm (60 mil) |
| Agency option | 05 - multiple approvals |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No direct equivalence should be assumed. It is an NSv probe and should be matched with the corresponding NSv cable and sensor system.
Use the NSv sensor total length and subtract the probe's 0.5 m lead to determine the remaining cable length.
No. The 330903 base is unarmored and option 02 is the standard cable arrangement without a protector.
Confirm the M8 x 1 thread, 60 mm case and target position; a larger M10 probe is not the same mechanical fit.
It identifies the multiple-approval execution. Match the supplied certificate package to the installed area requirement.
Capture the probe, extension-cable and Proximitor Sensor labels plus the mounting bracket and connector condition.
Please include all three component labels; the NSv family relationship is more important than a similar connector appearance.
Customers may type the same model with different spacing, punctuation or brand wording.
These frequently confused searches are not interchangeable with 330903-00-06-05-02-05. Confirm the complete nameplate before quotation.
