Item NO.:
330854-080-25-00Order(MOQ):
1Goods Stock:
7Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8.8x3.5x7cmDescription:
EXTENSION CABLEPrice:

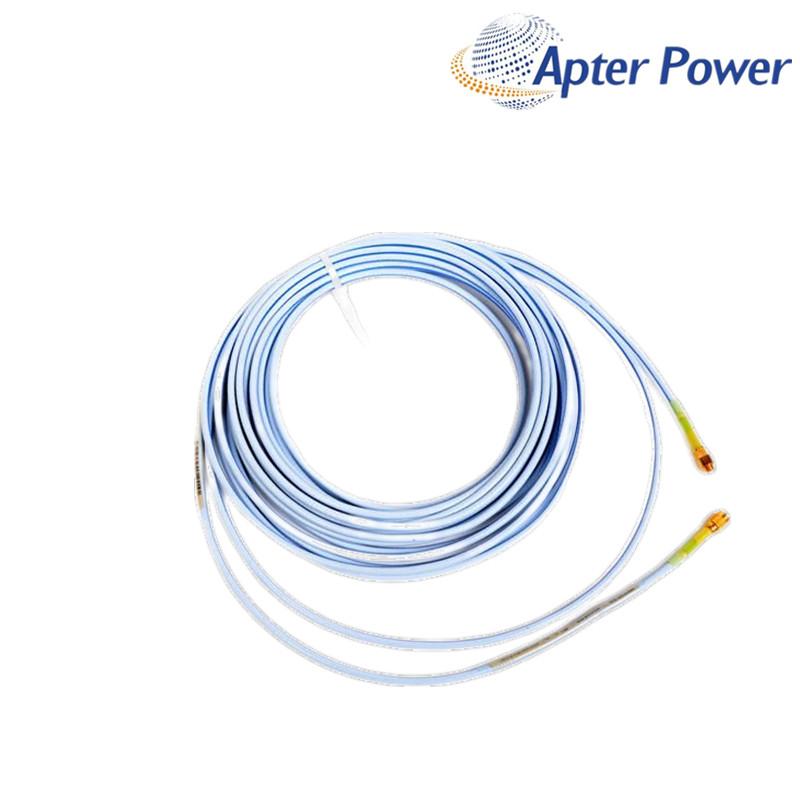

AskAn 8.0 m armored high-temperature FluidLoc extension cable for the 3300 XL 25 mm proximity transducer system.
330854-080-25-00 is an 8.0 m extension cable for the 3300 XL 25 mm proximity transducer system. Option 25 combines high-temperature FluidLoc cable with flexible stainless-steel armor for demanding turbine measurement routes.
When paired with a 1.0 m 25 mm probe, 330854-080-25-00 supports the 9.0 m system length required by the matching Proximitor Sensor. It is a connection component and does not provide displacement output on its own.
The 00 suffix on 330854-080-25-00 is the No Approvals configuration. Cable routing should preserve the 25.4 mm minimum bend radius, keep the connectors supported and respect the published −35 to +200 °C cable temperature range.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 XL 25 mm Proximity Transducer System |
| Component | Extension cable |
| Cable length | 8.0 m |
| Cable construction | 75 Ω PFA-insulated triaxial FluidLoc cable |
| Armor construction | Flexible AISI 302 stainless steel with PFA outer jacket |
| Center conductor DC resistance | 2.0 ± 0.5 Ω |
| Outer conductor DC resistance | 0.6 ± 0.2 Ω |
| Typical capacitance | 69.9 pF/m |
| Operating and storage temperature | −35 to +200 °C |
| Minimum bend radius | 25.4 mm |
| Connector maximum outside diameter | 7.2 mm |
| Armor maximum outside diameter | 10.2 mm |
| Cable maximum outside diameter | 4.1 mm |
| Approval option | 00 · No Approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
No. The official model anchor places this cable in the 3300 XL 25 mm system. Physical connection does not establish electrical or performance compatibility with an 8 mm chain.
No. The probe total length and extension cable must produce the total electrical length specified for that 25 mm Proximitor Sensor; a different marking means the chain must be reviewed.
No. Armor and FluidLoc are construction features, while the 00 suffix is the official No Approvals option. Hazardous-area use requires an appropriately approved configuration.
No. It is an extension-cable component of the 3300 XL 25 mm system; measurement output requires the complete compatible chain.
No. Review the actual route temperature and the limits of the connectors, probe and Proximitor Sensor as well as the cable. The high-temperature option is not a blanket rating for every component.
Provide the 25 mm probe and Proximitor Sensor labels, route-temperature information, connector and armor photos and confirmation that the No Approvals option matches the project requirement.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
