Item NO.:
330851-04-000-020-10-01-00Order(MOQ):
1Goods Stock:
10Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8.8x3.5x7cmDescription:
PROBEPrice:

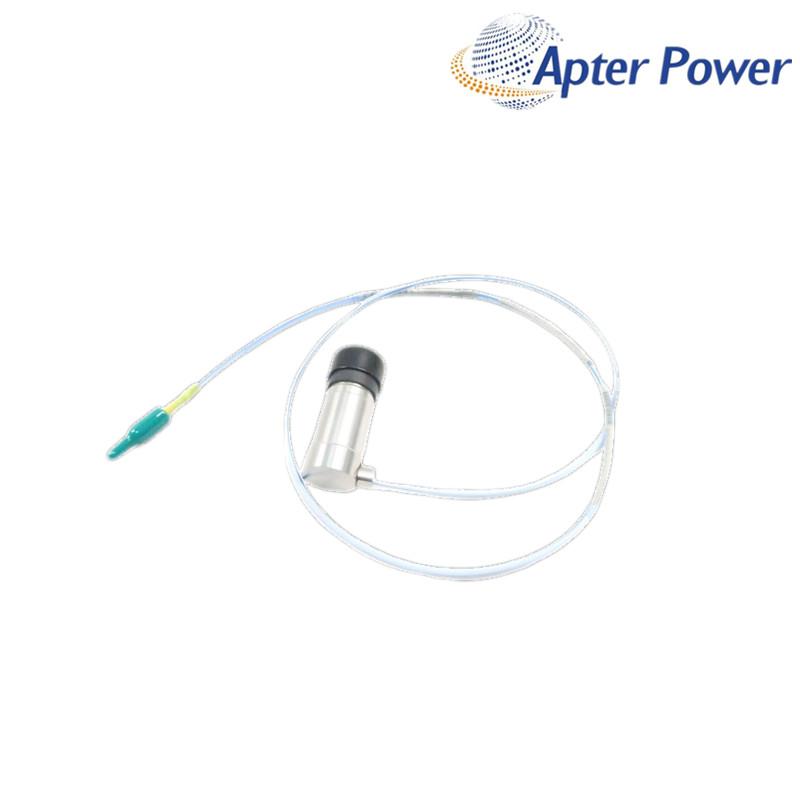

AskA smooth 1.06 in side-exit 3300 XL 25 mm probe with a 2.0 in case, 1.0 m armored FluidLoc lead and the 00 No Approvals option.
330851-04-000-020-10-01-00 is a smooth 1.06 in diameter side-exit probe for the 3300 XL 25 mm proximity transducer system. Its order code specifies a 2.0 in overall case length, the smooth-case 000 unthreaded option and a 1.0 m total probe length.
The 01 option on 330851-04-000-020-10-01-00 adds flexible AISI 302 stainless-steel armor with a PFA outer jacket around the standard 75 Ω PFA-insulated FluidLoc lead. The side-exit construction and 25.4 mm minimum bend radius should be considered together when planning the clamp position, cable departure and service clearance.
As the sensing component in a correctly configured 3300 XL 25 mm chain, 330851-04-000-020-10-01-00 supports differential-expansion measurement on mid-size to large steam turbine generators. Probe and extension-cable lengths must equal the connected Proximitor Sensor system length, while the final 00 identifies the No Approvals option.
| Manufacturer | Bently Nevada |
|---|---|
| System family | 3300 XL 25 mm Proximity Transducer System |
| Component | Side-exit proximity probe |
| Case style | Smooth 1.06 in diameter, side exit |
| Unthreaded length | 0.0 in |
| Overall case length | 2.0 in (50.8 mm) |
| Total probe length | 1.0 m (3.3 ft) |
| Probe cable | 75 Ω triaxial PFA-insulated FluidLoc cable |
| Armor | Flexible AISI 302 SST with PFA outer jacket |
| Probe tip material | Polyetheretherketone (PEEK) |
| Probe case material | AISI 304 stainless steel |
| Probe DC resistance | 6.2 ± 0.5 Ω |
| Minimum bend radius | 25.4 mm |
| Maximum pull strength | 330 N case-to-lead; 270 N at probe-to-extension connector |
| Probe operating and storage temperature | −35 to +200 °C |
| Probe short-term temperature | +250 °C maximum for less than 24 hours |
| Connector environmental condition | 100% condensing, non-submersible when connectors are protected |
| System length rule | Probe total length plus extension-cable length must equal Proximitor Sensor total length |
| System linear range | 12.7 mm (500 mils) under documented system conditions |
| System average scale factor | 0.787 V/mm (20 mV/mil) nominal |
| Approval option | 00 · No Approvals |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
The bracket needs to suit the smooth 1.06 in side-exit case, 2.0 in body length and required sensing position. Reviewing clamp support, target gap, cable departure and withdrawal clearance together helps avoid a mechanically unsuitable installation.
Its 1.0 m total probe length normally combines with a 4.0 m extension cable for a 5.0 m Proximitor Sensor or an 8.0 m extension cable for a 9.0 m Proximitor Sensor. All three components need to remain within the 3300 XL 25 mm family.
The probe has a published continuous operating and storage range of −35 to +200 °C and a short-term limit of +250 °C for less than 24 hours. The extension cable, connector area and Proximitor Sensor must each remain within their own limits.
The armor supplies mechanical protection, but it does not provide hazardous-area approval. The final 00 is the manufacturer’s No Approvals option, so classified projects require an appropriately approved configuration and matching delivered markings.
The complete transducer system can be assessed by moving the supported mounting arrangement to simulate shaft-collar motion. Alignment, target geometry, expected axial travel and the documented operating range should agree before the measurement is returned to service.
We would not recommend treating the probe as the sole containment boundary. It is designed to seal differential pressure between its tip and case, but probes are not pressure-tested before shipment; the installation must safely contain and control fluid if leakage occurs.
The supplied product is covered for 12 months under ApterPLC's sales terms. Keep the product nameplate, original packaging and transaction record available if warranty support is required.
|
