Selection
- Use the complete six-field probe code and confirm the 25 mm differential-expansion application.
- Check the 60 mm case reach and no-armor option against the actual machine installation.
Item NO.:
330851-02-000-060-10-00-CNOrder(MOQ):
1Goods Stock:
19Payment:
T/TLead Time：
In stockWeight:
0.08KGDimension:
21.5x23x3.5cmDescription:
Proximity SensorPrice:

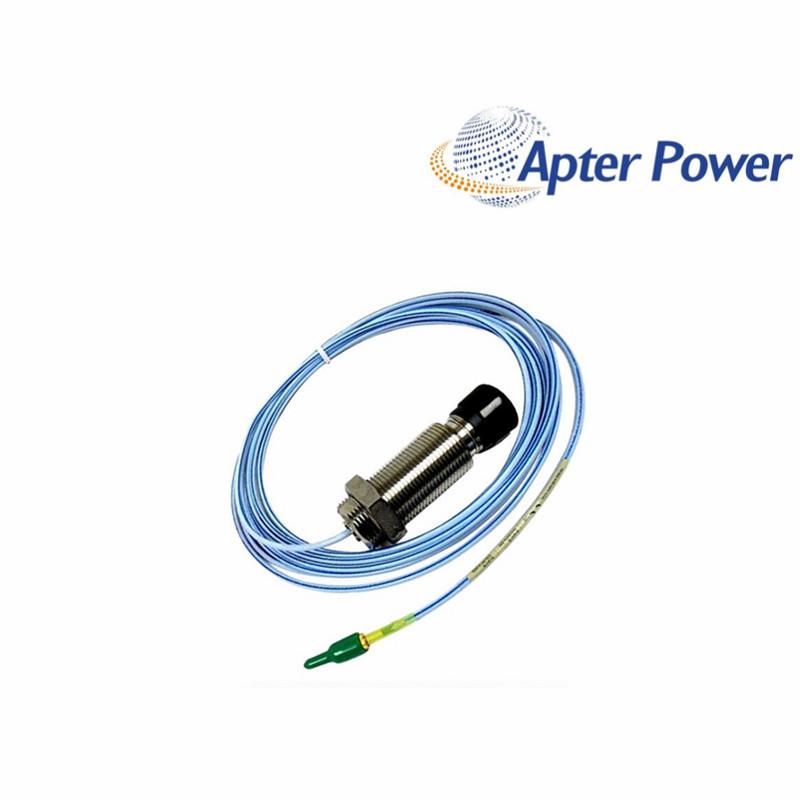

AskThe current complete page model adds the missing cable-option field: M30 × 2, 60 mm case, 1.0 m lead, no armor, CN suffix.
Large differential-expansion measurements call for a different probe geometry from the familiar 8 mm and 11 mm systems. Built around an M30 × 2 body, 330851-02-000-060-10-00-CN belongs to the 3300 XL 25 mm system and is intended to work as part of that matched measurement chain.
This configuration combines a 60 mm case with zero unthreaded length and a 1.0 m lead. The code 00 cable option on 330851-02-000-060-10-00-CN is unarmored, so the planned route should provide the mechanical and environmental protection required by the installation.
The full suffix matters when the unit is ordered or received. For 330851-02-000-060-10-00-CN, the CN ending is retained exactly as the country-specific option shown on the page; its meaning should not be expanded beyond the supplied-unit markings and official project documentation.
The complete 330851 probe format includes a separate armor field; code 00 specifies no armor. Use the full current-page model so the cable construction is not lost from the order.
It belongs to the 25 mm system used for large-range displacement tasks such as turbine differential expansion. An 8 mm vibration system is normally a different measurement architecture.
Compare readings at the same machine thermal condition, then review gap, target alignment and configured scale. Temperature state can change the real measurement, so a cold-to-hot comparison is not a valid probe-only test.
The M30 × 2 mount, 60 mm case and available adjustment must suit the machine bracket. Confirm the large-probe target geometry before treating an out-of-range signal as an electrical fault.
Provide external mechanical protection and support while preserving the required bend radius. If the route is exposed to abrasion or vibration, correct the route before commissioning the differential-expansion channel.
Keep CN exactly in the model and compare the delivered-unit markings with the purchase record. The reviewed family datasheet does not assign a separate published technical meaning to this suffix.
Supplied products are covered for 12 months under ApterPLC sales terms. Keep the complete nameplate, original packaging and transaction record so the exact unit and revision can be identified during support.
Support: sales1@apterpower.com · +8618020776782
Use this document to review the 3300 XL 25 mm probe ordering structure, M30 × 2 geometry, 60 mm case, 1 m lead, system specifications and dimensional drawings. The CN suffix is not interpreted beyond the official evidence.
