System length
Match only with 25 mm probe and extension cable totaling 9.0 m.
Item NO.:
330850-90-CNOrder(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.22KGDimension:
8x6x6.5cmDescription:
SENSORPrice:

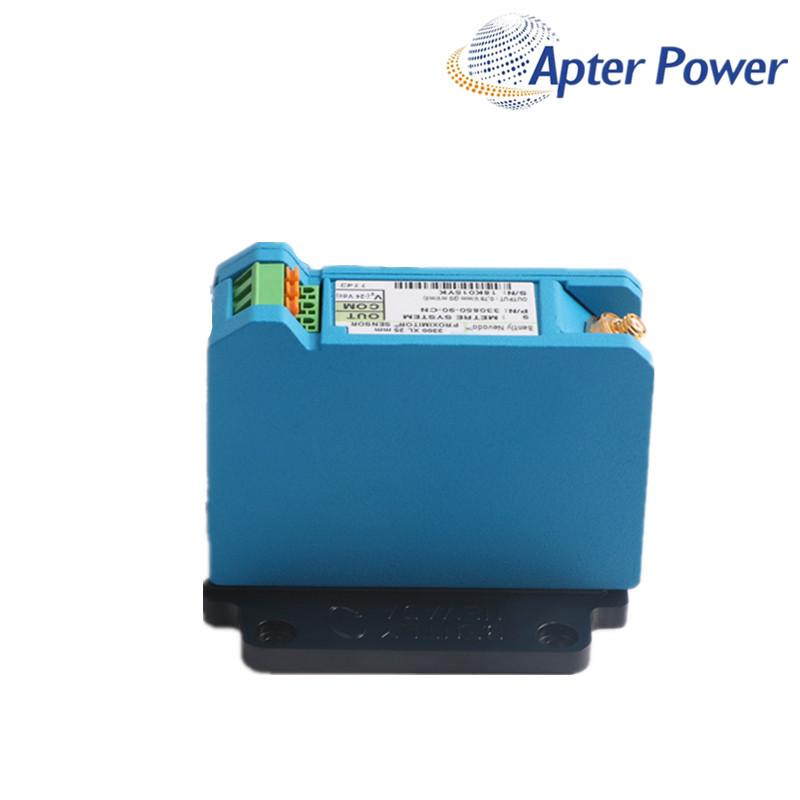

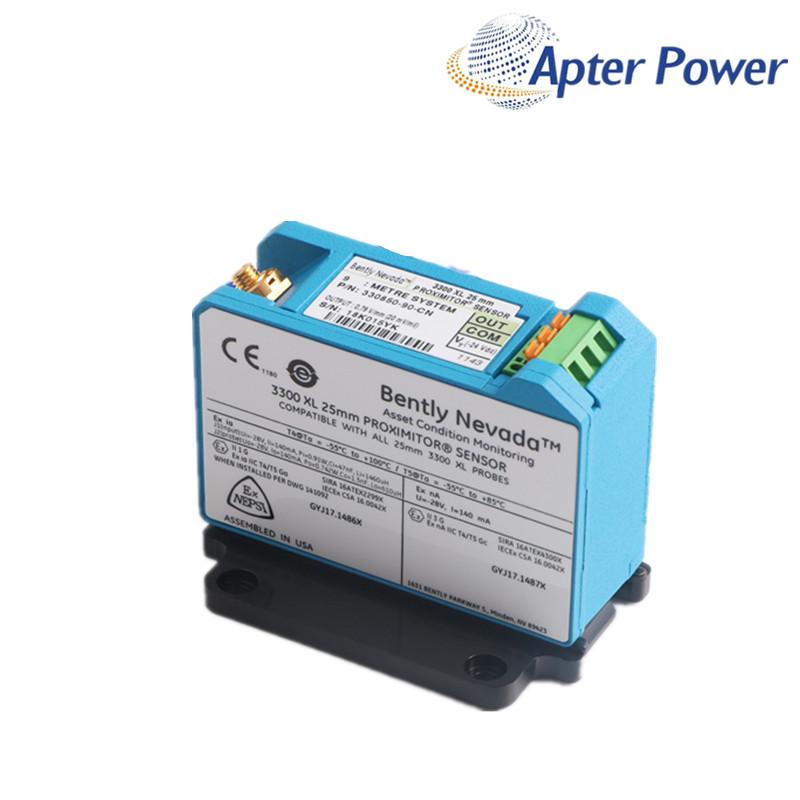

Ask330850-90-CN is the complete Bently Nevada ordering code for this configuration. A panel-mount 25 mm Proximitor Sensor for a 9.0 m transducer system with China country-specific approval.
For 330850-90-CN, confirm the coded mounting geometry, cable or lead construction, connector option and system length against the installed measurement chain.
Before quoting 330850-90-CN, ApterPLC checks the full nameplate and connected-component labels so a visually similar part is not treated as an exact replacement.
Match only with 25 mm probe and extension cable totaling 9.0 m.
Confirm the panel-mount format and cabinet clearance.
Verify the differential-expansion target geometry before commissioning.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 25 mm |
| Component | Proximitor Sensor |
| System length / mounting | 90 · 9.0 m system, panel mount |
| Country-specific approval | CN · China option |
| Measurement role | Differential expansion measurement system |
| Nominal sensitivity | 0.787 V/mm (20 mV/mil) |
| Nominal linear range | 12.7 mm (500 mils) |
| Frequency response | 0 to 2.7 kHz (+0 / -3 dB) typical |
| Reference target | Bently Nevada AISI 4140 steel |
| Field wiring | Up to 305 m between sensor and monitor |
| Sensor material | A380 aluminum |
| Sensor mass | 255 g typical |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A panel-mount 25 mm Proximitor Sensor for a 9.0 m transducer system with China country-specific approval.
No. The Proximitor Sensor, probe and extension cable must be matched as one measurement chain.
Confirm the panel-mount format and cabinet clearance.
Verify the differential-expansion target geometry before commissioning.
Send a clear nameplate photo for 330850-90-CN, the complete order code, connected-component labels and photos of the installed mounting or cable route.
ApterPLC provides a one-year warranty on this item, with a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names and trademarks are used for identification only.
Use the model-relevant document below to review the configuration, installation details and system requirements for 330850-90-CN.
|
