Probe diameter and measurement family.
Item NO.:
330850-50-05Order(MOQ):
1Goods Stock:
12Payment:
T/TLead Time：
In stockWeight:
0.1KGDimension:
20.3x22.2x3.5cmDescription:
PROXIMITY SENSORPrice:
AskThis is the 5.0 m panel-mount 25 mm extended-range version with multiple approvals. Confirm target geometry and the complete DE measurement chain.

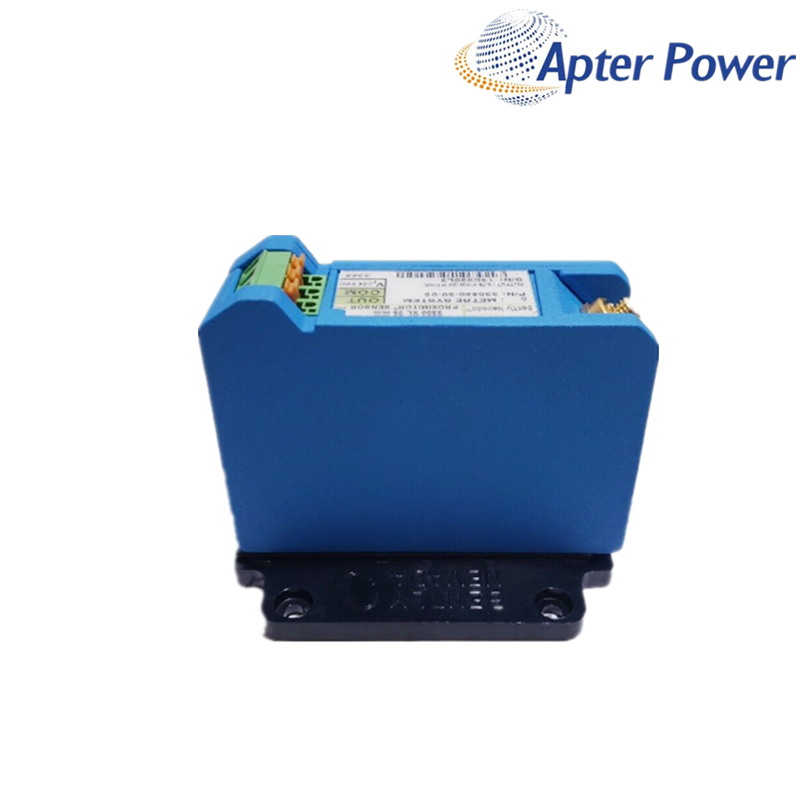

Bently Nevada 330850-50-05 is a 3300 XL 25 mm Proximitor Sensor configured for a 5.0 m total transducer system. It provides panel-mount hardware and carries the multiple approvals (csa, atex, iecex).
The Proximitor Sensor is one part of a calibrated chain that also includes the matching probe and extension cable where applicable. For reliable extended-range differential expansion measurement, the family, total electrical length and connector arrangement must be reviewed together.
For replacement work, compare the complete 330850-50-05 label, mounting method and approval suffix with the installed unit. Photos of the probe, connectors and cabinet arrangement help prevent a visually similar but electrically incompatible selection.
Probe diameter and measurement family.
Matched total electrical system length.
Cabinet installation arrangement.
Nameplate and document option.
This is the 5.0 m panel-mount 25 mm extended-range version with multiple approvals. Confirm target geometry and the complete DE measurement chain.
| Manufacturer | Bently Nevada |
|---|---|
| Exact model | 330850-50-05 |
| Product family | 3300 XL 25 mm Proximity Transducer System |
| Component role | Proximitor Sensor / signal conditioner |
| Total system length | 5.0 m |
| Mounting option | Panel-mount hardware |
| Approval option | Multiple approvals (CSA, ATEX, IECEx) |
| Nominal scale factor | 0.787 V/mm (20 mV/mil) |
| Linear range | 12.7 mm (500 mil) |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Capture the complete label, mounting arrangement, probe family, total system length and destination approval requirement.
Inspect connectors, cable route, cabinet clearance, target surface and grounding. Do not mix unmatched system families.
Verify wiring and supply against the official manual, then confirm the static gap and channel response with site procedures.
Differential expansion measurement on mid-size to large steam turbine generators using a matched 3300 XL 25 mm transducer system.
Matched transducer-chain selection and maintenance replacement planning, with the exact order code verified before purchase.
Compare the full model, 5.0 m total length, panel-mount hardware, probe family and connector arrangement. A matching product family alone is not enough.
Inspect the probe, extension cable, connectors and target condition. A damaged or mismatched component elsewhere in the chain can produce the same symptoms as a failed Proximitor Sensor.
It should not be treated as a general cross-family sensor. Use the matching 3300 XL 25 mm probe and cable combination defined by the manufacturer.
This version uses panel-mount hardware. Confirm space, fasteners or rail clearance, grounding and cable bend radius in the existing cabinet.
The 05 option identifies multiple approvals. Confirm the nameplate and documentation required by the destination site with the quotation.
Send the complete label, quantity, destination country and photos of the installed probe, connectors and mounting arrangement. Include any required certificate or document list.
We compare order code, installation and signal-chain details before quotation.
Commercial terms and available traceability are confirmed with the offer.
Availability and transport options are coordinated around the maintenance schedule.
ApterPLC supplies this product with a one-year limited warranty. Final scope, start date and claim handling follow the confirmed quotation, sales agreement and supplied warranty terms.
Keep the complete 330850-50-05 label, order reference, fault description and clear photos of the installed product and signal chain. Do not dismantle or alter the unit before receiving return instructions.
This official Baker Hughes / Bently Nevada document provides the product-family specifications, ordering information, mounting options and dimensional context used to verify 330850-50-05.
Exact version: 5.0 m · Panel-mount hardware · Multiple approvals (CSA, ATEX, IECEx)
