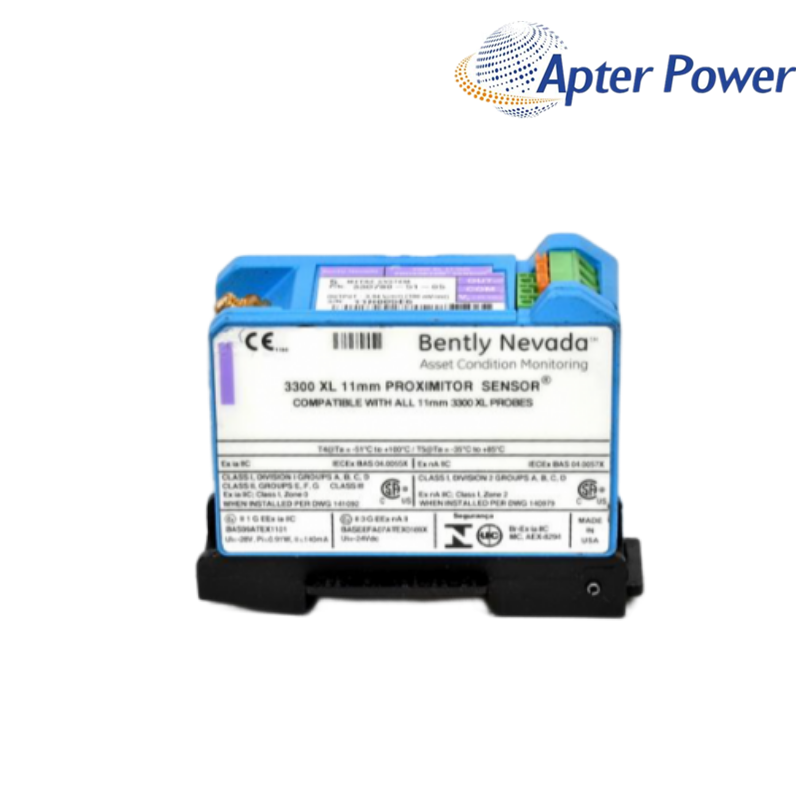

11 mm Proximitor Sensor
Item NO.:
330780-X1-CNOrder(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
1.9KGDimension:
44x33x8.8cmDescription:
3300 XL 11 MM PROXIMITOR SENSORPrice:
Ask
Electronic interface between a matched 11 mm probe-and-cable system and the monitoring channel.
Bently Nevada 330780-X1-CN belongs to the 3300 XL 11 mm Proximity Transducer System. Electronic interface between a matched 11 mm probe-and-cable system and the monitoring channel.
11 mm Proximitor Sensor
Label-controlled option
Label-controlled suffix
| Component role | Proximitor Sensor / signal conditioner |
|---|---|
| Compatible family | 3300 XL 11 mm probe and extension cable |
| Scale factor | 3.94 V/mm (100 mV/mil) nominal |
| Linear range | 4.0 mm (160 mil) family range |
| Power requirement | -17.5 to -26 Vdc without barriers |
| Maximum current | 12 mA |
| Output resistance | 50 Ω |
| Mount / system length | Verify X1 from complete label |
| Approval suffix | CN — verify supplied document package |
| Current backend stock | 16 |
| Current backend weight | 1.9KG |
| Current backend dimensions | 44x33x8.8cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Capture the installed identity and mechanical context before disconnection.
Compare the exact family, length, mounting and connector details.
Review the receiving system, scale and commissioning response.
Include every order-code segment, manufacturer nameplate and approval marking.
Show the connected probe, cable, sensor, transmitter, rack module and receiving input as applicable.
Current backend stock, packed weight and dimensions remain unchanged until new warehouse evidence is supplied.
Photograph the complete label and installed mounting arrangement. X1 is not decoded in the public ordering table, so preserve the exact code instead of choosing from enclosure appearance.
Check the -17.5 to -26 Vdc supply, confirm the connected probe and extension cable belong to the 3300 XL 11 mm family, and verify the receiving channel expects this sensor’s output.
No substitution should be assumed. This sensor belongs to the 3300 XL 11 mm system; use a matched 11 mm probe-and-cable chain with the required system length.
Confirm the channel is configured for the 11 mm family’s nominal 100 mV/mil scale factor and 4.0 mm family linear range before commissioning the machine baseline.
Compare the complete installed label with the offered unit and approval documents. Do not infer the certification or regional package from CN alone.
Complete-label comparison before quotation.
Support for maintenance and project spares.
Quotation, delivery and after-sales communication.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the product label and complete order reference.
Add connector or terminal photos and associated signal-chain labels.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 11 mm Datasheet 146256 provides the family specifications, ordering table and installation context used for this review.
Exact-version note: 3300 XL 11 mm family verified · X1 and CN are not decoded in the public ordering table · complete-label review required
