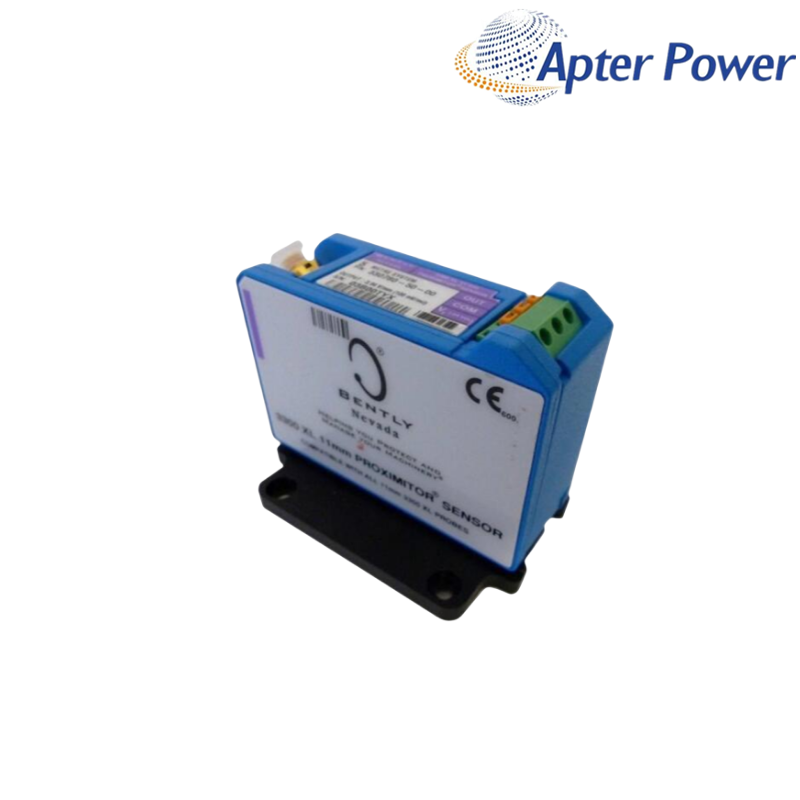

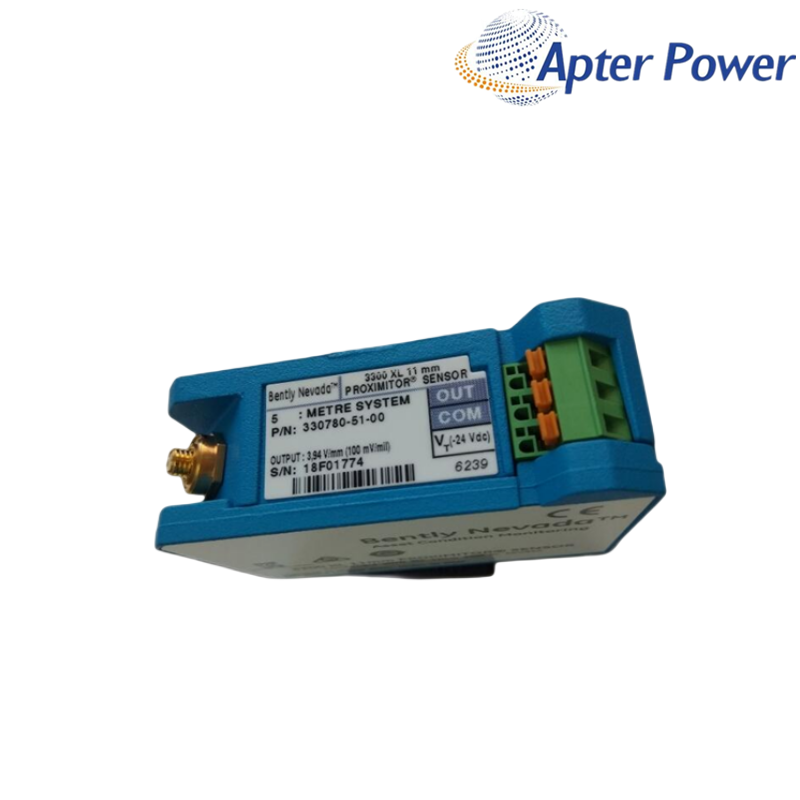

11 mm Proximitor Sensor
Item NO.:
330780-50-CNOrder(MOQ):
1Goods Stock:
16Payment:
T/TLead Time：
In stockWeight:
1.9KGDimension:
44x33x8.8cmDescription:
PROXIMITY PROBESPrice:
AskA panel-mount Proximitor Sensor for a 5.0 m 3300 XL 11 mm system; CN remains a complete-label-controlled suffix.
5.0 m total system · panel mount · 11 mm probe-and-cable input · CN label-controlled
330780-50-CN is a 3300 XL 11 mm Proximitor Sensor in the 3300 XL 11 mm Proximity Transducer System. A panel-mount Proximitor Sensor for a 5.0 m 3300 XL 11 mm system; CN remains a complete-label-controlled suffix.
Its documented configuration is 5.0 m total system · panel mount · 11 mm probe-and-cable input · CN label-controlled. These order-code choices define how the component fits the signal path and should be reviewed together rather than by appearance alone.
For maintenance or procurement, 330780-50-CN should be matched to the installed system role, connection architecture and complete manufacturer label. ApterPLC can review those details before quotation.
The selection identity for 330780-50-CN is built from the full code and its verified system role.
11 mm Proximitor Sensor
5.0 m panel mount
Verify complete label
Build a matched 5.0 m input chain.
Condition the eddy-current signal at the panel mount.
Use the documented displacement or vibration output scale.
| Product family | 3300 XL 11 mm Proximity Transducer System |
|---|---|
| Component role | Proximitor Sensor / signal conditioner |
| Total system length | 5.0 m |
| Mounting | Panel mount |
| Family sensitivity | 3.94 V/mm (100 mV/mil) nominal |
| Family linear range | 4.0 mm (160 mil) |
| Power requirement | -17.5 to -26 Vdc without barriers |
| Maximum current | 12 mA |
| Output resistance | 50 Ω |
| Approval suffix | CN — verify from nameplate and supplied documents |
| Payment | T/T |
| Goods Stock | 16 |
| Weight | 1.9KG |
| Dimension | 44x33x8.8cm |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
This Proximitor Sensor belongs to the 3300 XL 11 mm family. Mixing probe families changes the calibrated measurement chain, so keep the 11 mm probe and cable set together.
It is the combined electrical length of the matched 11 mm probe lead and extension cable. Confirm both labels before choosing the replacement sensor.
The 50 option specifies a 5.0 m panel-mount execution. Compare the mounting footprint and wiring arrangement instead of substituting a DIN-mount sensor only by electrical range.
The public order table does not decode CN. Use the exact nameplate and supplied documents to determine whether the offered unit meets the project certification requirement.
An 8 mm component or a non-5.0 m cable combination changes the intended sensitivity and range. Re-establish the complete 11 mm chain before adjusting the receiving channel.
Provide the Proximitor nameplate, panel mounting photos and both probe and extension-cable labels. This confirms the 5.0 m 11 mm chain and the document-controlled suffix.
Complete labels are compared with the official order-code structure.
Connected probes, cables, I/O and monitoring roles are reviewed together.
Logistics and project timing are confirmed with the commercial offer.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope and available remedy follow the confirmed quotation and sales agreement.
Keep the full 330780-50-CN label and order reference.
Add connector, mounting and associated signal-path photos.
Describe the observed symptom and operating context clearly.
Baker Hughes 3300 XL 11 mm Proximity Transducer System Datasheet 146256 is the official family document used to verify this product identity, order-code fields and applicable technical context.
Document access: Request the verified manufacturer datasheet for the exact model offered.
