Family identity
Keep the extension cable inside the 3300 XL 11 mm system family.
Item NO.:
330730-040-01-00Order(MOQ):
1Goods Stock:
8Payment:
T/TLead Time：
In stockWeight:
0.4KGDimension:
27x27x2cmDescription:
CABLEPrice:

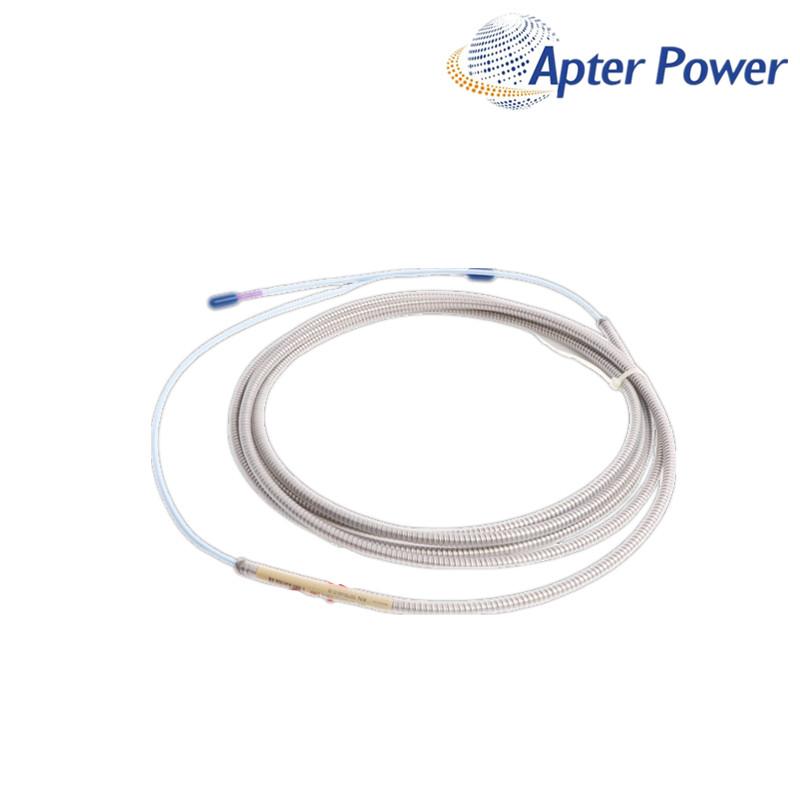

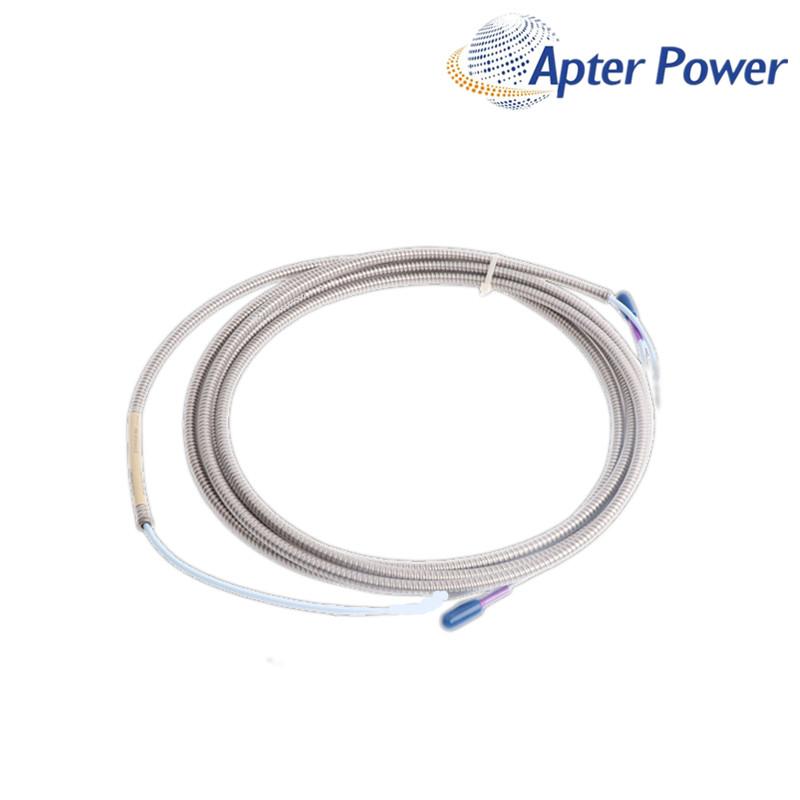

AskA 4.0 m armored extension cable for the 3300 XL 11 mm proximity transducer system, ordered without approvals.
330730-040-01-00 is an extension cable for the Bently Nevada 3300 XL 11 mm proximity transducer system. The 040 field specifies a 4.0 m cable length.
Option 01 identifies the armored cable construction, and the final 00 is the published no-approval-required selection.
Select the cable as part of the complete 11 mm chain. Connector appearance does not establish compatibility with another Bently Nevada transducer family.
Keep the extension cable inside the 3300 XL 11 mm system family.
Verify armor bend radius, connector access and routing space.
Add probe lead and extension-cable length to match the sensor.
| Manufacturer | Bently Nevada |
|---|---|
| Component | Extension cable |
| Product family | 3300 XL 11 mm proximity transducer system |
| Cable length | 4.0 m |
| Cable construction | Armored extension cable |
| Approval option | 00 — not required |
| System frequency response | 0 to 8 kHz |
| Typical system applications | Radial vibration and axial position measurements |
| Selection boundary | Probe + extension cable + Proximitor Sensor must form a matched 11 mm chain |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Match the 11 mm system family, 4.0 m length, armor option and connected probe and sensor labels. Record the mounting position, cable route and all connected component labels instead of selecting by appearance.
Provide the complete nameplate, full product view, mounting point, both connector ends and the labels of the connected cable, sensor or monitor module.
Not on connector fit alone. Linear range, system length, temperature class and approval option must be checked against the complete order code.
Check channel power or configuration, connector locking, cable bends and shielding, then confirm that the probe, cable and sensor belong to one matched system.
Compare the carton and product labels, complete suffix, connector and cable condition, and supplied approval or inspection documents with the purchase order.
Send the complete model, quantity, required delivery date, destination, installation photos and connected component models, plus any available drawing or equipment list.
Share the exact nameplate, mounting dimensions, cable route, connected component labels and approval documents. ApterPLC can then prepare a model-focused quotation without treating connector fit or a family name as proof of interchangeability.
ApterPLC provides a one-year warranty on this item, giving buyers a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names, images and trademarks are used for identification only.
The English manufacturer document below is hosted by ApterPLC for product selection and technical review.
3300 XL 11 mm Proximity Transducer System Datasheet · 146256 Rev. TOpen the English manufacturer datasheet for cable ordering information, system specifications and dimensions.Related Tags :
