Length match
Add 4.0 m to the probe lead and match the Proximitor Sensor length.
Item NO.:
330730-040-00-05Order(MOQ):
1Goods Stock:
11Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
8x8x15cmDescription:
EXTENSION CABLEPrice:

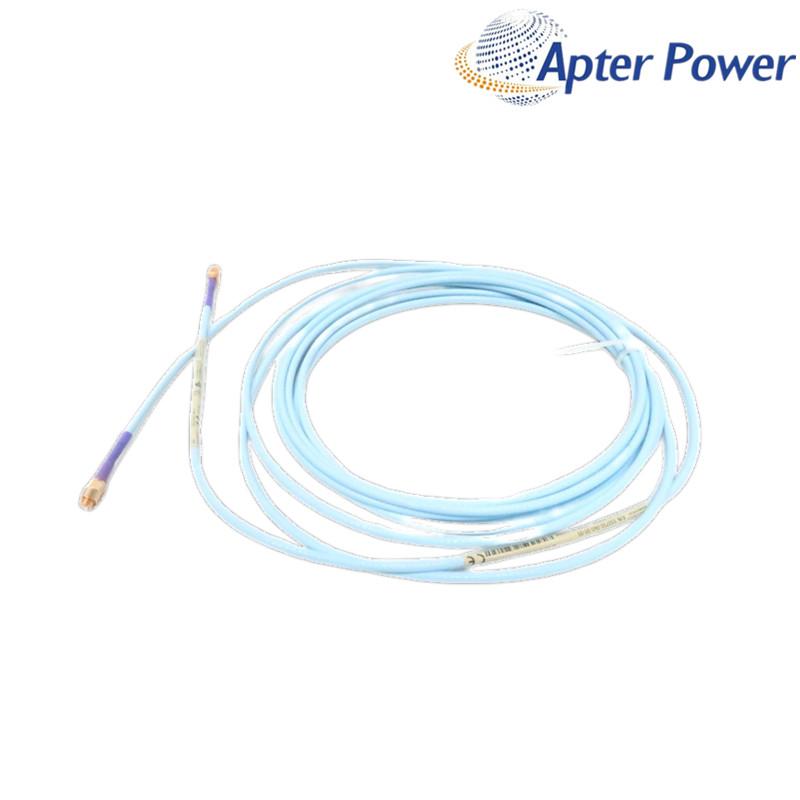

Ask330730-040-00-05 is the complete Bently Nevada ordering code for this configuration. A 4.0 m standard extension cable for the 3300 XL 11 mm system with miniature coaxial connectors and multiple approvals.
For 330730-040-00-05, confirm the coded mounting geometry, cable or lead construction, connector option and system length against the installed measurement chain.
Before quoting 330730-040-00-05, ApterPLC checks the full nameplate and connected-component labels so a visually similar part is not treated as an exact replacement.
Add 4.0 m to the probe lead and match the Proximitor Sensor length.
Protect both connectors and maintain the minimum bend radius.
Retain the 05 multiple-approvals documentation with the order.
| Manufacturer | Bently Nevada |
|---|---|
| Product family | 3300 XL 11 mm |
| Component | Extension cable |
| Cable length | 040 · 4.0 m |
| Cable option | 00 · standard cable |
| Agency approval | 05 · multiple approvals |
| Cable type | 75 Ω triaxial FEP-insulated cable |
| Connector arrangement | Miniature male and female coaxial connectors |
| 4.0 m core resistance | 1.0 ± 0.25 Ω |
| 4.0 m jacket resistance | 0.3 ± 0.1 Ω |
| Capacitance | 69.9 pF/m typical |
| Minimum bend radius | 25.4 mm |
| System rule | Probe plus extension cable must equal Proximitor Sensor system length |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
A 4.0 m standard extension cable for the 3300 XL 11 mm system with miniature coaxial connectors and multiple approvals.
No. Confirm the complete order code, cable length, armor or cable option and approval suffix.
Protect both connectors and maintain the minimum bend radius.
Add 4.0 m to the probe lead and match the Proximitor Sensor length.
Send a clear nameplate photo for 330730-040-00-05, the complete order code, connected-component labels and photos of the installed mounting or cable route.
ApterPLC provides a one-year warranty on this item, with a clear support path after delivery.
Apter sells industrial automation parts through independent channels and is not an authorized distributor, dealer or representative of the brands shown. Product names and trademarks are used for identification only.
Use the technical documents below to review the configuration, installation details and system requirements relevant to 330730-040-00-05.
|
