Build five metres

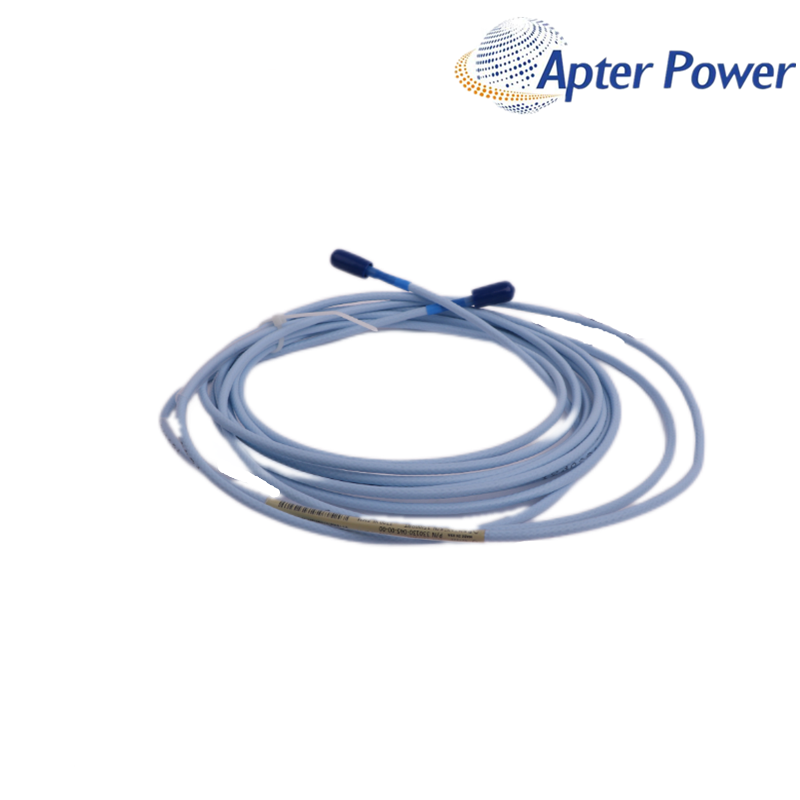

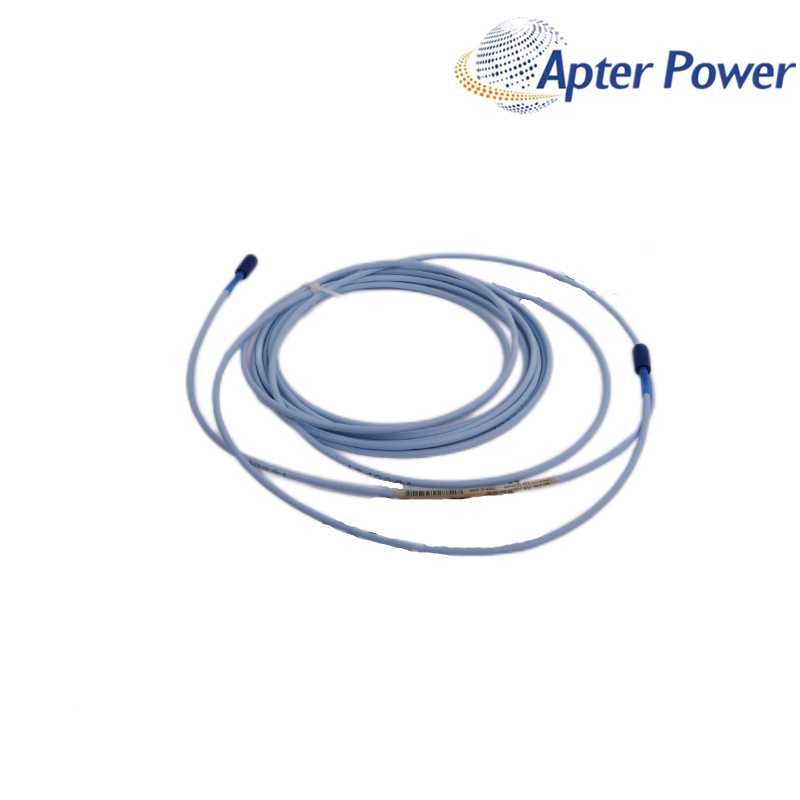

Pair the 4.0 m extension cable with the supported 1.0 m probe lead and a five-metre Proximitor Sensor.
Item NO.:
330730-040-00-00Order(MOQ):
1Goods Stock:
28Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
20.5x22.4x3.3cmDescription:
PROXIMITY PROBEPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context
A four-metre extension cable normally serves one clear task: completing a five-metre transducer chain when the supported probe has a one-metre lead. 330730-040-00-00 is the standard-cable selection for that planned combination.
The cable carries the probe signal between ClickLoc connections and does not create an independent measurement channel. Its electrical role depends on the exact probe, the five-metre Proximitor Sensor and the complete length being matched before commissioning.
Route it without crushing, tight bends or connector loading. If four metres does not reach by the approved route, do not splice it or chain another extension; revise the route or select official lengths that preserve the calibrated system total.
Selection and installation decisions
Pair the 4.0 m extension cable with the supported 1.0 m probe lead and a five-metre Proximitor Sensor.
Inspect both ClickLoc surfaces, seat them fully and avoid tension at the joint.
Do not splice the cable or add a second extension to solve a route shortage.
Official configuration and supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 11 mm proximity transducer system |
| Product type | Extension cable |
| Cable length | 040 - 4.0 m (13.1 ft) |
| Cable option | 00 - standard cable |
| Agency approval selection | 00 - not required |
| System pairing | Used with supported 11 mm probe and five-metre Proximitor Sensor when component lengths total 5.0 m |
| Connector system | Miniature coaxial ClickLoc system |
| System scale factor / range | 3.94 V/mm (100 mV/mil); 4.0 mm (160 mils) under documented system conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Model-relevant engineering themes
Plan the path, bend clearance, clamps and connector access before pulling the cable; do not use the connector as a pulling point.
A wrong cable total, contaminated ClickLoc joint, damaged insulation or disturbed probe gap can shift the complete channel and should be checked before recalibration.
Stop and release boundary
Cable reach is not the selection criterion by itself. Release the part only when 4.0 m completes the official system total and the standard cable can be protected along the full route.
Supported user task
Carries the proximity-probe signal across a protected route in a matched 3300 XL 11 mm vibration or displacement measurement chain.
Buyer, installer and engineer situations
Yes, when both are supported 3300 XL 11 mm components and the selected Proximitor Sensor is the five-metre version. Verify all three labels before installation.
Do not splice it or add another extension cable. Re-plan the route or select the official probe and cable lengths that produce the required total system length.
Keep both mating surfaces clean, align them correctly and seat them finger-tight until the connector clicks. Protect the completed joint from mechanical load and the site environment.
A changed total length, disturbed probe gap, incompletely seated connector, cable damage, target change or field-wiring fault can alter the chain. Correct those causes before changing monitor scaling.
Reject or quarantine it if the full model, four-metre length, connector condition or cable construction differs from the order, or if shipping damage is visible.
Provide the probe and Proximitor labels, required total length, route drawing, connector-protection need, quantity, destination and clear photographs of the installed components.
