Match the M16 port
Confirm thread pitch, engagement, locknut space and the 70 mm case reach on the drawing.
Item NO.:
330709-000-070-10-02-00Order(MOQ):
1Goods Stock:
27Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2.8x2.2x114cmDescription:

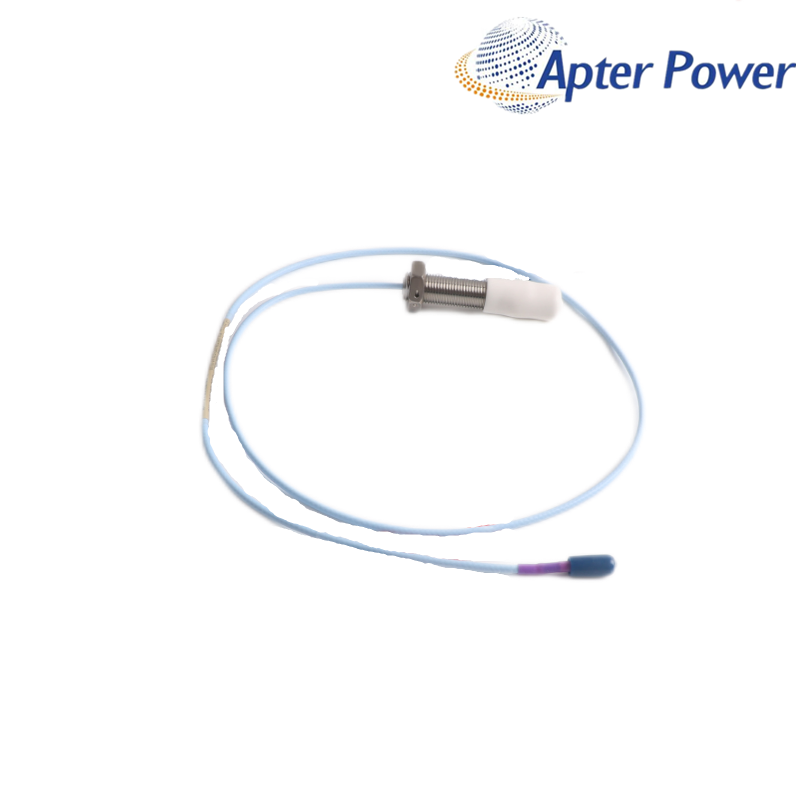

PROXIMITY TRANSFUCER SYSTEMPrice:
AskSend the complete nameplate, installed system context, quantity and destination. We support new original, discontinued and difficult-to-source industrial parts.
Manager: JimPei
Exact-model engineering context
A larger metric mounting port may be useful where the machine drawing specifies M16 x 1.5 rather than the M14 body used by other 11 mm probes. 330709-000-070-10-02-00 provides that thread with zero unthreaded length and a 70 mm overall case.
The longer case must be reviewed for reach, engagement and rear clearance; matching the thread alone is not enough. Its one-metre standard lead terminates in a miniature ClickLoc connector without a factory-installed protector.
Complete the selected five- or nine-metre system with the official extension cable and Proximitor Sensor. Before startup, confirm target material, gap, routing, connector seating and the complete component labels.
Selection and installation decisions
Confirm thread pitch, engagement, locknut space and the 70 mm case reach on the drawing.
Use the supported extension cable required by the five- or nine-metre Proximitor Sensor.
Leave bend and access clearance and protect the option-02 ClickLoc joint from contamination and load.
Official configuration and supply terms
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 3300 XL 11 mm proximity transducer system |
| Probe thread | M16 x 1.5 |
| Unthreaded length | 000 - 0 mm |
| Overall case length | 070 - 70 mm |
| Total probe length | 10 - 1.0 m (3.3 ft) |
| Connector and cable | 02 - miniature coaxial ClickLoc connector, standard cable |
| Agency approval selection | 00 - not required |
| System scale factor | 3.94 V/mm (100 mV/mil) under documented system conditions |
| Linear range | 4.0 mm (160 mils) under documented system conditions |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Model-relevant engineering themes
An M16 thread does not establish electrical compatibility. Match the exact probe, extension cable, Proximitor Sensor and monitor input from official records and labels.
Verify the 70 mm case reach, target clearance, connector access and cable bend before the machine is opened for installation.
Stop and release boundary
Do not approve this model by thread diameter alone. The 70 mm body, zero unthreaded length, target position, connector access and complete electrical chain must all fit the installed design.
Supported user task
The model belongs to the longer-range 3300 XL 11 mm family used for supported vibration and displacement measurements when the M16 x 1.5 geometry fits the machine.
Buyer, installer and engineer situations
No. Confirm the M16 x 1.5 pitch, zero unthreaded length, 70 mm case, target clearance, lead length and supported electrical chain. A matching thread diameter alone is insufficient.
Check case and connector clearance, cable bend space, locknut access and the future removal path. Use the drawing to confirm that the 70 mm case does not interfere with nearby parts.
Use only the supported extension cable that completes the selected five- or nine-metre Proximitor Sensor length. Do not splice the lead or connect multiple extension cables.
Check sensor power and field wiring, then the component labels, ClickLoc seating, cable condition, target material and probe gap. Stop before replacing the monitor if the chain itself is not verified.
No. Option 02 uses standard cable and a ClickLoc connector without the protector. Plan suitable manufacturer-supported protection for the installed environment.
Include the full model, M16 mounting drawing, target material, required system length, existing cable and sensor labels, route conditions, quantity and destination.
ApterPLC supply capability
New original supply: Quality-focused sourcing and exact-model checks help protect the purchase decision.
Current, discontinued and scarce products: Our supply network supports routine and difficult-to-source automation parts.
Responsive after-sales service: We assist with delivery coordination, receipt questions and post-purchase technical communication.
Buyer search terminology
Search note: Common spelling, spacing and separator variants are listed for discovery only. Use the exact Product Model above for quotation and ordering.
Apter provides a 1-year warranty on every item we sell.
Our free 1-year warranty makes every Apter purchase a dependable, reliable investment in your company's future.
Apter sells industrial automation parts including new and discontinued products, and purchases such featured products through independent channels. Apter is not an authorized distributor, dealer or representative of the products featured on this site. All product names/product images, trademarks, brands and logos used on this website are the property of their respective owners. Product descriptions, depictions or sales with these names, images, trademarks, brands and logos are for identification purposes only and do not imply any affiliation or authorization to any rights holder.
The official manufacturer publication was reduced only by removing pages unrelated to this exact model. The cover, identity, scope, required preceding context and useful model pages remain in their original order as complete pages.
Source: Bently Nevada 146256 Rev. T
Retained official pages: 1, 2, 3, 4, 5, 6, 7, 10, 11, 23, 26
