Verify the 60 mm case reaches the target without exceeding thread engagement limits.
Item NO.:
330709-000-060-10-02-00Order(MOQ):
1Goods Stock:
13Payment:
T/TLead Time：
In stockWeight:
0.14KGDimension:
2x18.7x12.8cmDescription:
PROXIMITY PROBESPrice:

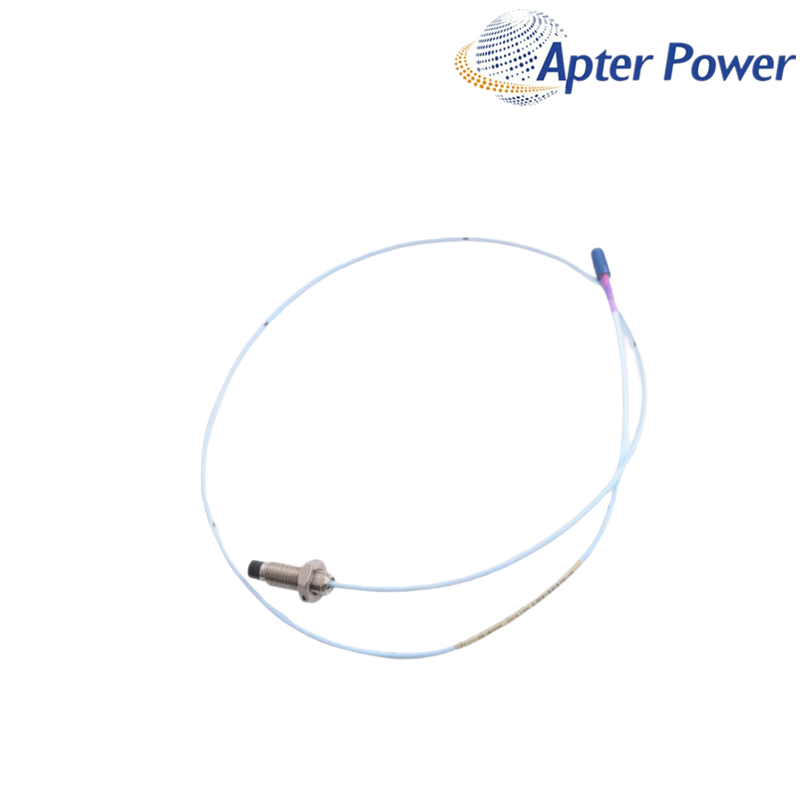

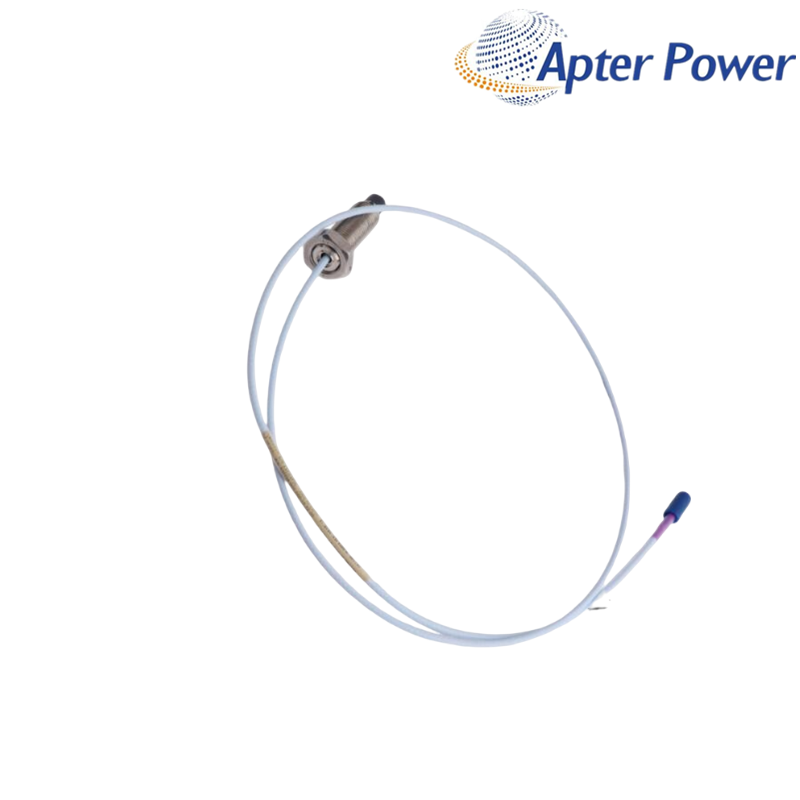

AskAn M16 x 1.5 unarmored probe with a 60 mm case, 1.0 m standard lead and no-approval option for a matched 11 mm proximity chain.
0 mm unthreaded · 60 mm case · 1.0 m lead · standard cable · option 00330709-000-060-10-02-00 is an unarmored M16 x 1.5 probe in the 3300 XL 11 mm proximity transducer family. Its 60 mm case and 1.0 m lead define the installed geometry and cable contribution.
In a matched 5.0 m or 9.0 m chain, 330709-000-060-10-02-00 works with the corresponding extension cable and Proximitor Sensor. The 11 mm family supports position, vibration and phase-reference measurements where its longer linear range is required.
For replacement planning, use 330709-000-060-10-02-00 as the complete order reference and compare the probe label, mounting reach, total electrical length and approval field.
M16 x 1.5, without armor
0 mm unthreaded
60 mm case
1.0 m lead
Standard ClickLoc cable
Approval not required
| VERIFIED TECHNICAL DATA | |
|---|---|
| Manufacturer | Bently Nevada |
| Product family | 3300 XL 11 mm proximity system |
| Component | Unarmored proximity probe |
| Probe thread | M16 x 1.5 |
| Unthreaded length | 0 mm |
| Overall case length | 60 mm |
| Total lead length | 1.0 m |
| Connector / cable | ClickLoc; standard cable |
| Family linear range | 4.0 mm (160 mil) |
| Family scale factor | 3.94 V/mm (100 mV/mil) |
| Recommended gap | 2.5 mm (100 mil) |
| Minimum bend radius | 25.4 mm |
| Approval option | 00 - not required |
| SUPPLY & LOGISTICS | |
| Place of shipment | Xiamen, China |
| Delivery Time | 1-3 days |
| Quantity | 100% New Original |
| Minimum Order Quantity | 1pc |
Verify the 60 mm case reaches the target without exceeding thread engagement limits.
Match the probe lead and extension cable to the 5.0 m or 9.0 m Proximitor Sensor.
Restore the documented target material and installed probe gap.
Keep the complete six-field order code in the quotation and maintenance record.
The official order structure includes a final approval field. The existing backend record uses 00, so the complete no-approval execution is retained.
Compare the M16 x 1.5 thread, 0 mm unthreaded section and 60 mm case with the installed bracket and target position.
Choose the cable only after confirming whether the installed 11 mm Proximitor Sensor expects a 5.0 m or 9.0 m total system length.
Confirm the entire 11 mm chain, total electrical length, target material, probe gap and monitor scaling before changing calibration settings.
The final 00 field means approvals are not required in the documented order table. Use an approved execution when the project requires certificates.
Send the complete probe label, mounting reach, extension-cable label and Proximitor Sensor label.
Complete labels and order fields are checked before quotation.
Probe, cable, rack and monitoring roles are reviewed together.
Commercial terms, documents and delivery are confirmed in writing.
Coverage begins on the shipment date unless the confirmed quotation states otherwise. Scope, exclusions and available remedy follow the written quotation and sales agreement.
Provide the complete 330709-000-060-10-02-00 label and order reference.
Add mounting, connector, rack and signal-chain photos.
Describe the symptom, operating state and first occurrence.
Include the applicable sales document and shipment date.
Share the complete product label and tell us whether you need a datasheet, user manual, wiring diagram or other technical document. Installed-system details can help us identify the most relevant available manufacturer material.
Our team will review the available documents and help match the closest useful file for 330709-000-060-10-02-00.
